Wooden Camera D-Box for ARRI ALEXA Mini/Mini LF

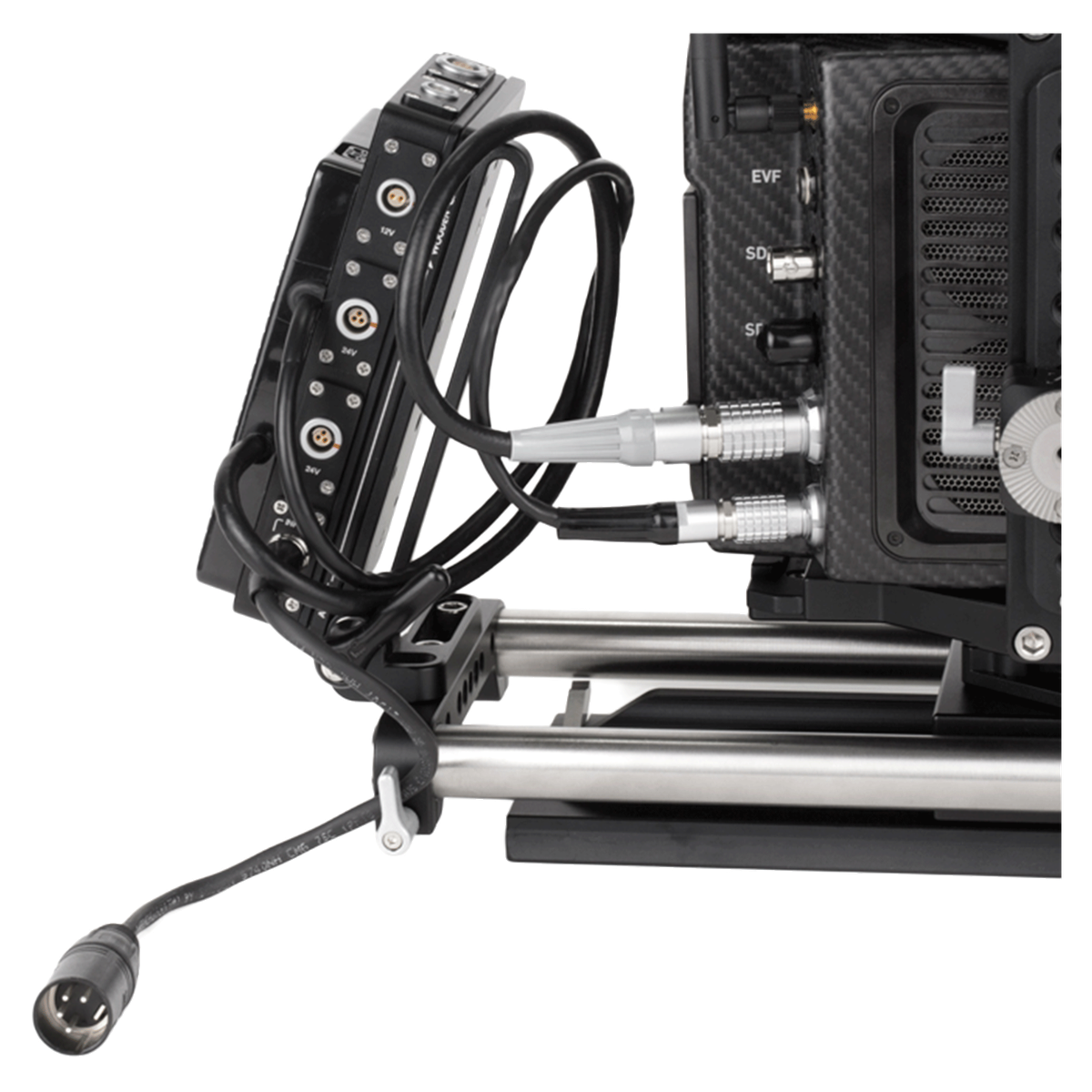

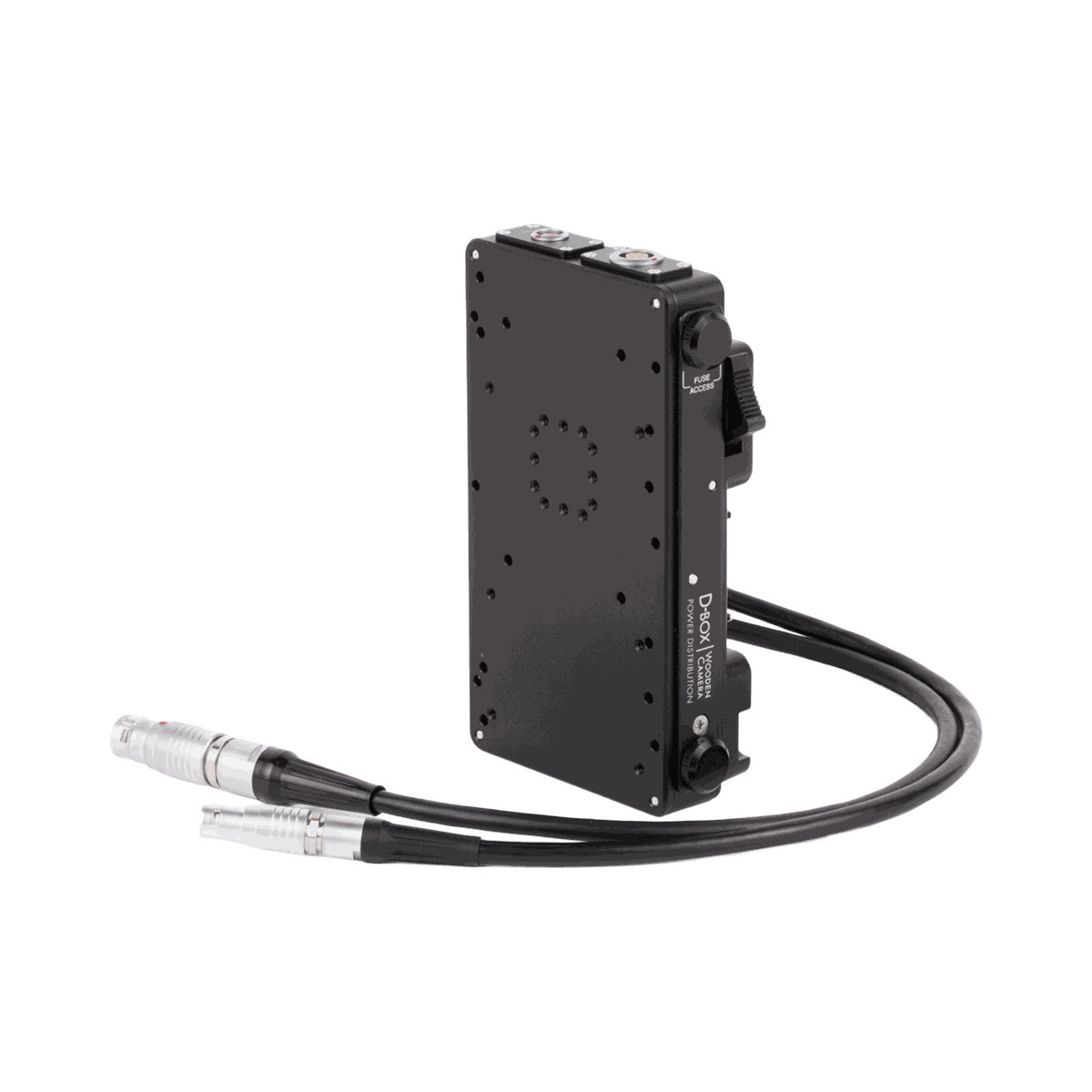

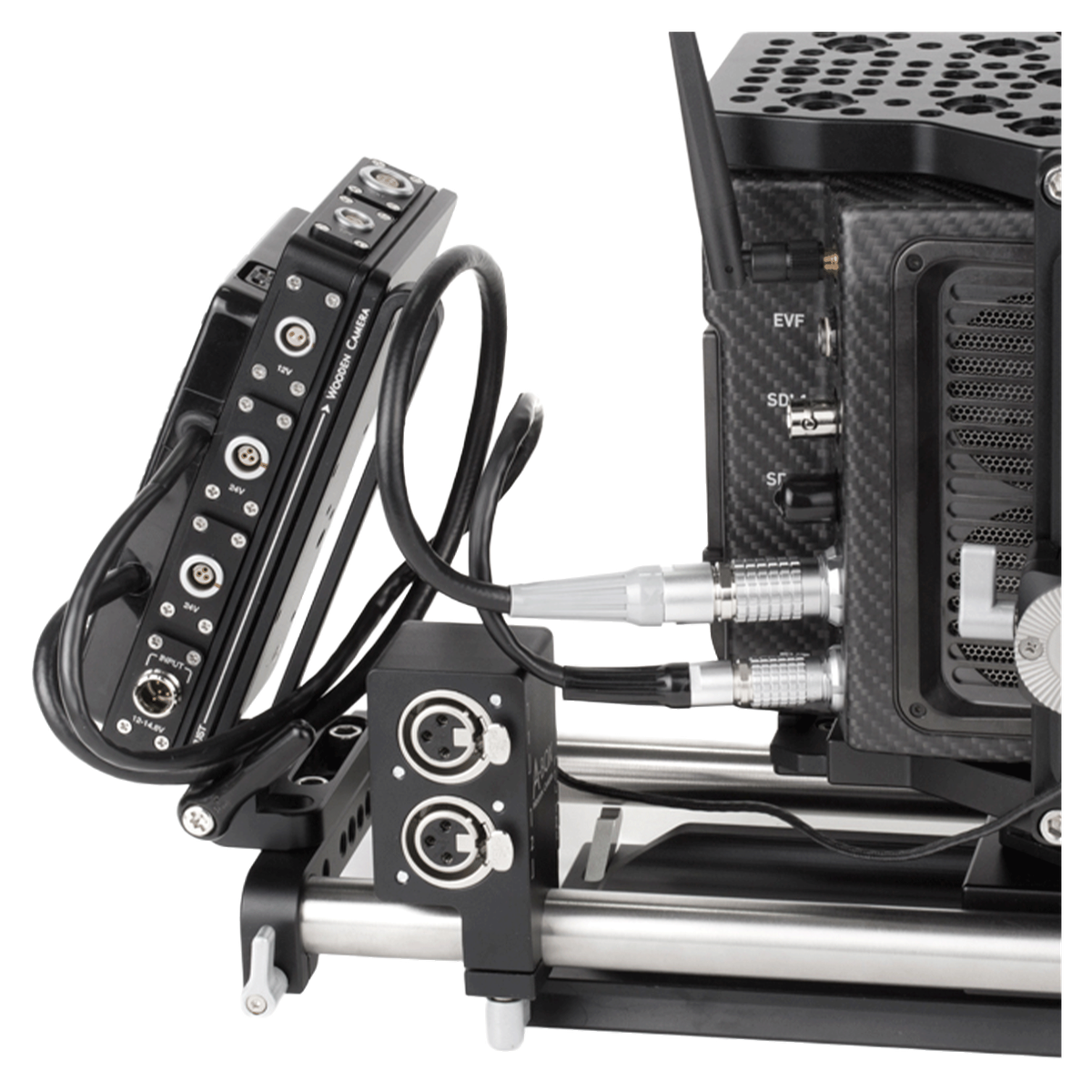

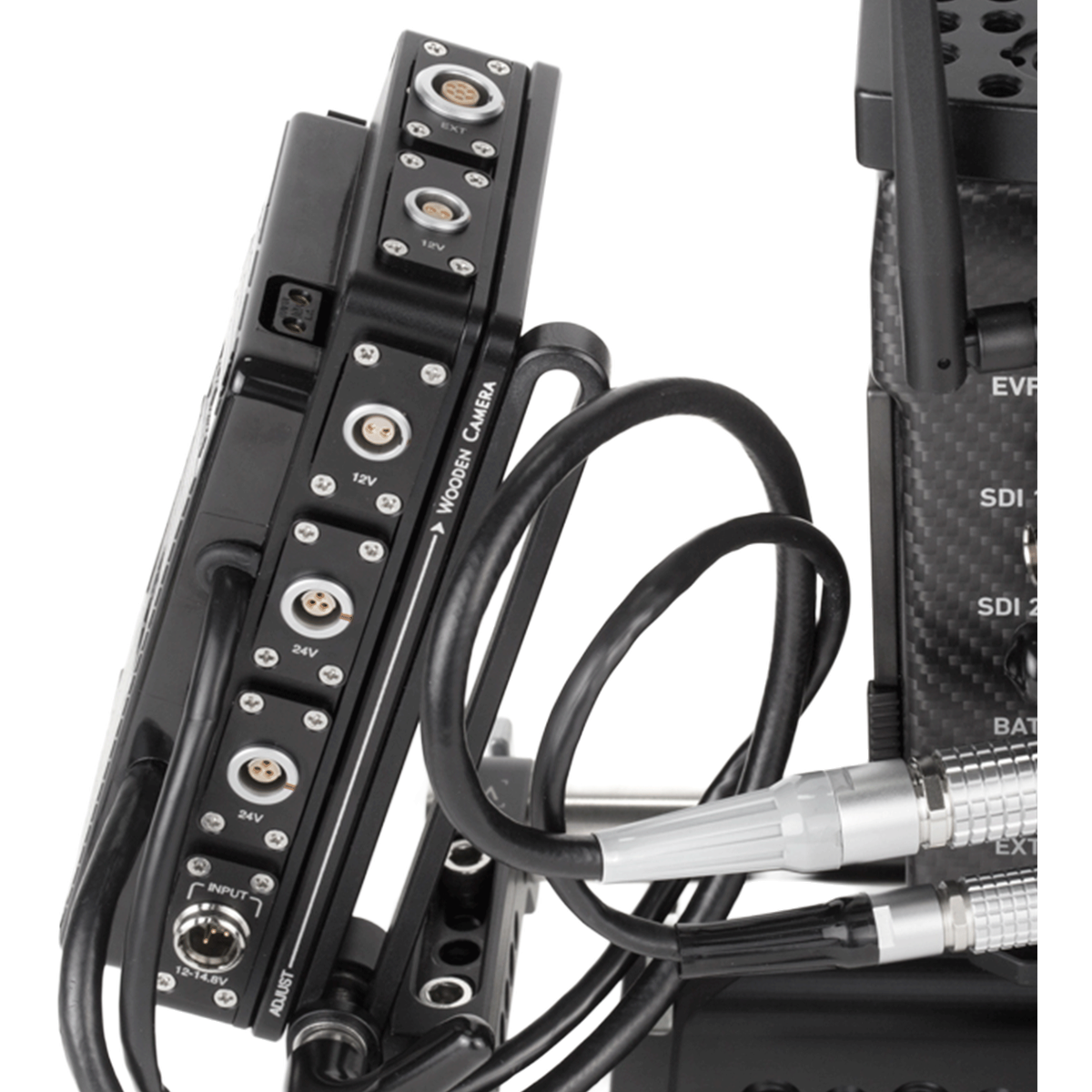

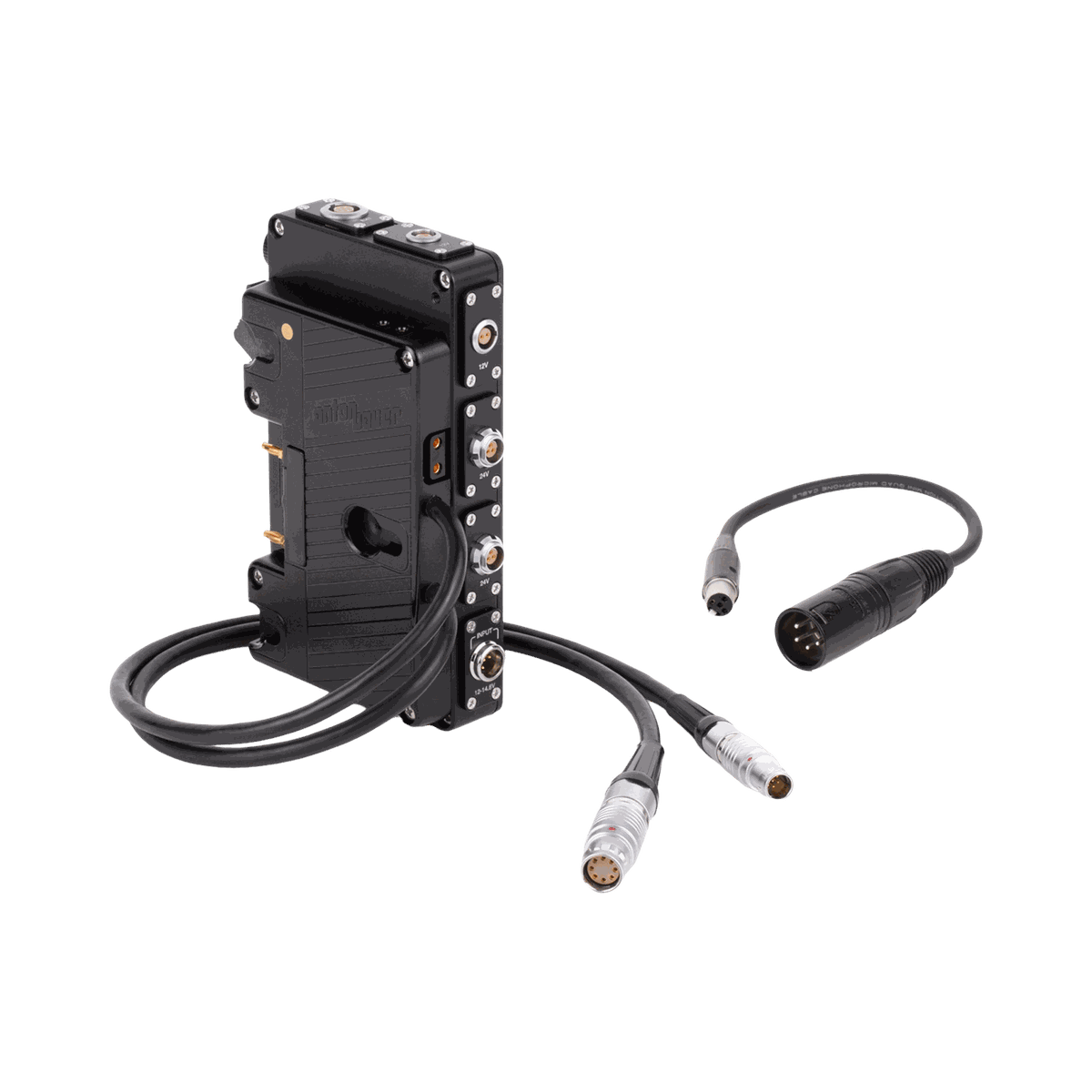

The D-Box adds power distribution, standardized remote start/stop, and hot-swap capability to the ALEXA Mini and Mini LF. It supports up to four simultaneous outputs at a maximum 3A draw each (24V outputs share a combined 3A max) and 10A total, protected by an easily accessible fuse; two 16-inch cables exit the plate for the 8-pin power plug and the 7-pin EXT port.

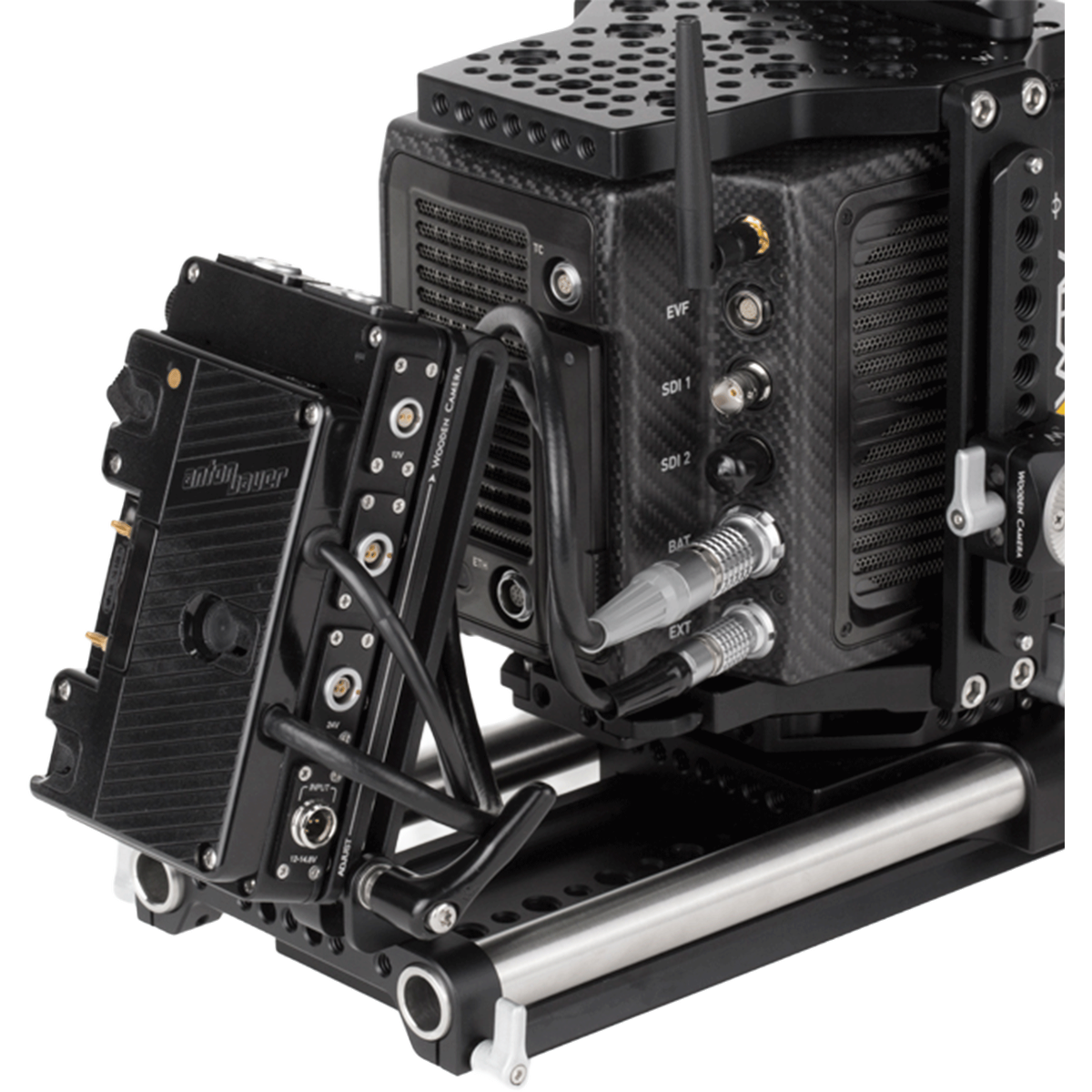

An authentic Anton Bauer Gold Mount plate provides one unregulated D-Tap hard-wired to the D-Box. Three 1/4-20 holes on the bottom accept the Rod Clamp (15mm LW), Rod Clamp (15mm Studio), or Rod Clamp (19mm) directly, or a Battery Slide/Recorder Slide for an adjustable mount; it also attaches to the ARRI BAP-1, with instructions included in the box.
