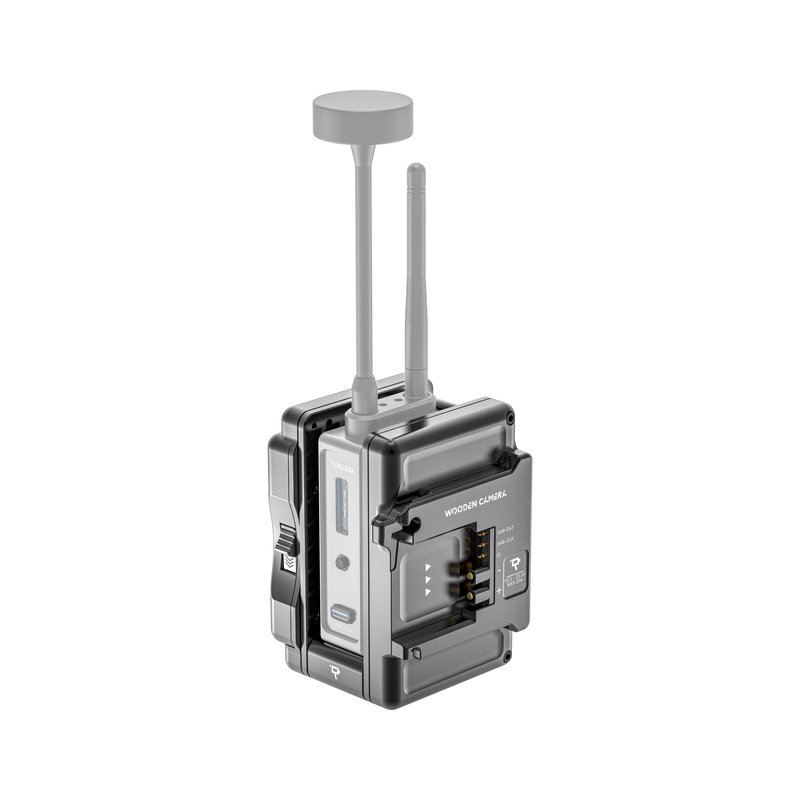

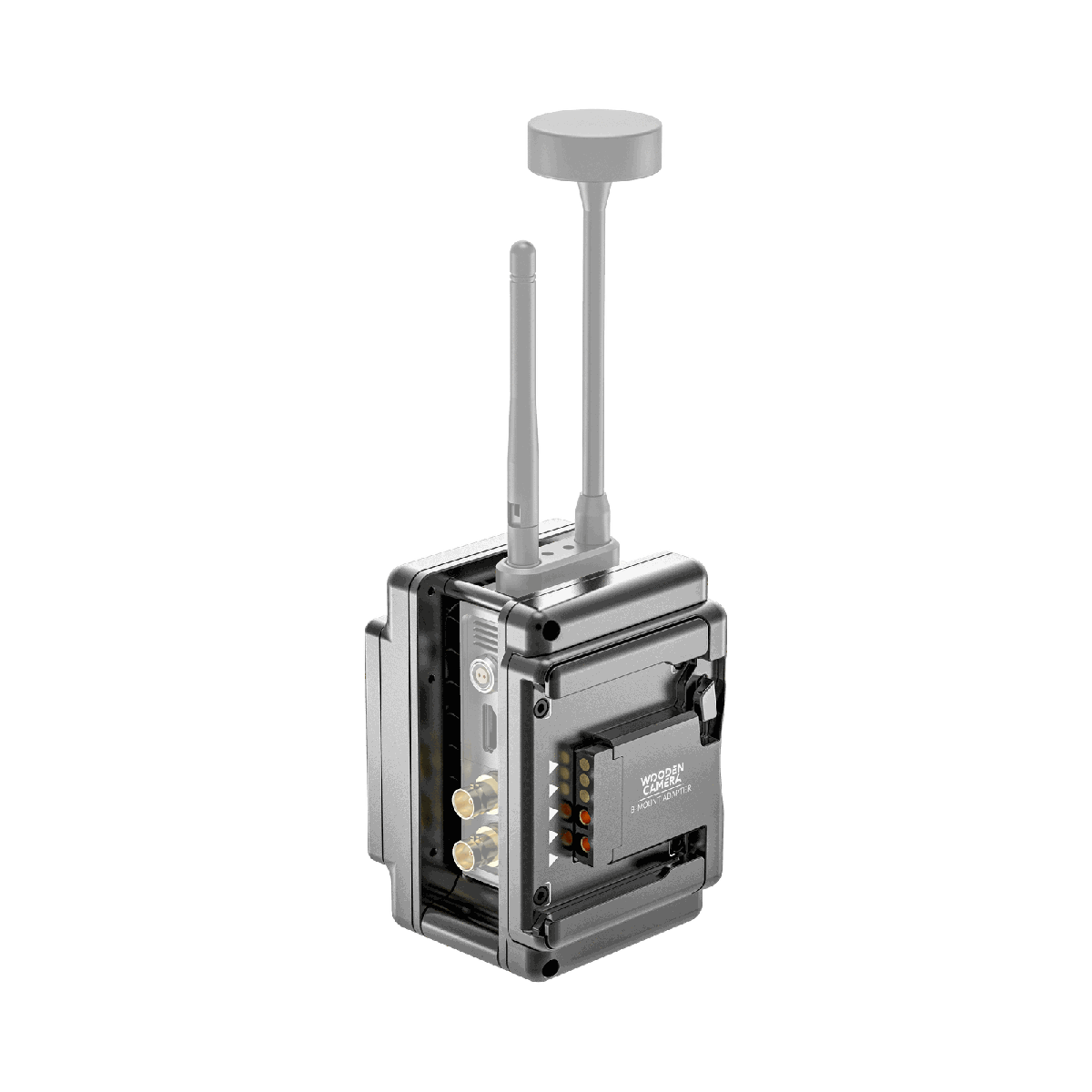

Wooden Camera Cradle for Bolt 6 LT TX B-Mount (12/24V)
The Cradle for Bolt 6 LT TX B-Mount (12/24V) is a power accessory from Wooden Camera. Secure a Teradek Bolt 6 LT Transmitter in this B-Mount Dual Battery Plate Cradle and allow for pass-through power from the battery to the camera. This cradle has a variable voltage input between 10.3 and 33.6V, with a maximum of 20A, meaning both battery options of 14V and 26V are covered in this cradle. Secure your Bolt 6 LT TX to the bottom of the cradle using an included captive 1/4"-20 screw. Also compatible with Bolt 4K LT TX.
It weighs 499 g (1.1 lbs). It mounts via 1/4"-20.
| Type | Power & Cables |
|---|---|
| Compatibility | 12/24V |
| Weight | 499 g (1.1 lbs) |
| Dimensions | 84.7 x 82.5 x 119.3 mm (3.33 x 3.25 x 4.7 in) |
| Mounting / Interface | 1/4"-20 |
| Manufacturer Part Number | A00648 |
