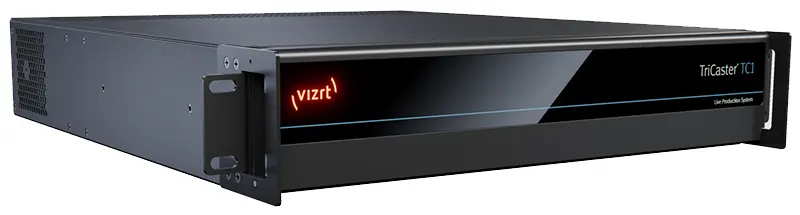

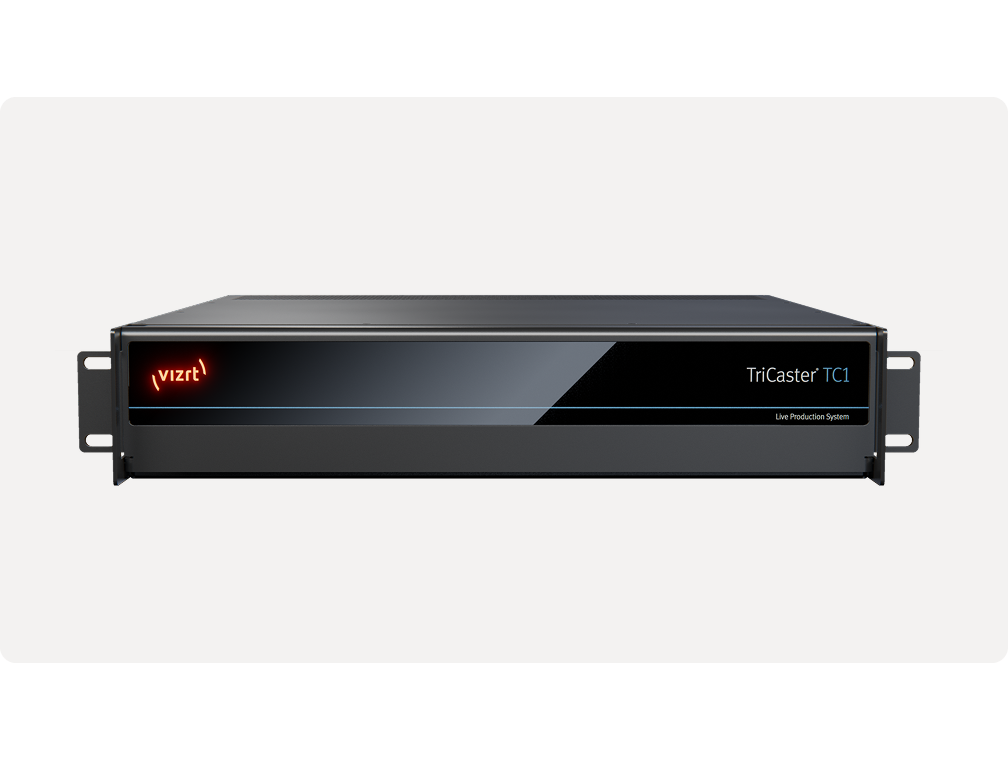

Vizrt TriCaster TC1 2 RU Live Production

The TriCaster TC1 is Vizrt's 2 RU flagship for hybrid live production, built to mix any combination of 16 external SDI and IP sources in one switcher. It intermixes formats and resolutions freely, up to 4K Ultra HD at 60 frames per second, so a room full of legacy SDI cameras and modern NDI feeds can share the same M/E without conversion boxes in between. Four onboard 3G/HD/SD-SDI connections handle direct broadcast video and audio, while HDMI, DisplayPort, and DVI drive the multiview screens.

On the network side the TC1 takes 16 IP inputs via NDI with key and fill and carries video, audio, and data over IP at near-zero latency. It configures up to four independent mix outputs delivered simultaneously over IP and SDI, and records up to 8 channels of full-resolution video to NDI, QuickTime, or H.264 files for isolated capture and instant replay.
