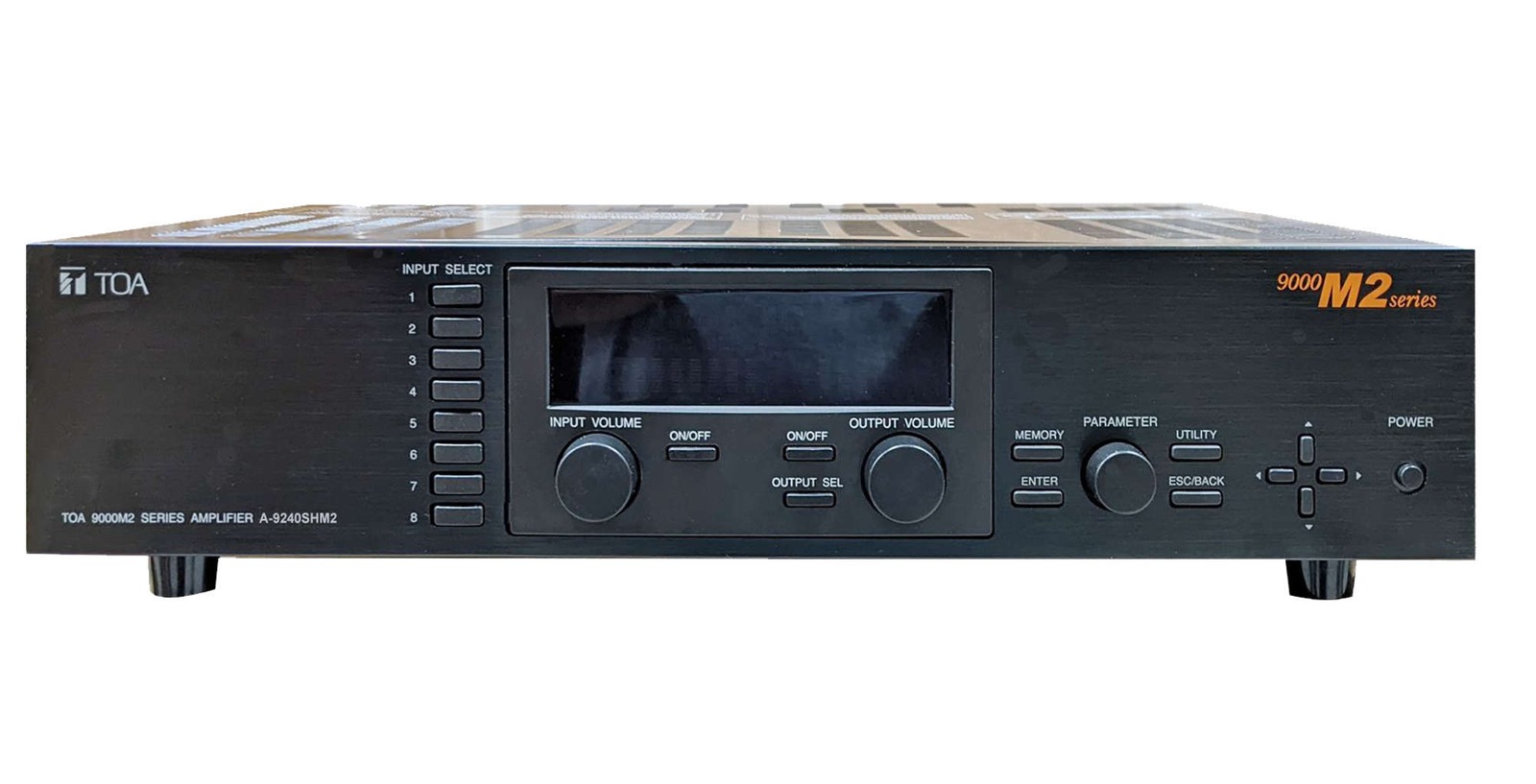

TOA A-9240SHM2 CU 240W Digital Matrix Mixer/Amplifier

The A-9240SHM2 is the high-power single-amplifier model in TOA's 9000M2 modular digital matrix series, built to drive a large 70V distribution system from one processed chassis. It accepts up to eight mic/line inputs through plug-in modules and routes them through its DSP to seven line outputs, then to a single 240-watt power amplifier, enough for a big warehouse, arena concourse, or campus paging zone.

The DSP gives every path a 10-band parametric EQ, high- and low-pass filters, bass and treble, plus a compressor, gate, ducker, and delay for room tuning and automatic paging priority. Frequency response runs 20 Hz to 20 kHz. Input modules are ordered separately; the rack-mount kit is included and the chassis occupies 2U.
