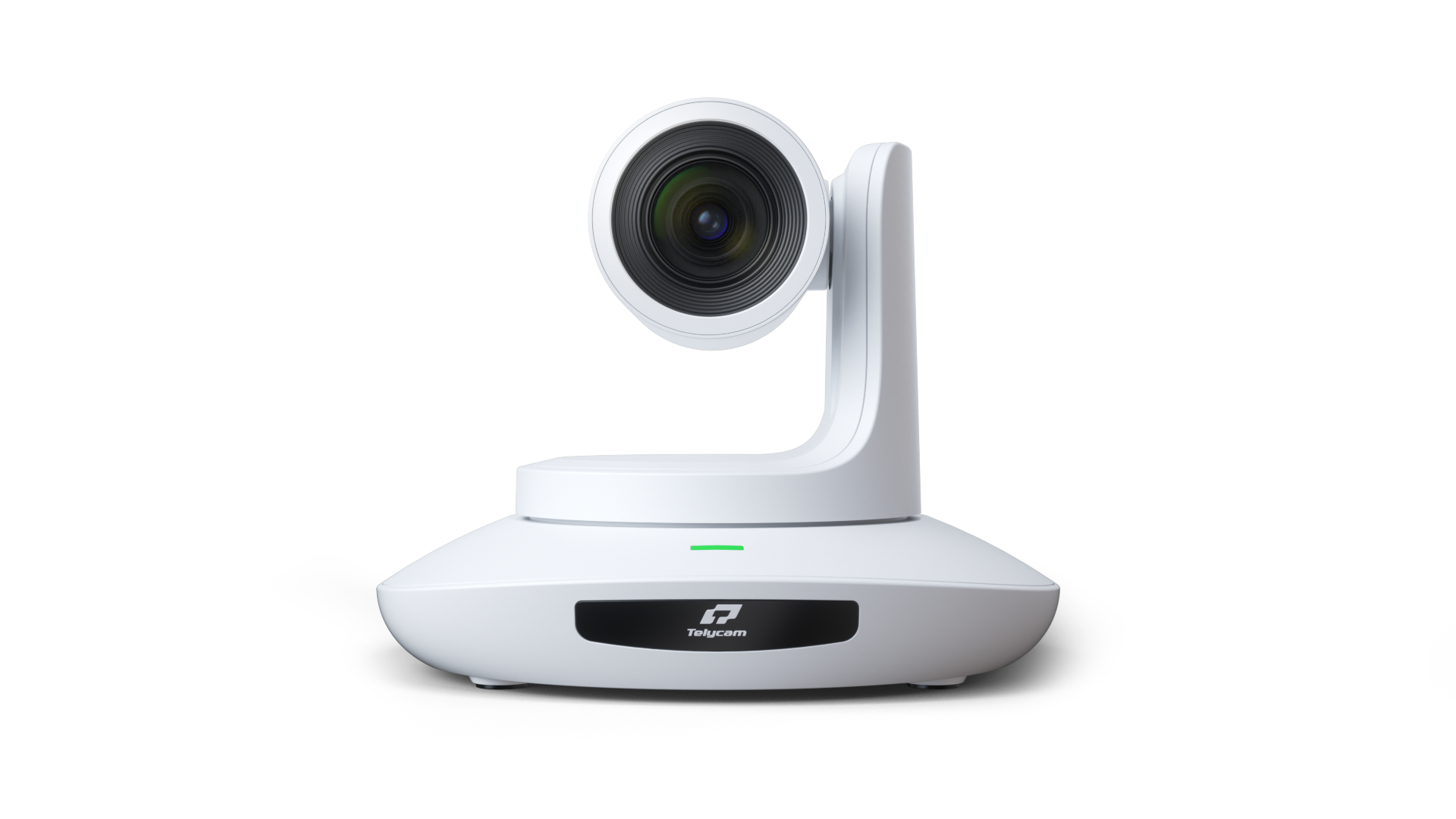

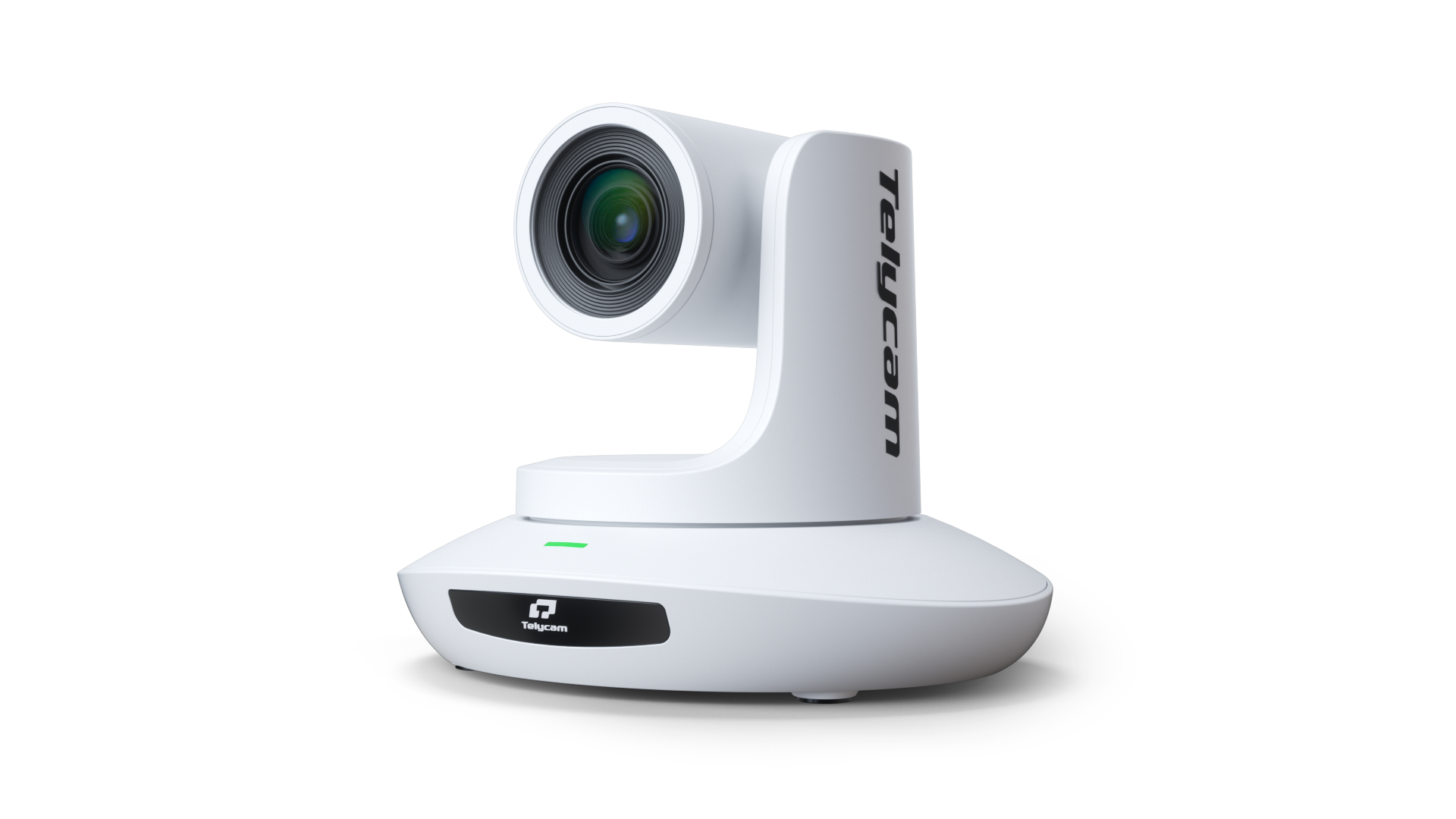

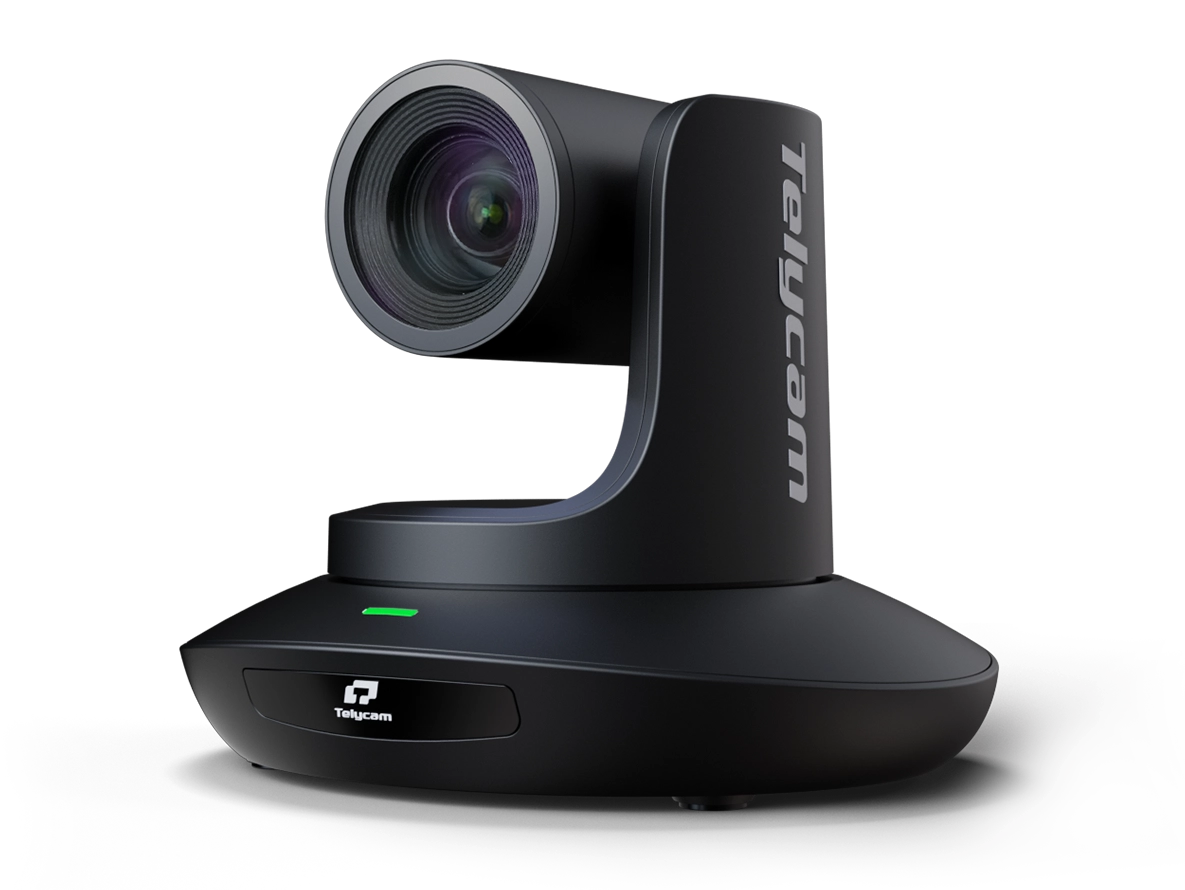

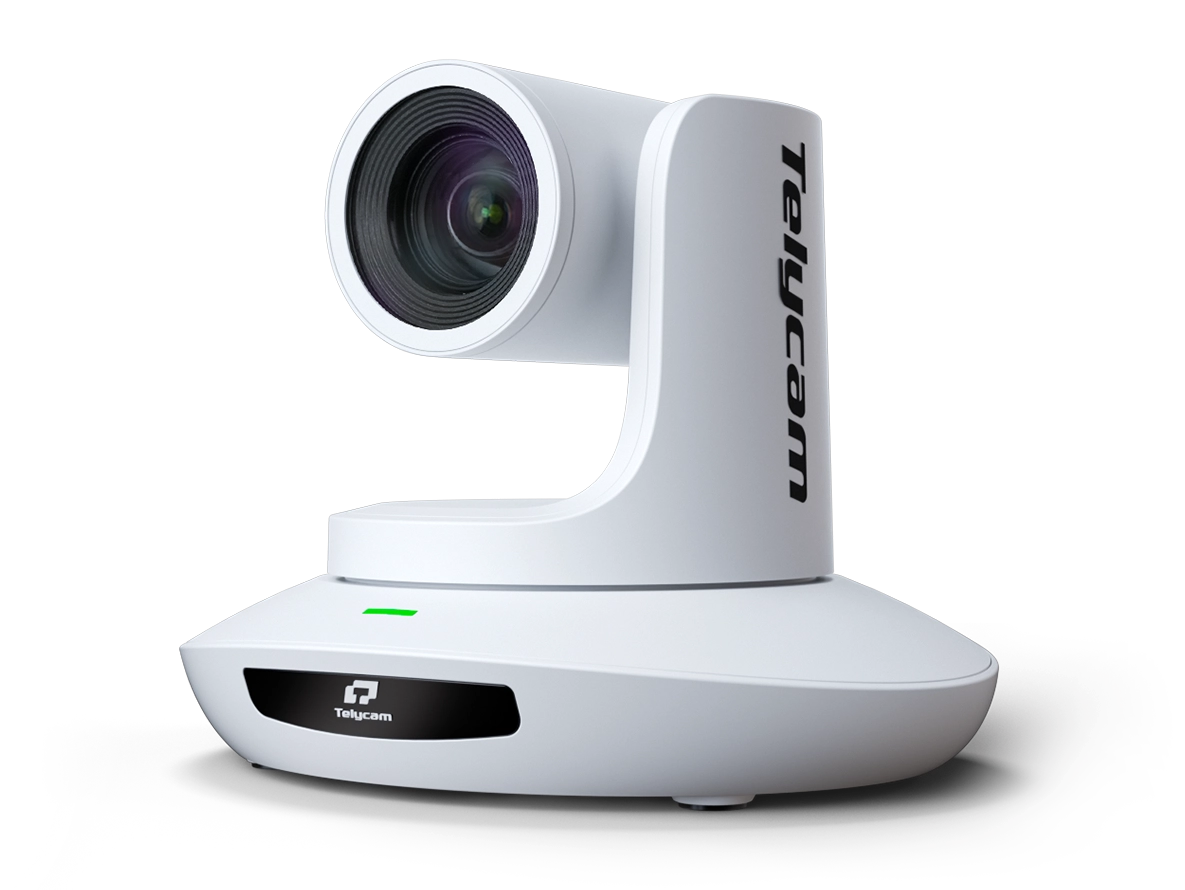

Telycam Drive+ SE 20X PTZ Camera

Drive+ SE runs a 1/2.8-inch 2.4MP CMOS sensor behind a 20x lens at f=4.9 to 98mm, F1.5 to F3.0, for a horizontal field of view from 60 degrees wide down to 3.2 degrees at full tele, with a working distance from 1 meter. It is Telycam's entry point into the Drive+ line, priced below the NDI-equipped Drive+ N models.

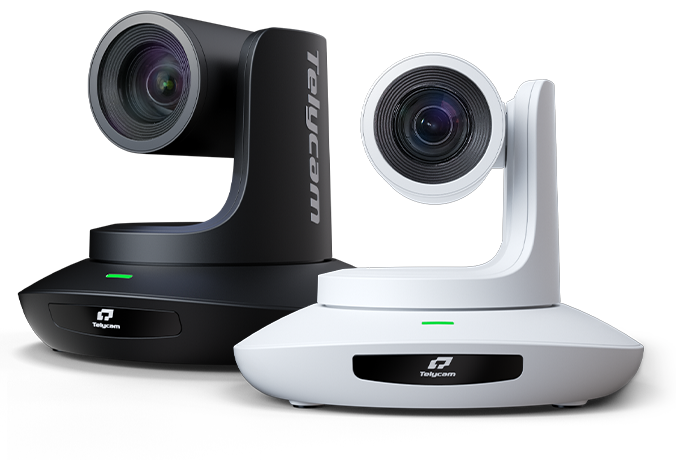

The camera ships as a fixed single-output model, either 3G-SDI (DP300-20S) or HDMI (DP300-20H), which keeps the price down for classrooms and small meeting rooms that do not need a multi-format output. Available in black and white on either output.

Image Sensor1/2.8 inch, 2.4MP CMOS
Optical Zoom20x, f = 4.9 - 98mm, F1.5 - F3.0
Field of View (H/V/Diagonal)60 - 3.2 deg / 34.14 - 1.12 deg / 67.08 - 2.27 deg
Minimum Working Distance1.0m
S/N Ratio50dB or better
Video OutputFixed 3G-SDI (20S) or fixed HDMI (20H)
