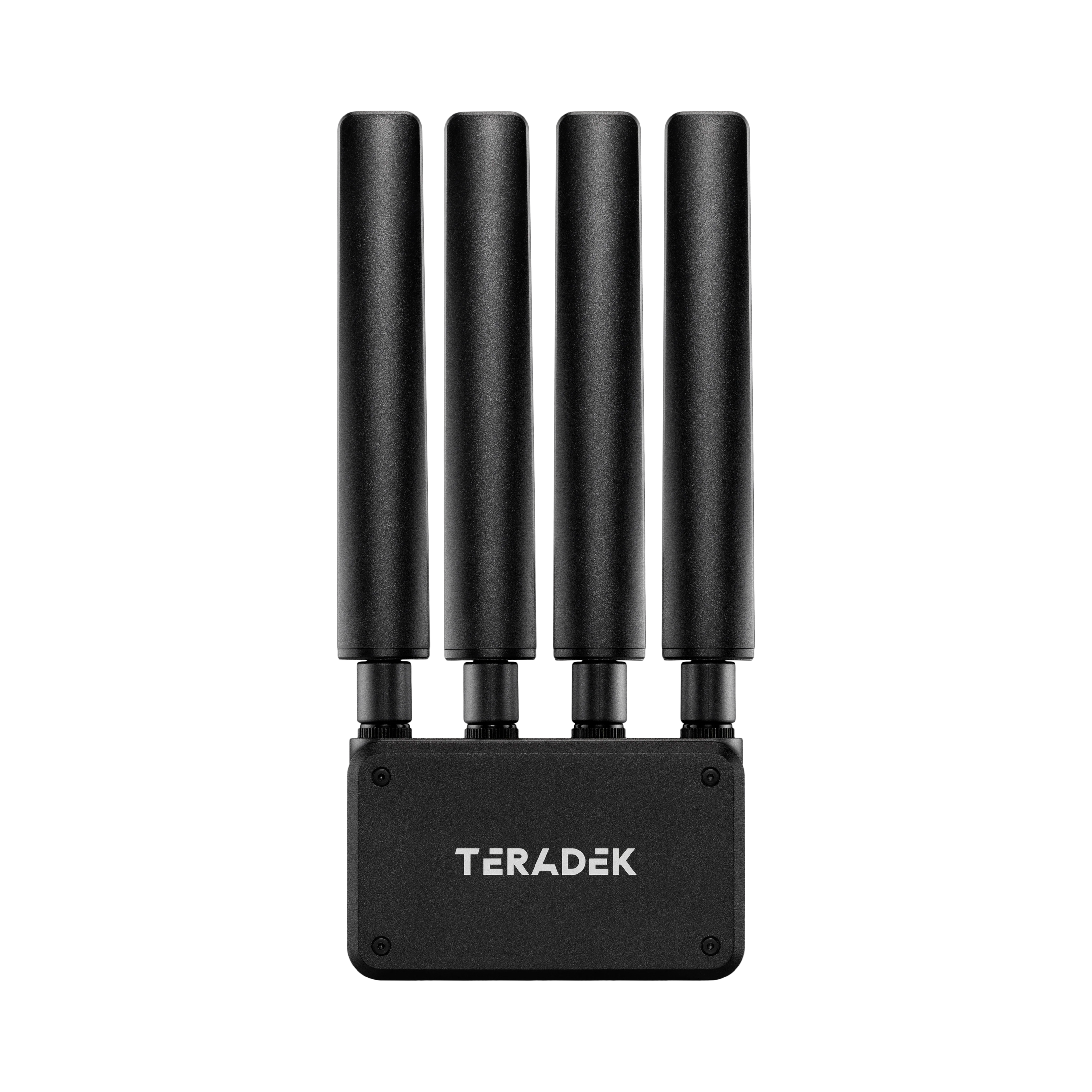

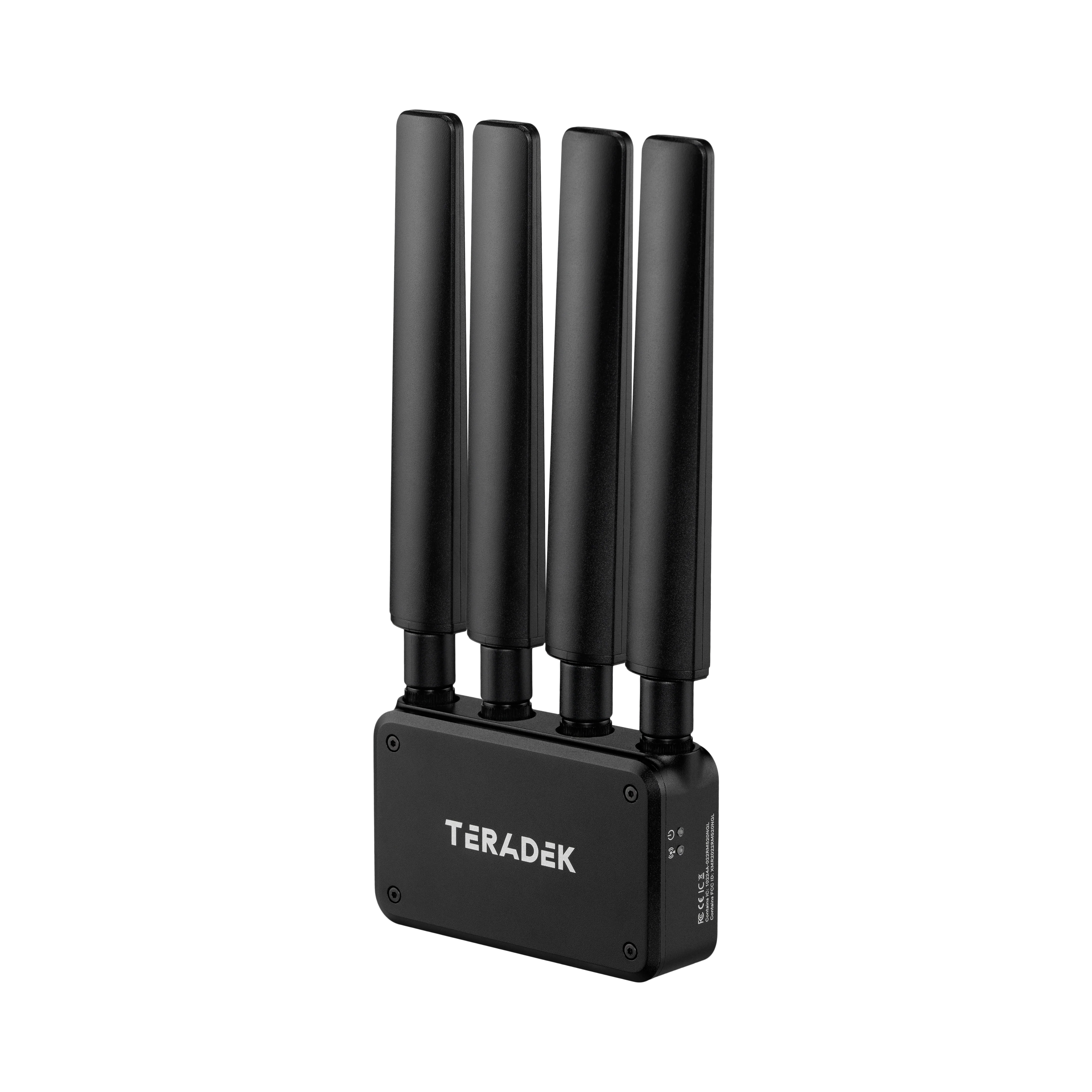

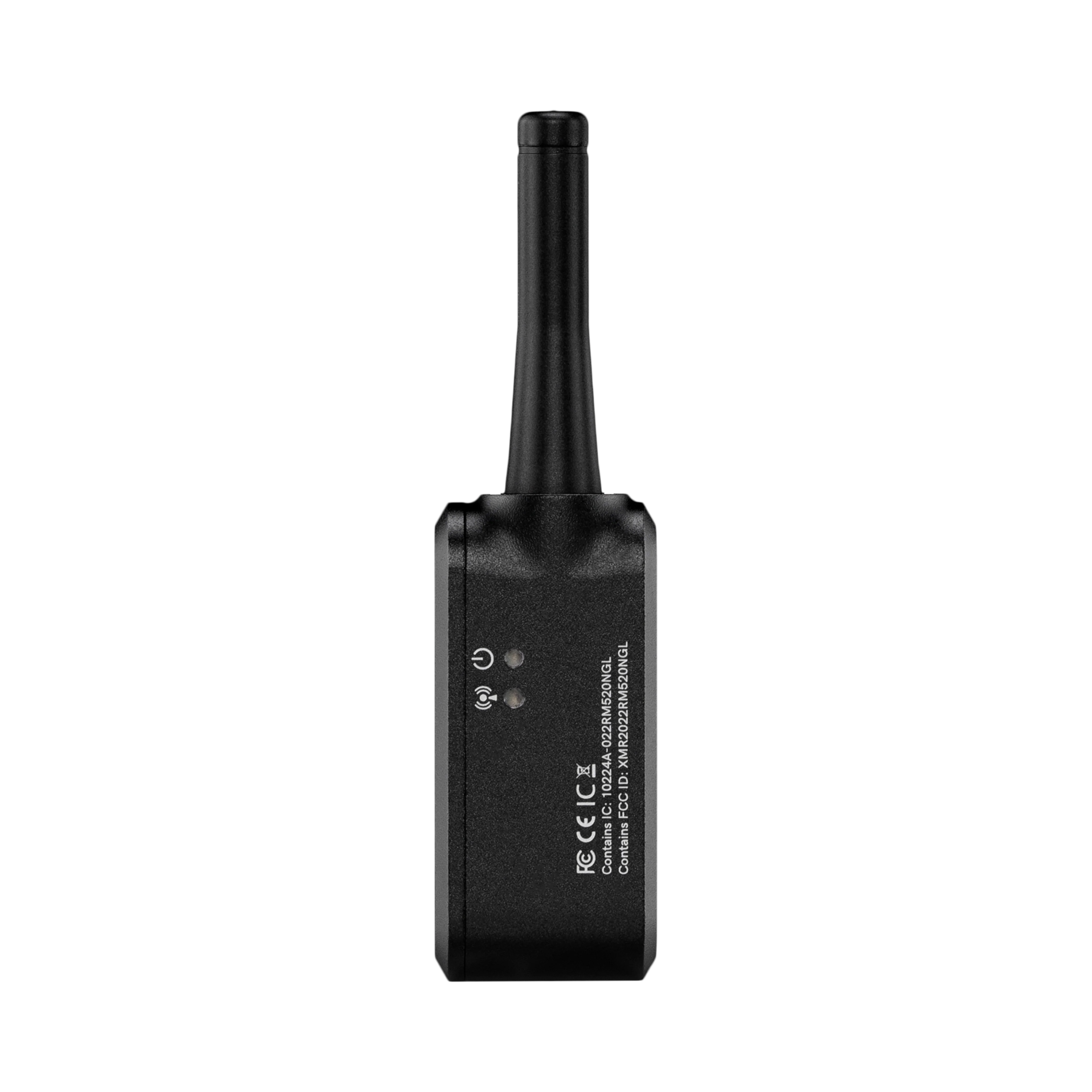

Teradek Node 5G Q Series Global Modem

The Teradek Node 5G Q Series modem brings 5G sub-6GHz data to Prism Mobile, Prism Flex Mk II, Serv, and Link AX encoders, with 5G SA (Standalone) and NSA network support for maximum coverage as carriers roll out 5G. Throughput reaches up to 480 Mbps in both directions, helped by 4x carrier aggregation on the downlink and 2x on the uplink, plus MIMO for a stronger upload connection when a shoot depends on getting video out live.

An eSIM slot comes provisioned for Teradek Data and also accepts virtually any physical SIM, so a crew can run on a house carrier account or drop in a local card at a moment's notice. The milled-aluminum chassis is built for field use, with three 1/4"-20 mounting threads and a weather-resistant design rated from -10C to 50C operating. Node 5G ships in USB-A, USB-C, and 5-pin-to-5-pin configurations to match whichever encoder is hosting it.

Network	5G SA/NSA sub-6GHz; LTE/4G/3G fallback worldwide
Throughput	Up to 480 Mbps down / 480 Mbps up
Carrier Aggregation	4x CA downlink, 2x CA uplink, MIMO uplink
SIM	eSIM (Teradek Data ready) + physical SIM support
Chassis	Milled aluminum, weather-resistant
Mounting	Three 1/4"-20 threads
Operating Range	-10C to 50C; storage -40C to 90C
Model	10-0033-A / 10-0033-C / 10-0033-L
