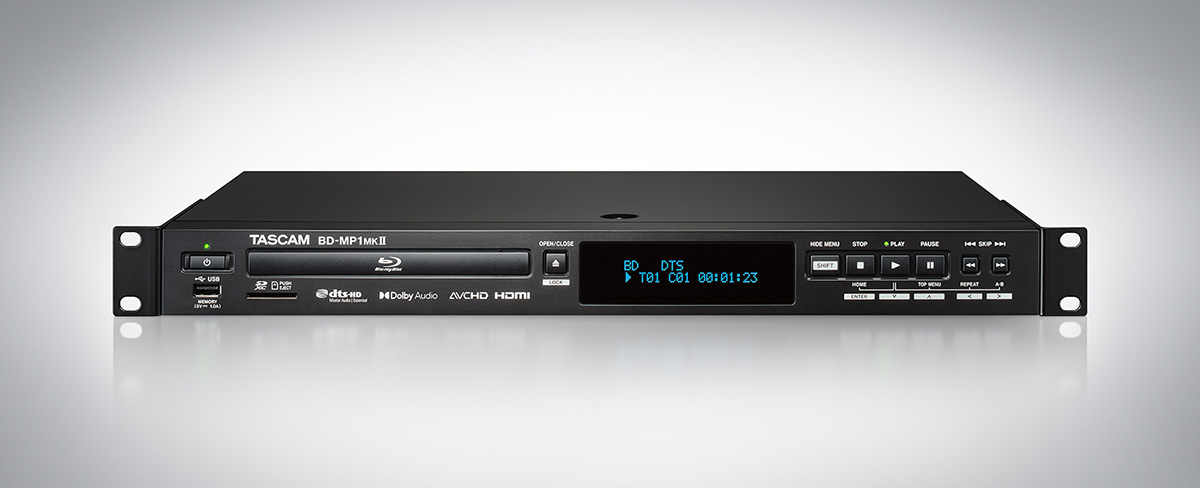

Tascam BD-MP1MKII Professional Blu-ray Player
The BD-MP1MKII plays Blu-ray including BD-R and BD-RE, DVD, and CD, and reads video, image and audio files from SD media up to 512 GB and from USB. Blu-ray 3D is supported. It is the compact professional player for a room that still runs discs but needs an install-grade output section.

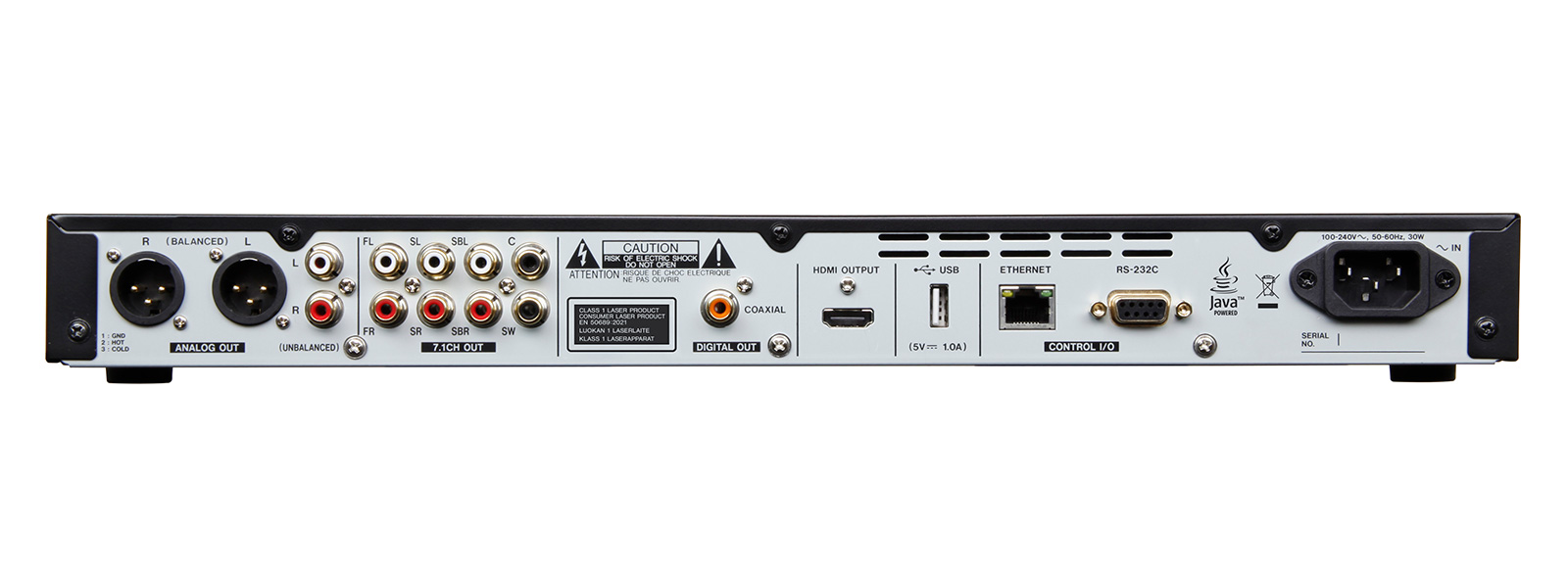

Balanced XLR outputs sit alongside unbalanced RCA and a 75 ohm coaxial digital output, and the HDMI output passes Dolby Atmos and DTS-HD through to an AV amplifier untouched. Power On Play starts the loaded disc when the rack powers up and the Hide MENU function keeps navigation graphics off the screen. Sampling rates up to 192 kHz are supported from disc and file media.
| Channel separation | 89dB or higher (JEITA) |
|---|---|
| COAXIAL Output impedance | 75 ohms or lower |
| MP3/WMA Connector | HDMI 19pin Type A |
| Disc Media Blu-ray | BD25, BD50, BD-ROM, BD-R(SL,DL), BD-RE(SL,DL) |
| Supported media Disc formats | *Blu-ray 3D supported |
| BD/DVD/USB/SD Sampling frequency | 44.1k/ 48k/ 64k/ 88.2k/ 96k/176.4k/ 192k Hz |
| Frequency response | 20 Hz- 20 kHz +/-0.5 dB (Fs = 44.1 KHz/48 KHz, JEITA) |
| 7.1ch Audio outputs Protocol | 10BASE-T/100BASE-TX |
