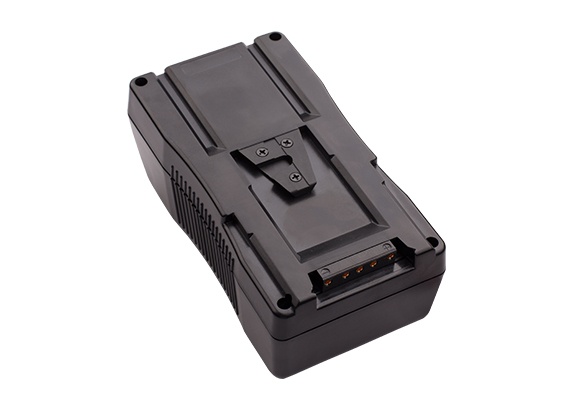

SWIT S-8183S+ 270Wh High-Load V-Mount Battery

The S-8183S+ updates the S-8183S to 270Wh and 18.75Ah, and the load figure is the part that matters on a cine set: at least 250W and 20A even with 1 percent capacity remaining, sustained without shortening battery life under long full-power draw. That covers a cine camera and a cine light on the same block.

A D-Tap socket on the top face supplies 14.4V nominal at up to 120W and 10A for an on-camera light, monitor or wireless transmitter. It supports 6A fast charging, reaching 80 percent in about 2.5 hours and full in 3.8 hours, and a four-level LED on the side gives a quick capacity check before the pack goes on the camera.

Capacity	270 Wh / 18.75 Ah
Mount	V-Mount (S-8183S+) or Gold Mount (S-8183A+)
Constant Load	At least 250W / 20A down to 1 percent capacity
D-Tap Output	14.4V nominal, 120W / 10A maximum
Fast Charging	6A: 0 to 80 percent in approx 2.5 h, full in approx 3.8 h
Indicator	4-level LED power indicator
Supersedes	S-8183S (240 Wh)
