SWIT S-2330 300W Bi-Color Studio LED Spot Light
The S-2330 is the 300W step up from SWIT's S-2320, sharing the same 20 to 70 degree zoom lens and bi-color engine but built for larger sets or greater throw distance. Spot output reaches 5940 lux at three meters and still measures 1090 lux at seven meters, with CRI and TLCI both at 95 or better across the 3000K to 8000K adjustable range.
Dimming runs 0 to 100 percent without flicker, and DMX512 arrives on standard 5-pin connectors for board control alongside other fixtures. At 11.1kg net it is meaningfully heavier than the S-2320, so plan a stand rated for the extra weight and the 630 x 500 x 480mm packaged size it ships in.

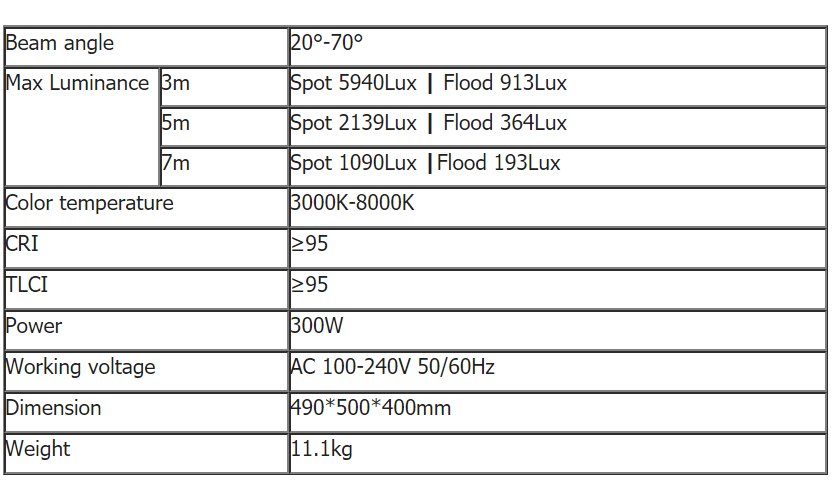

| Power | 300 W |
|---|---|

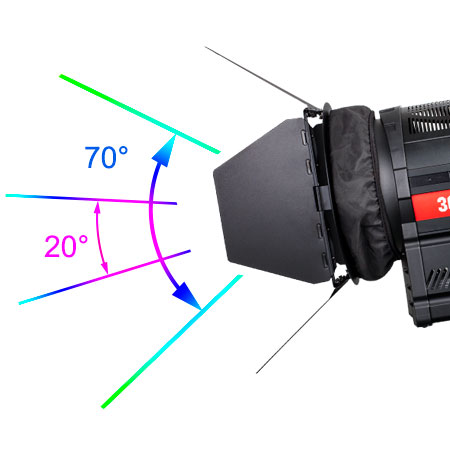

| Beam Angle | 20 - 70 degrees, adjustable |
| Illuminance | 5940 lux @ 3m spot, 913 lux @ 3m flood |

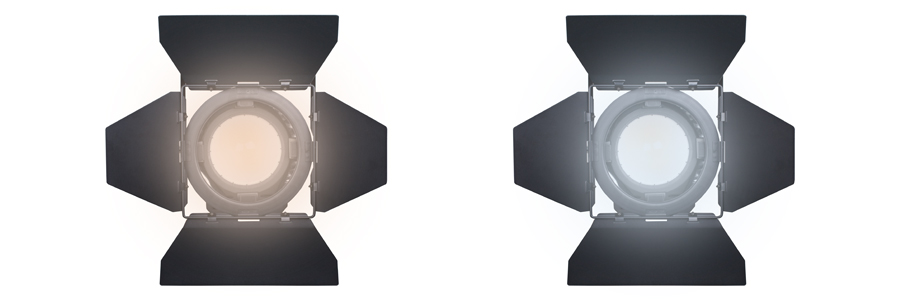

| Color Temperature | 3000K - 8000K, continuously adjustable |

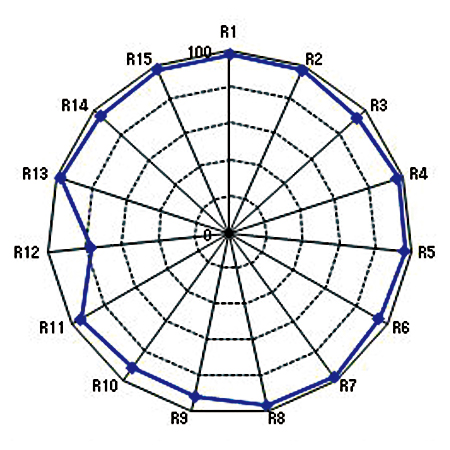

| Color Rendering | CRI >= 95, TLCI >= 95 |

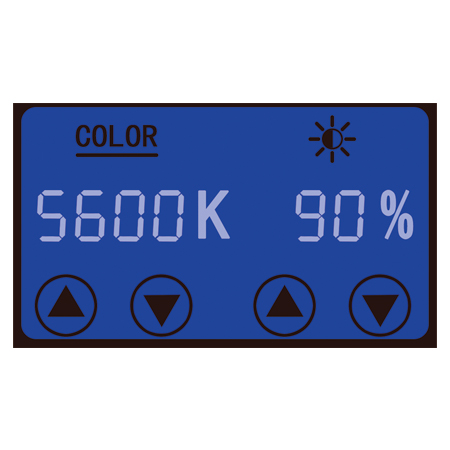

| Dimming | 0 - 100 percent, flicker-free |
| DMX | DMX512, standard 5-pin in/out |
| Weight | 11.1 kg net |
