SWIT S-2320 160W Bi-Color Studio LED Spot Light

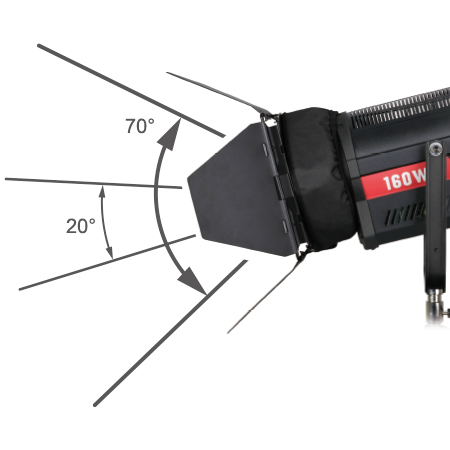

The S-2320 is a 160W COB studio spot built around a 20 to 70 degree zoom lens, so one fixture covers a tight key light and a broad flood without a lens change. Illuminance runs from 1800 lux at three meters in spot mode down to 546 lux at three meters flooded, with CRI and TLCI both at 95 or better for accurate skin tones across a bi-color range of 3000K to 8000K.

Dimming is 0 to 100 percent without visible flicker, and DMX512 arrives on 5-pin in and out with dual-address control for running it alongside other fixtures on one board. It mounts on a standard 5/8 inch baby pin or a 1-1/8 inch junior receiver, and ships with a U-shape yoke, barn doors, black-out cloth and a 4-meter AC cable.

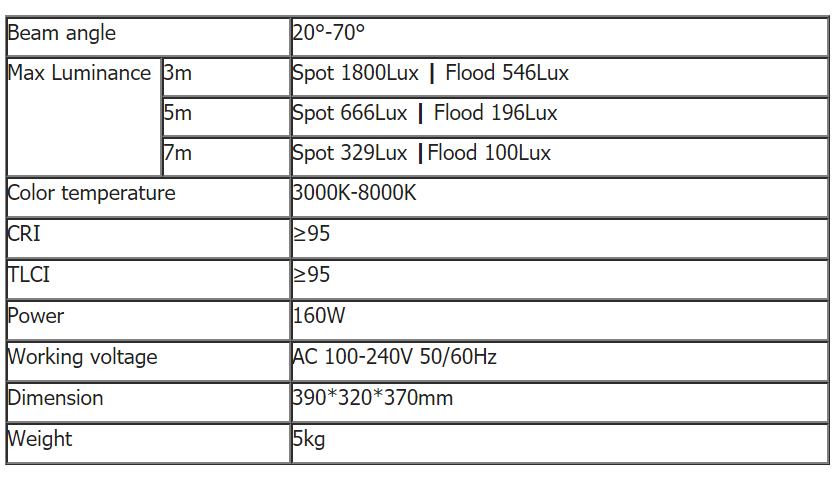

Power160 W COB
Beam Angle20 - 70 degrees, adjustable
Illuminance1800 lux @ 3m spot (20°), 546 lux @ 3m flood (70°)

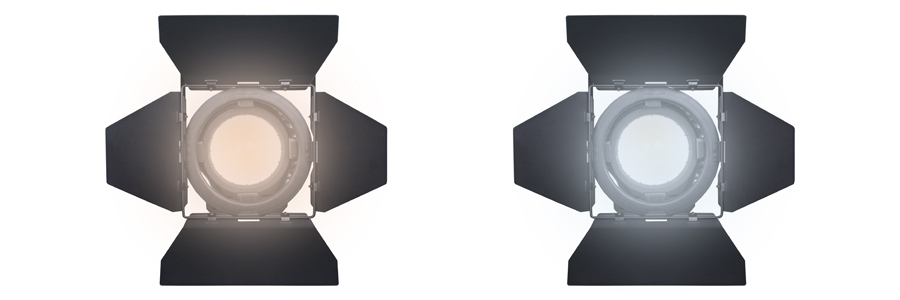

Color Temperature3000K - 8000K, continuously adjustable

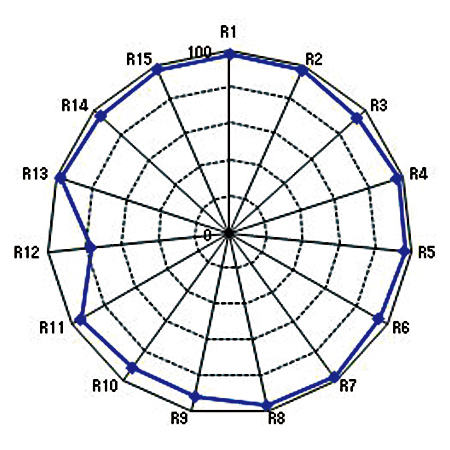

Color RenderingCRI >= 95, TLCI >= 95
Dimming0 - 100 percent, non-flickering
DMXDMX512, 5-pin in/out, dual address control
Mounting5/8 in baby pin or 1-1/8 in junior receiver
