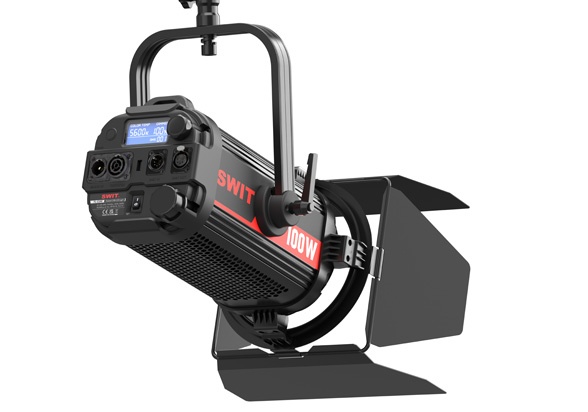

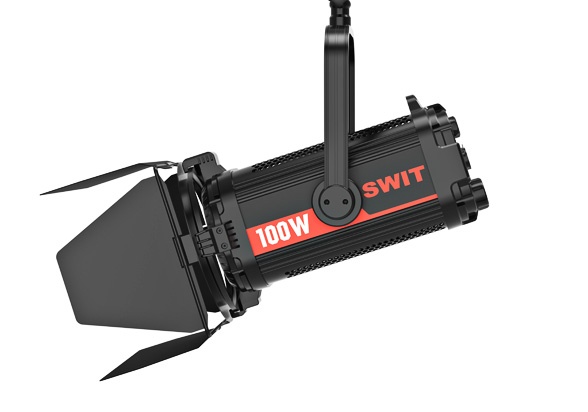

SWIT FL-C100 100W Daylight Fanless Studio Fresnel Light
The FL-C100 is a fanless COB Fresnel for studio and stage work where a fan's hum would land in the boom mic. A single COB emitter throws 60,000 lux at 1 meter through an adjustable 12 to 26 degree lens, giving the hard-edged, shapeable beam a Fresnel is chosen for over a flat panel. Unlike the bi-color FL-C100D, this is a fixed 5600K daylight-balanced fixture.

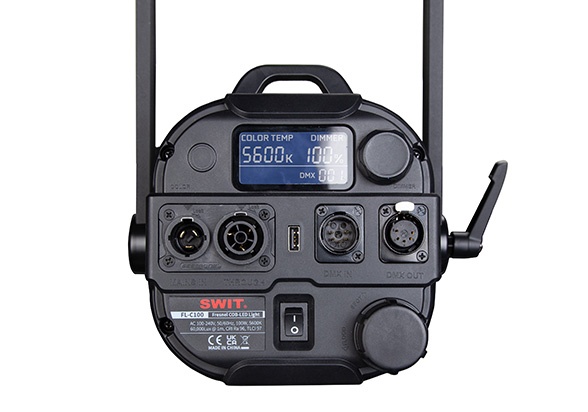

Color rendering runs CRI 96 and TLCI 97, and DMX512 in and out puts it on a lighting board alongside conventional fixtures. Dimming runs 0-100% from the onboard LCD panel or over DMX, and mains power comes in through a locking PowerCON TRUE1 connector with a loop-through for daisy-chaining fixtures.
| LED Type | COB (Chip-on-Board), single-color |
|---|---|
| Spot Angle | 12 - 26 degrees, adjustable |
| Illuminance | 60,000 lux @ 1m (spot) |
| Color Temperature | 5600K (daylight, fixed) |
| Color Rendering | CRI 96, TLCI 97 |
| Power | 100W |
| DMX | DMX512, 5-pin XLR in/out |
| AC Power | PowerCON TRUE1, 100-240V, 50/60Hz |
| Dimensions | 160 x 160 x 364 mm |
| Weight | 5.2 kg net |
