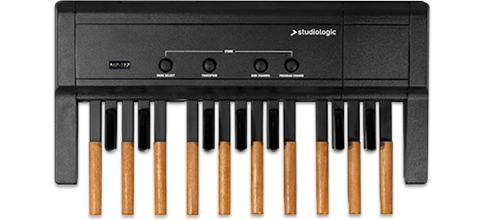

Studiologic MP-113 and MP-117 MIDI Pedalboards

The MP series is Studiologic's MIDI pedalboard for organists and keyboard players who want a real bass pedal under the rig. The MP-113 gives 13 notes from C2 to C3 and the MP-117 gives 17 from C2 to E3, both with a dynamic velocity curve rather than a plain on/off contact.

One MIDI zone covers the full extension, with program change, bank select, MIDI channel and transpose up to 24 semitones in either direction, all set from four function buttons and a virtual numeric keypad. Output is 5-pin MIDI out, power is 9 V DC from the supplied adapter, and numeric keypad stickers are in the box.
