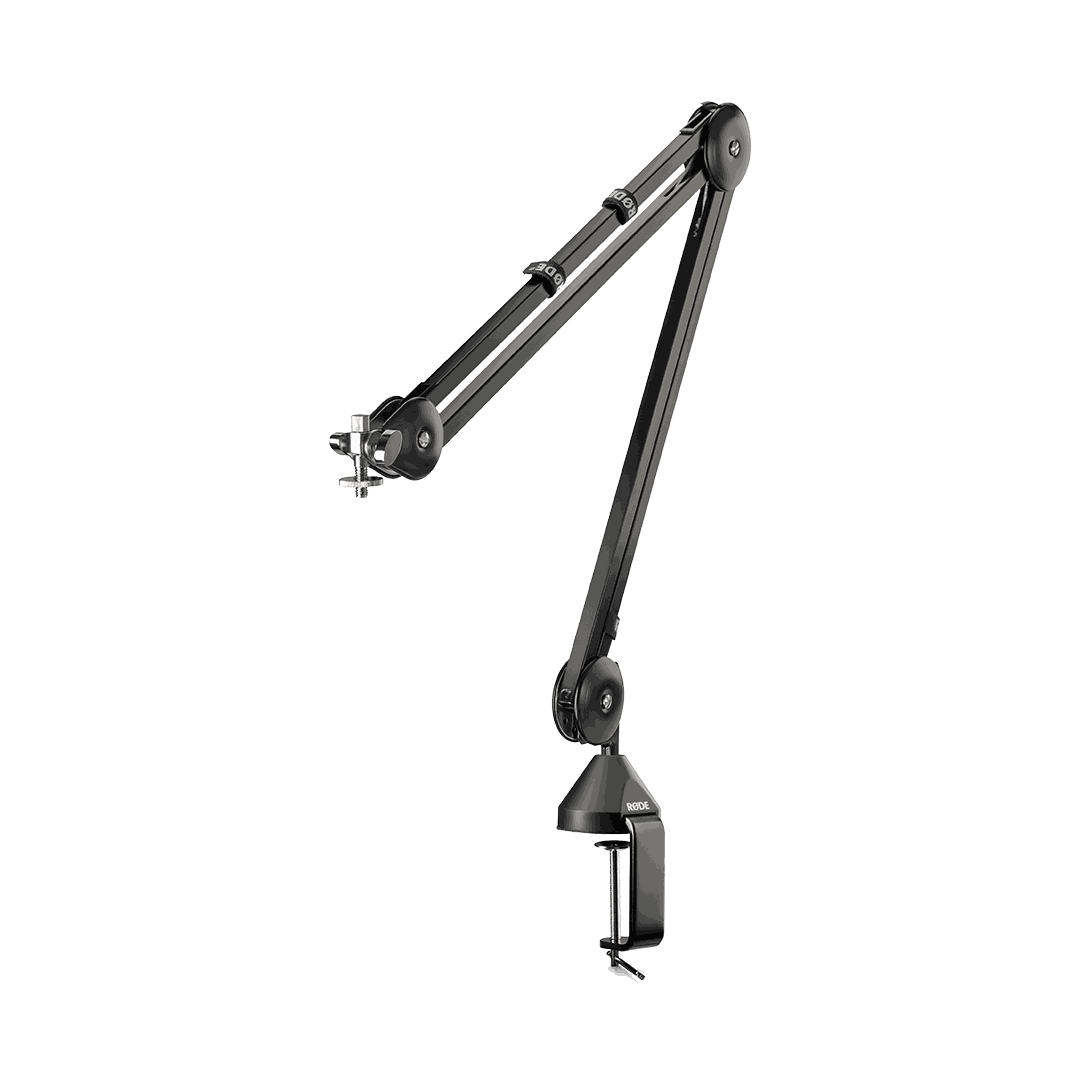

Rode PSA1 Studio Boom Arm
The PSA1 is a professional studio boom arm that puts a microphone exactly where you want it and keeps it there. Its parallelogram linkage holds the mic pointing in a constant direction as you raise or lower the height, so you can set the angle once and adjust position without re-aiming. Internal springs handle the counterbalance quietly, avoiding the creak and clunk of tension-spring arms during a live take.
The arm rotates a full 360 degrees with roughly 820 mm of horizontal and 840 mm of vertical reach, and it supports a microphone and shockmount weighing between 1.5 and 2.4 pounds. It ships with both a desk-clamp and a threaded desk insert, so it mounts to almost any desktop for radio, broadcast, podcasting and home studio use.
| Type | Parallelogram studio boom arm |
|---|---|
| Horizontal Reach | 820 mm |
| Vertical Reach | 840 mm |
| Rotation | 360 degrees |
| Load Capacity | 1.5-2.4 lb (0.7-1.1 kg) with shock mount |
| Operation | Internal springs (quiet) |
| Mounting | Desk clamp and threaded desk insert |
