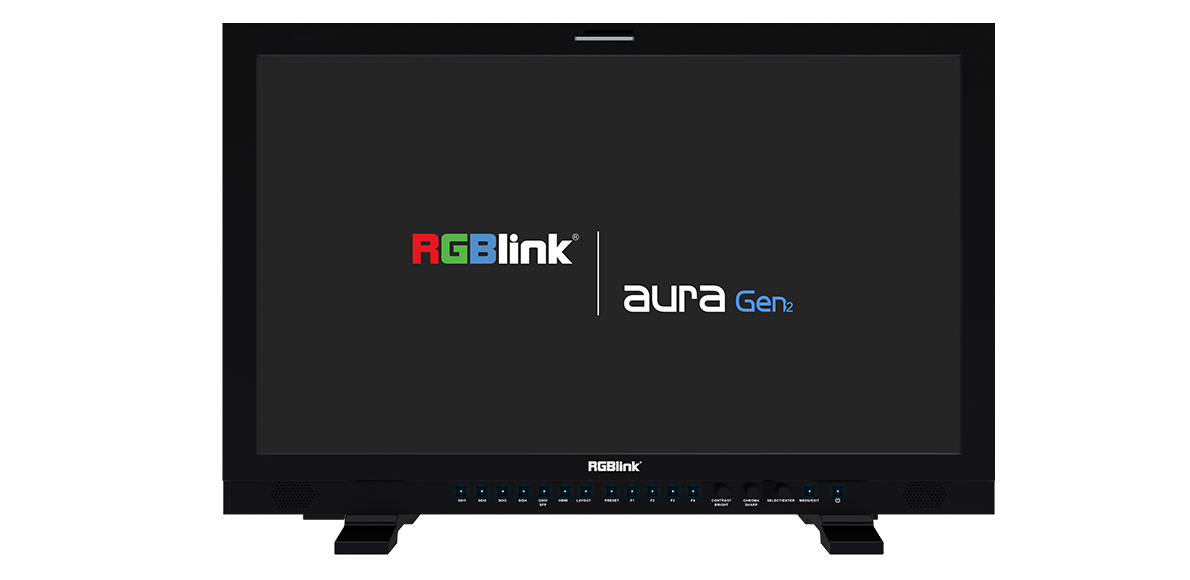

RGBlink aura UHD 27 Gen 2 12G-SDI 4K HDR Production Monitor

The aura UHD 27 Gen 2 puts the same broadcast reference pipeline on a 27 inch 3840 x 2160 panel rated 800 cd/m2 with 1200:1 contrast. Quad-link 12G-SDI accepts 8K and remains backward compatible with 4K at 60 Hz, 3D LUT loading runs tetrahedral interpolation for accurate color transforms, and the monitor covers SMPTE ST 2084 (PQ), hybrid log-gamma, standard gamma curves and camera log.

All four 12G-SDI feeds display simultaneously in quad-view, each window with its own color mode and its own audio meter. False color adds ARRI and RED presets, HDR waveform is supported, and the housing takes a V-mount battery plate as well as DC 24 V XLR power. Loop outputs on all four SDI connectors let the monitor sit inline without an outboard distribution amplifier.
