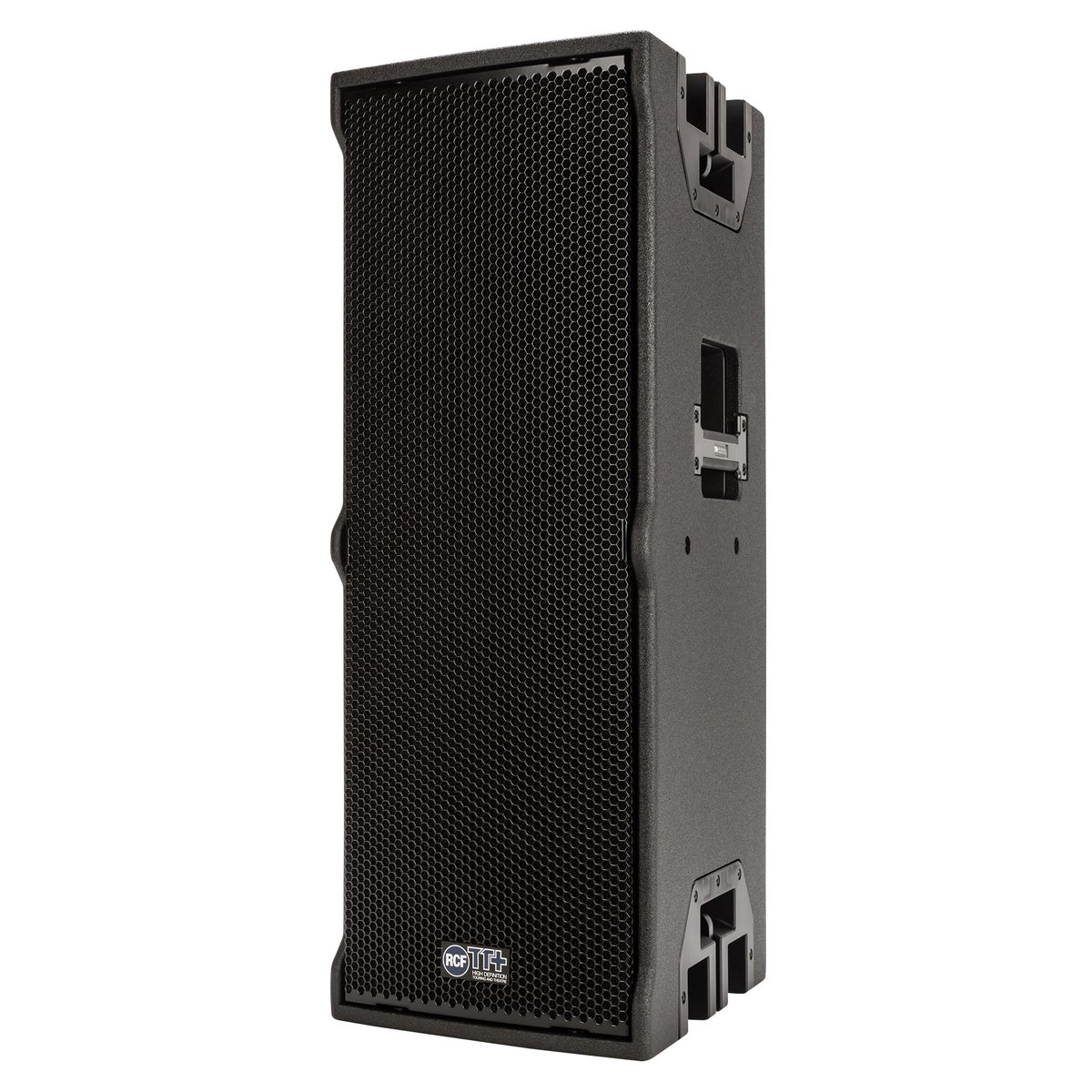

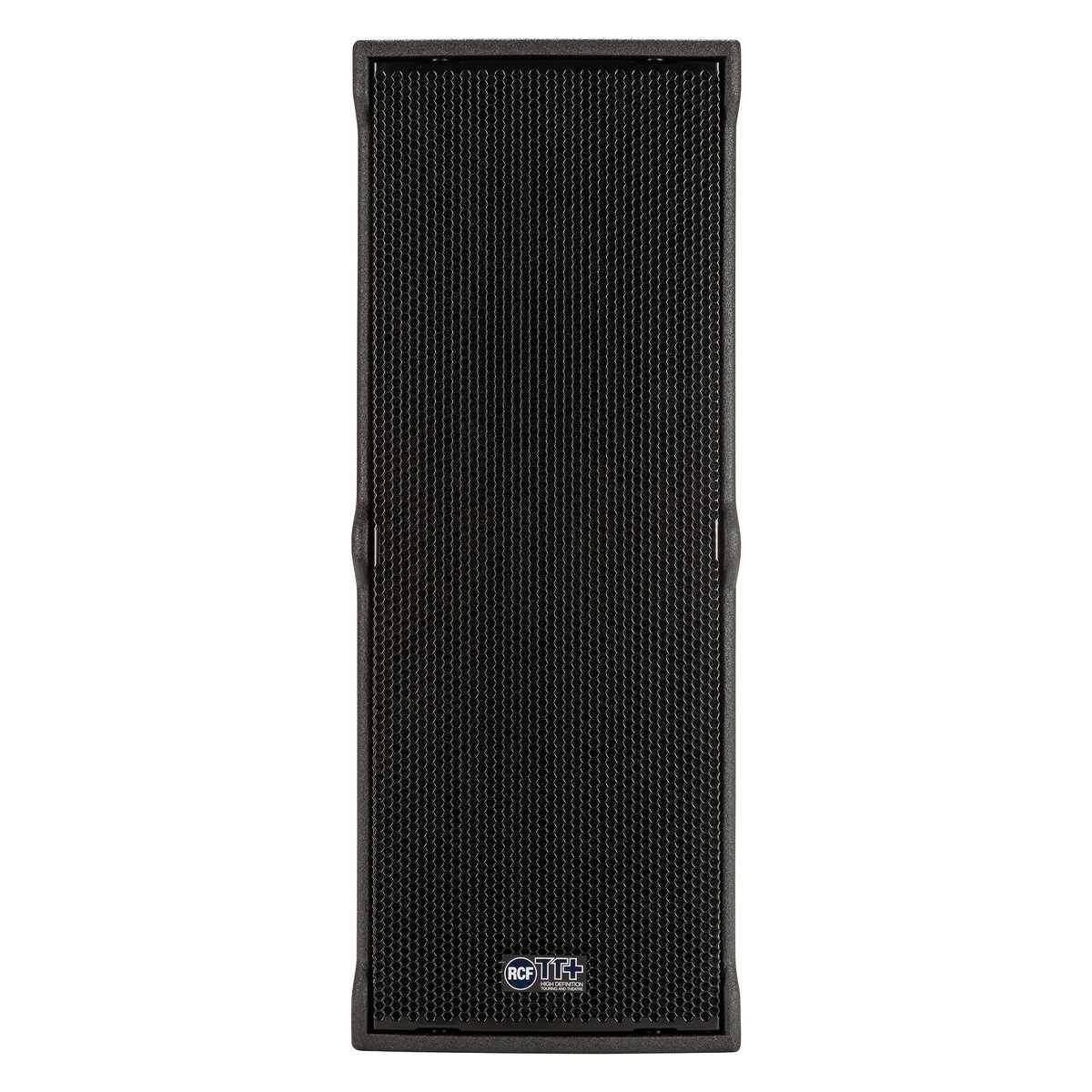

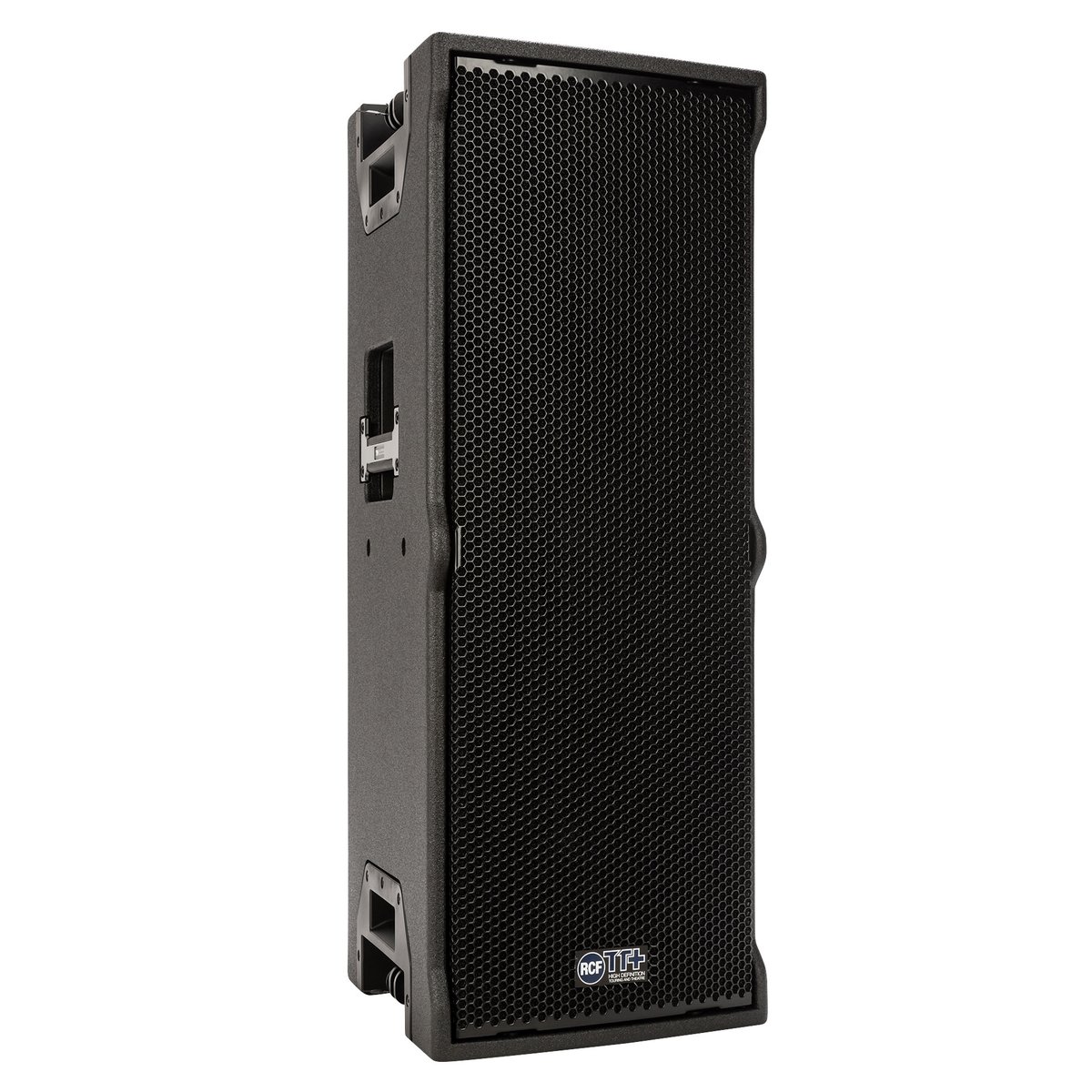

RCF TTL 4-A Active Two-Way Array Module

The TTL 4-A is a two-way array module for small to medium rooms and fields where a full line array is more rig than the show needs. Two 10-inch neodymium woofers on 3-inch voice coils and a 1.5-inch exit compression driver on a 4-inch voice coil run from a 3200 W peak, 1600 W RMS amplifier, giving 135 dB from 45 Hz to 20 kHz with a 100 by 25 degree pattern.

The 25 degree vertical window is the point: a short hang of three or four modules covers a room evenly without the setup time of a long array. TT+ rigging supports both flown and stacked configurations, RDNet over Ethercon handles per-module DSP, and the Baltic birch cabinet weighs 67.02 lbs.
