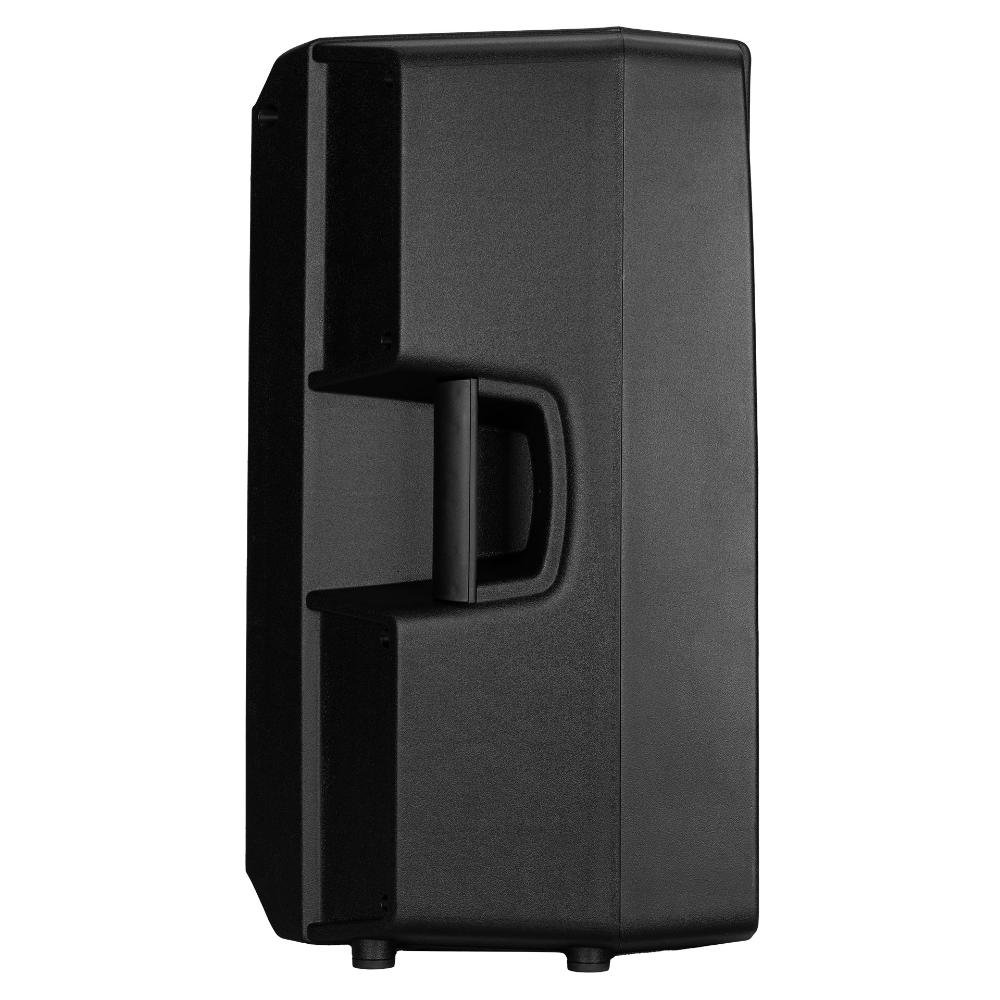

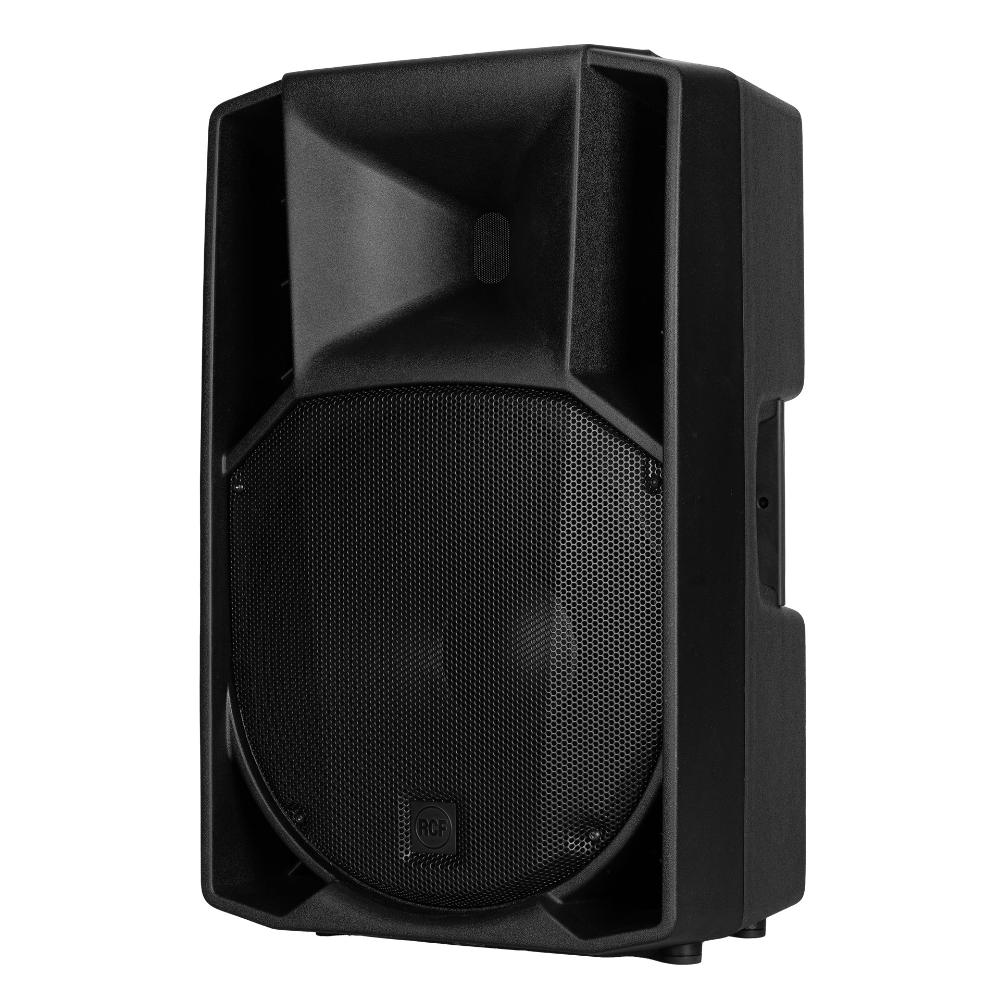

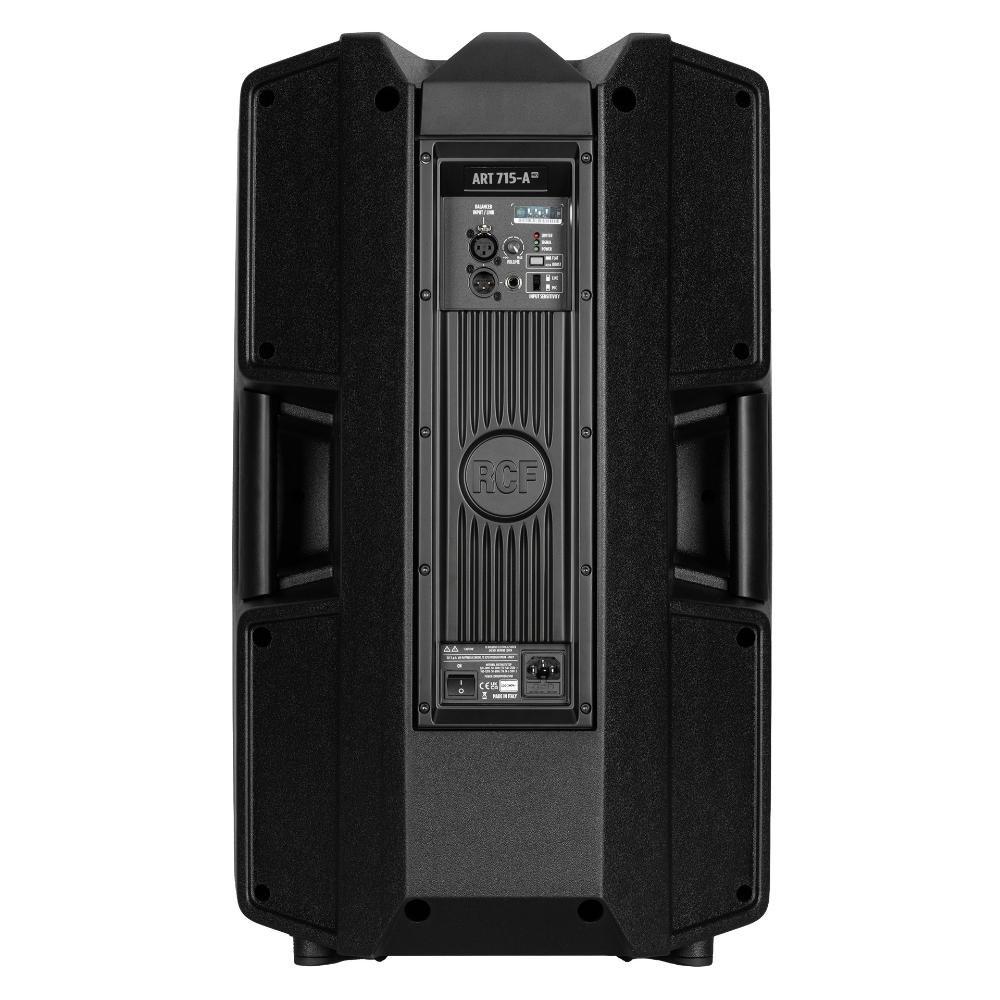

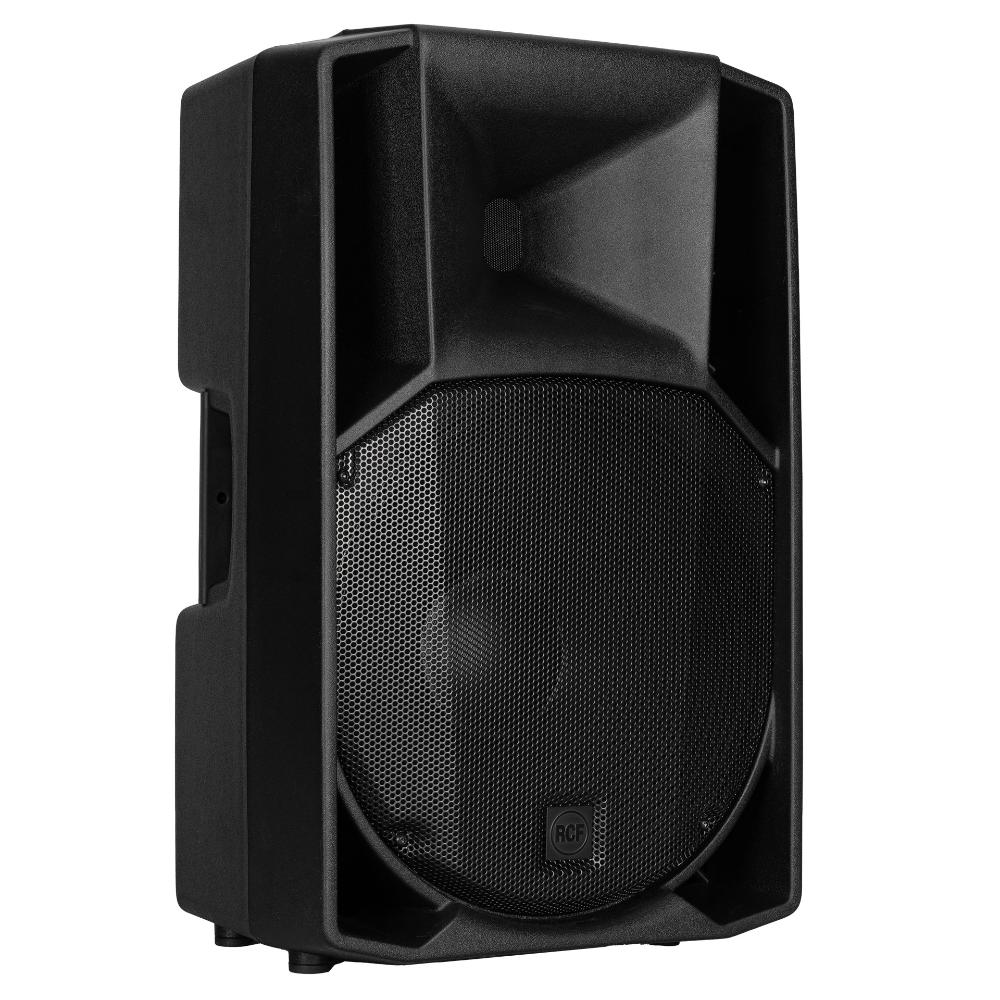

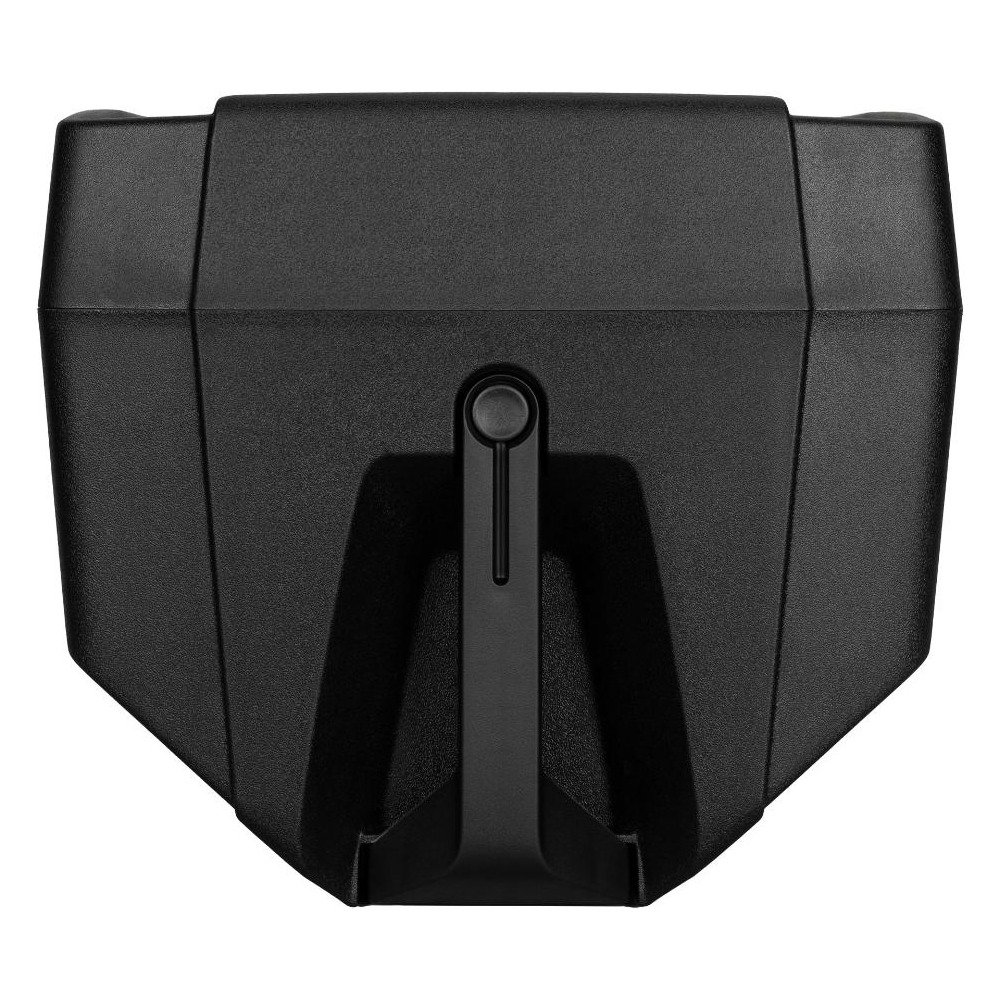

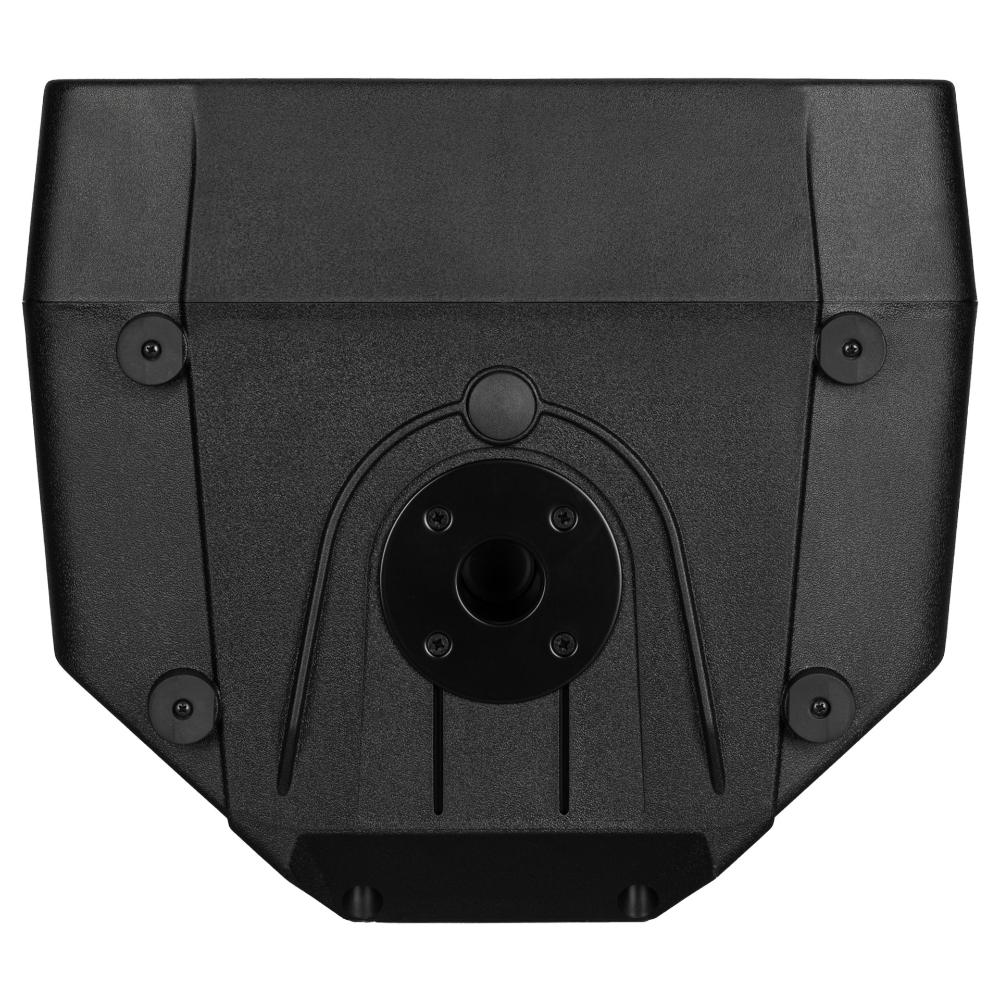

RCF ART 715-A MK5 Active Two-Way Speaker
The ART 715-A MK5 is the largest Kapton-driver model in the ART 7 MK5 line, a 15-inch two-way active speaker built for bands and DJs who need full-range output from a single box. The 1.75-inch compression driver and 15-inch woofer share a 1400W peak Class-D amplifier (1000W LF, 400W HF), reaching 130 dB SPL across a 90 by 60 degree pattern with a 45 Hz to 20 kHz response.
Onboard DSP runs crossover, EQ, phase alignment and soft limiting, and FiRPHASE processing keeps phase coherent through the crossover point while XBOOST extends low-end output when the room calls for it. The polypropylene composite cabinet resists vibration under load, and XLR/jack inputs plus an XLR output make it easy to daisy-chain a second cabinet or a sub.
| Configuration | Two-way active speaker |
|---|---|
| Woofer | 15" (2.5" voice coil) |
| Compression Driver | 1.75" Polyimide-Kapton dome (1.0" voice coil) |
| Amplifier Power | 1400W peak (1000W LF + 400W HF) |
| Max SPL | 130 dB @ 1m |
| Frequency Response | 45 - 20,000 Hz |
| Coverage | 90 x 60 degrees |
| Connectors | XLR/jack combo input (balanced/unbalanced), XLR output |
| Weight | 19.6 kg (43.21 lbs) |
