RCF ART 735-A MK5 Active Two-Way Speaker
The ART 735-A MK5 tops the titanium-driver models in the ART 7 MK5 range, pairing a 15-inch woofer with a 1.4-inch neodymium compression driver with a titanium diaphragm and 3.0-inch voice coil. The 1400W peak Class-D amplifier (1000W LF, 400W HF) reaches 132 dB SPL with a 45 Hz to 20 kHz response across a 90 by 60 degree pattern, giving bands and DJs a single box that can cover a room without a subwoofer.
Onboard DSP handles crossover, EQ, phase alignment and soft limiting, and the polypropylene composite cabinet keeps the 21.4 kg enclosure manageable on a pole or a stand. XLR/jack inputs accept balanced or unbalanced sources, and an XLR output loops to a second cabinet or a sub.
| Configuration | Two-way active speaker |
|---|---|
| Woofer | 15" (3.0" voice coil) |
| Compression Driver | 1.4" neodymium, titanium diaphragm (3.0" voice coil) |
| Amplifier Power | 1400W peak (1000W LF + 400W HF) |
| Max SPL | 132 dB @ 1m |
| Frequency Response | 45 - 20,000 Hz |
| Coverage | 90 x 60 degrees |

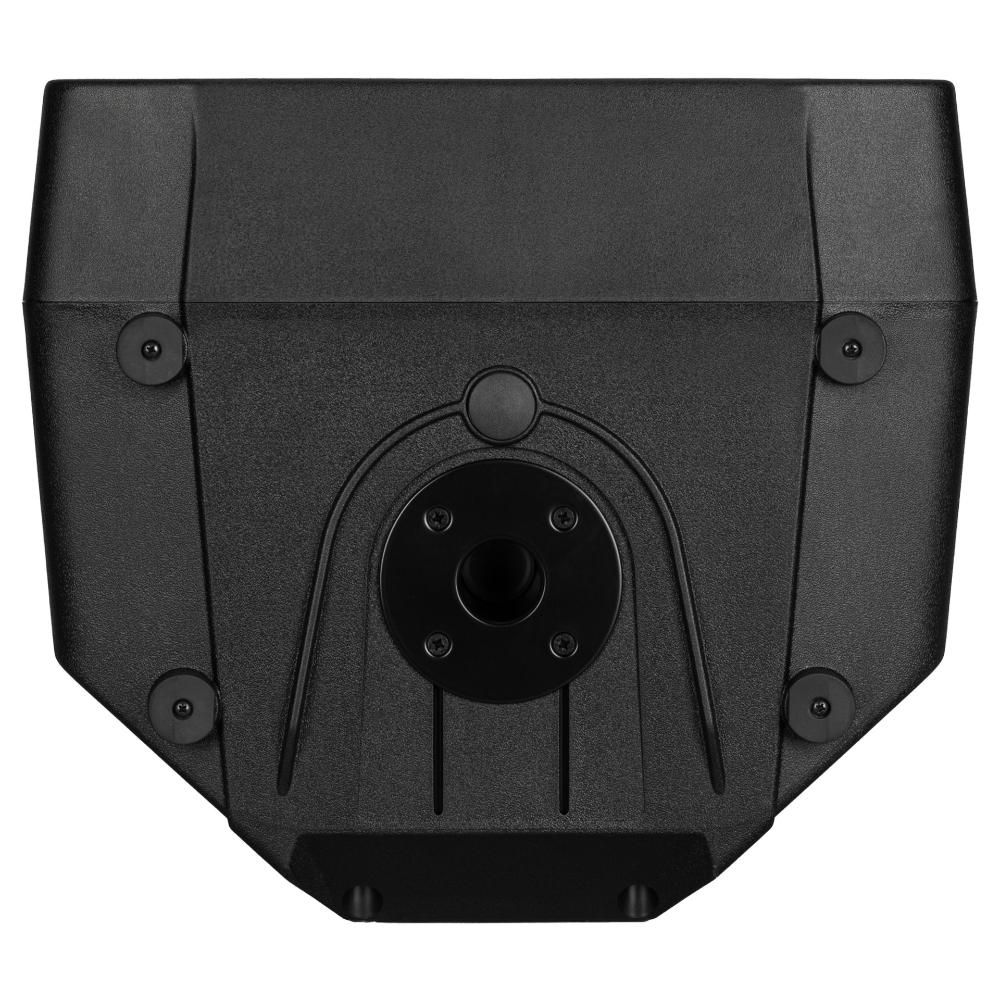

| Pole Mount | 35mm insert |

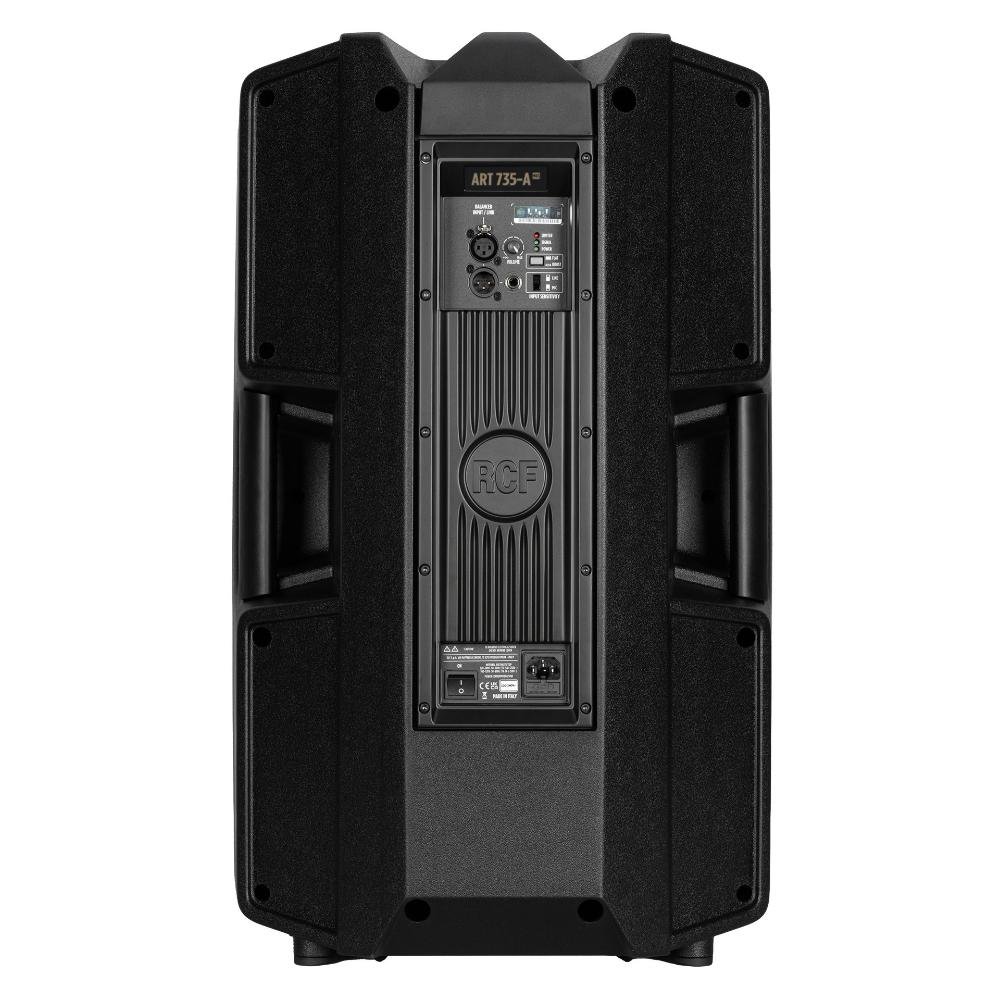

| Connectors | XLR/jack combo input (balanced/unbalanced), XLR output |
| Weight | 21.4 kg (47.18 lbs) |
