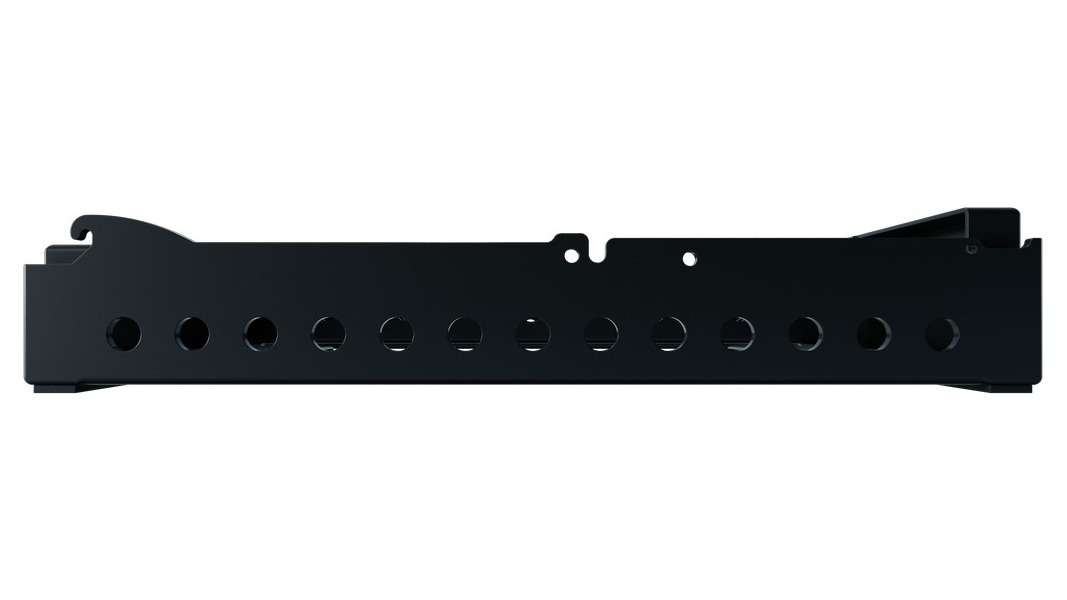

QSC LA112 Array Frame

The flying frame for an LA112 array: it suspends up to six (6) LA112 loudspeakers from a single pick. This is the part that turns a stack of LA112 boxes into a hung array, and it is the QSC frame for the cabinet, so the pin holes and the splay angles are the ones the rigging plot assumes.

It measures 108 x 583 x 600 mm / 4.3 x 23 x 23.6 in and weighs 11.6 kg / 25.5 lb, which matters when you are adding it to a load calculation. Pair it with the LA112 Stack Adapter Kit when the array has to go on top of a subwoofer instead of into the air.
