QSC Attero Tech Axon D2i 2-Input Dante/AES67 Wall Plate

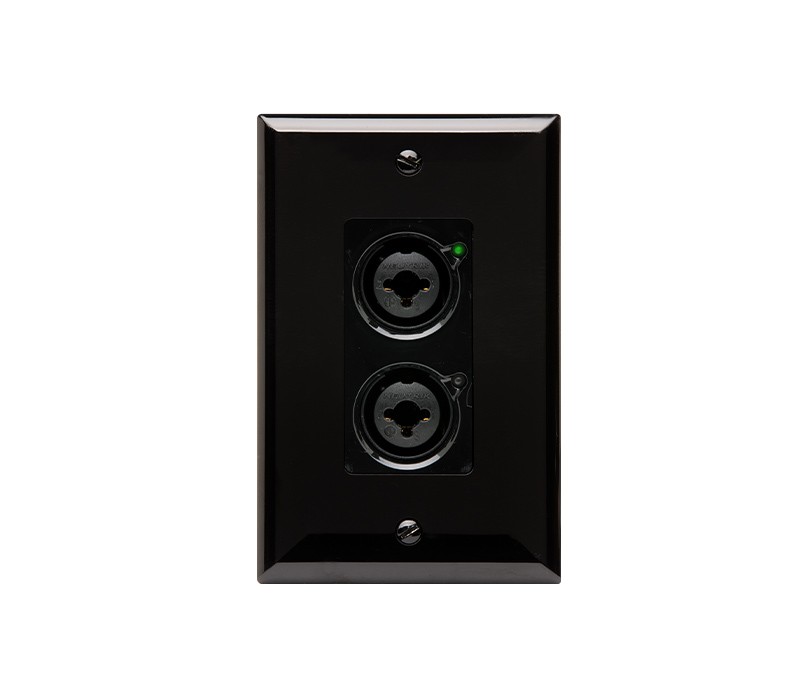

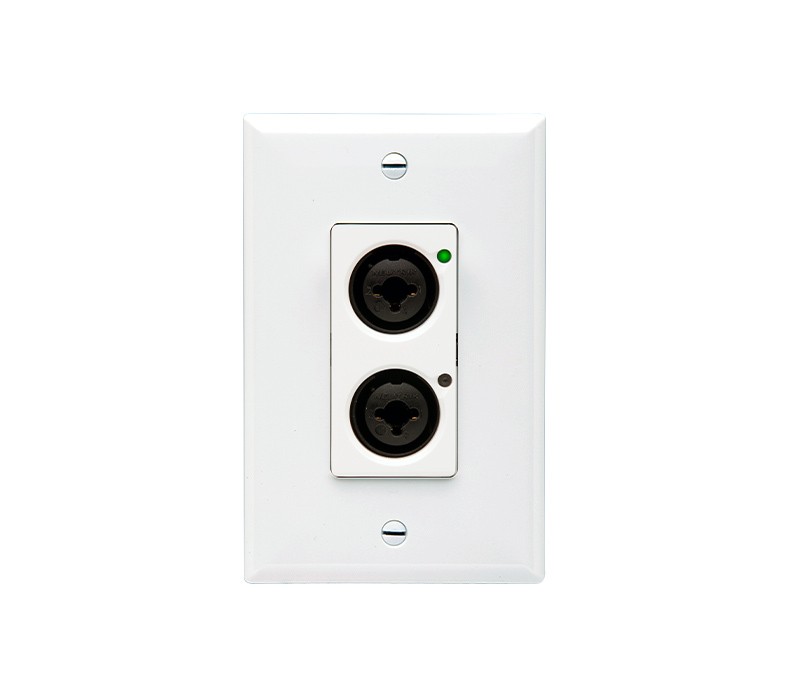

The Axon D2i puts two balanced mic/line inputs on the network from a single-gang plate, using combination XLR/TRS connectors so a handheld mic and a laptop feed can share the same device. It runs Dante with AES67 interoperability and draws 802.3af PoE, so one Cat run carries power, control and audio to wherever the inputs are actually needed.

XLR mic gain is adjustable from -8 dB to +34 dB in 1 dB steps; the TRS side is fixed with a 16 dB pad that accommodates +24 dBu line sources. A Q-SYS Extension is published for it, so integrators add it to a Q-SYS design without writing a custom control layer.

Input type	Combination XLR/TRS balanced mic/line connector
Gain	XLR (mic level): -8 dB to +34 dB, 1 dB steps TRS (line level): fixed 16dB pad accommodates +24 dBu input levels
Frequency response	20 to 20 kHz, +/- 1 dB at all attenuation settings
Physical layer	Analog audio, RS-232 control, 24 V DC power
Connector	8P8C
Transmission speed	100 Mbps
PoE power	802.3af Class 0

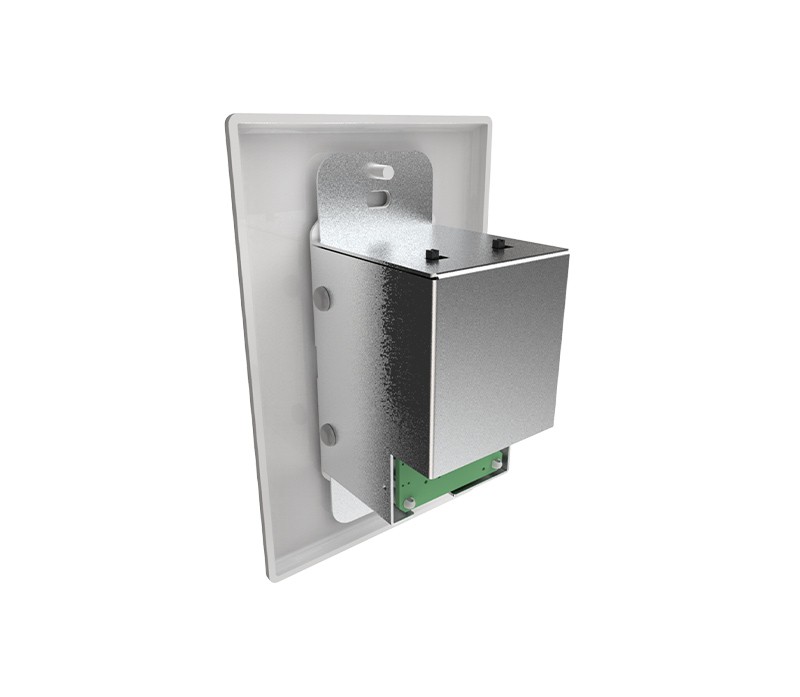

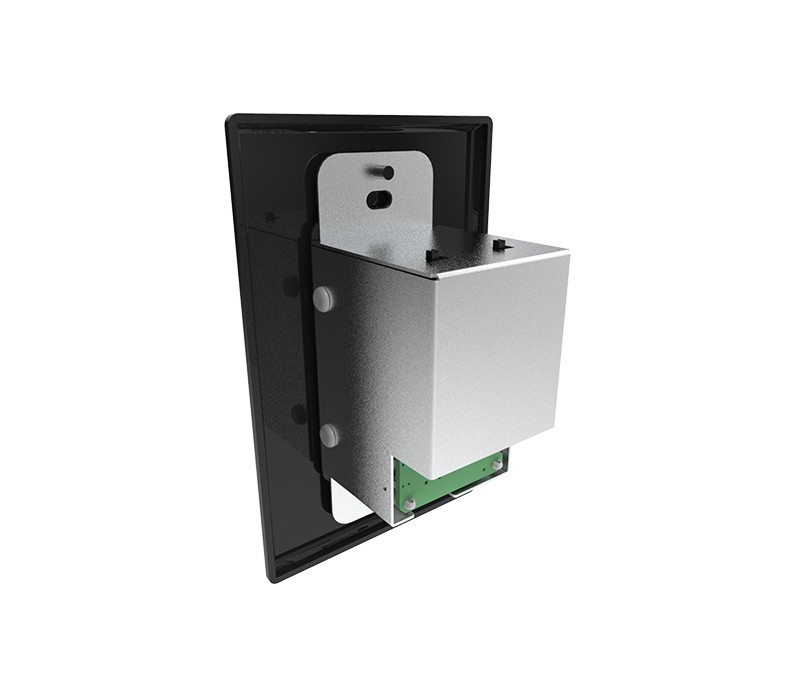

Dimensions (HWD)	4.2 x 1.7 x 2.1 in (106.7 x 43.2 x 53.3 mm) Decora wall plate (1-gang): 4.87 x 3.12 x 0.08 in (123.7 x 79.25 x 2.03 mm)
Weight	0.33 lbs (0.15 kg)
