QSC AD-C1200 High-Output Ceiling Speaker Baffle

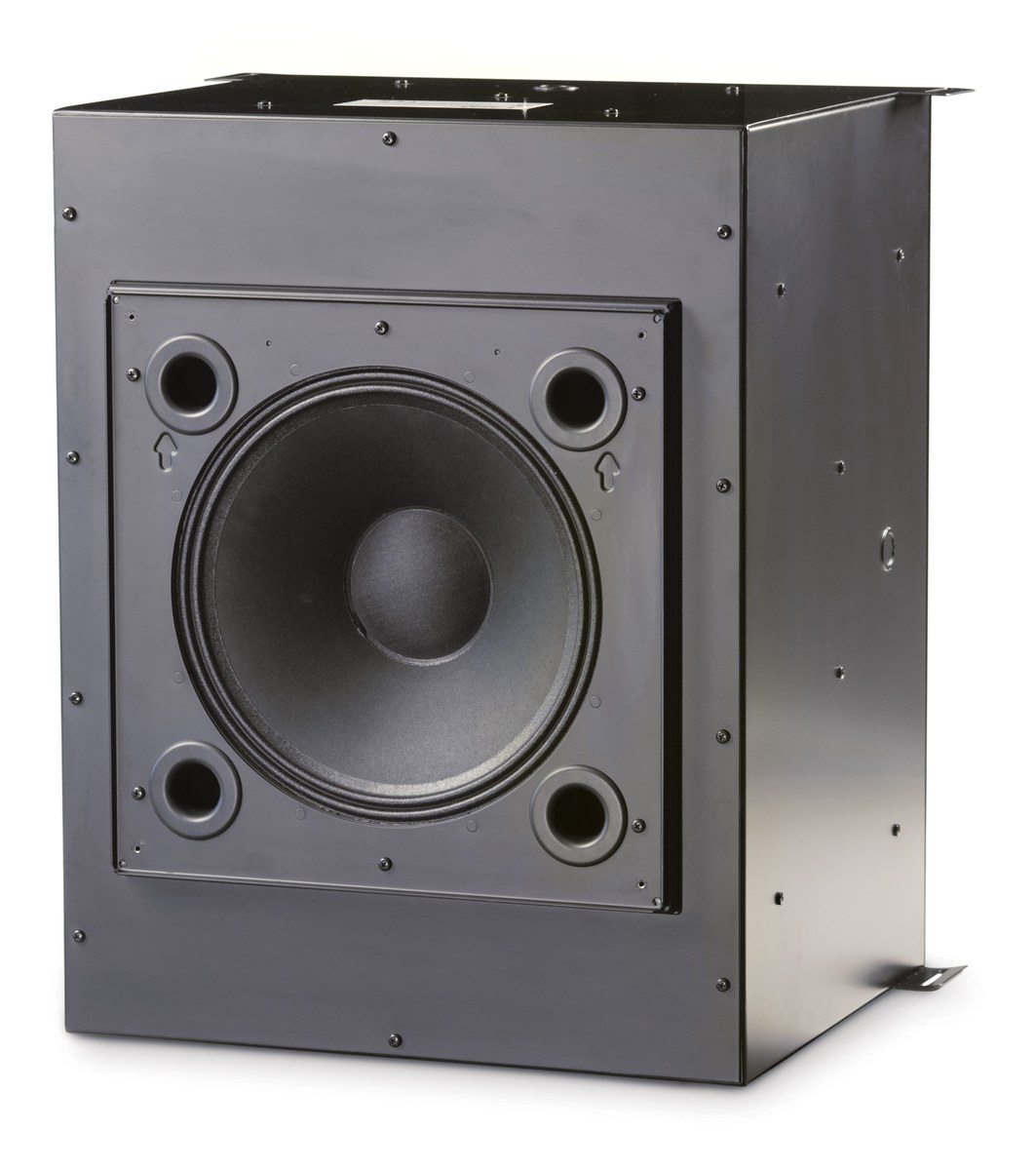

The AD-C1200 is the high-output member of QSC's AcousticDesign ceiling family, built for music playback and paging in rooms where a standard-size in-ceiling speaker runs out of headroom. A 12 inch treated paper woofer and a 1.75 inch compression driver fire coaxially through the center of the cone for a smooth transition at crossover, and a factory-mounted 70V/100V transformer with a 16 ohm bypass ships on the baffle.

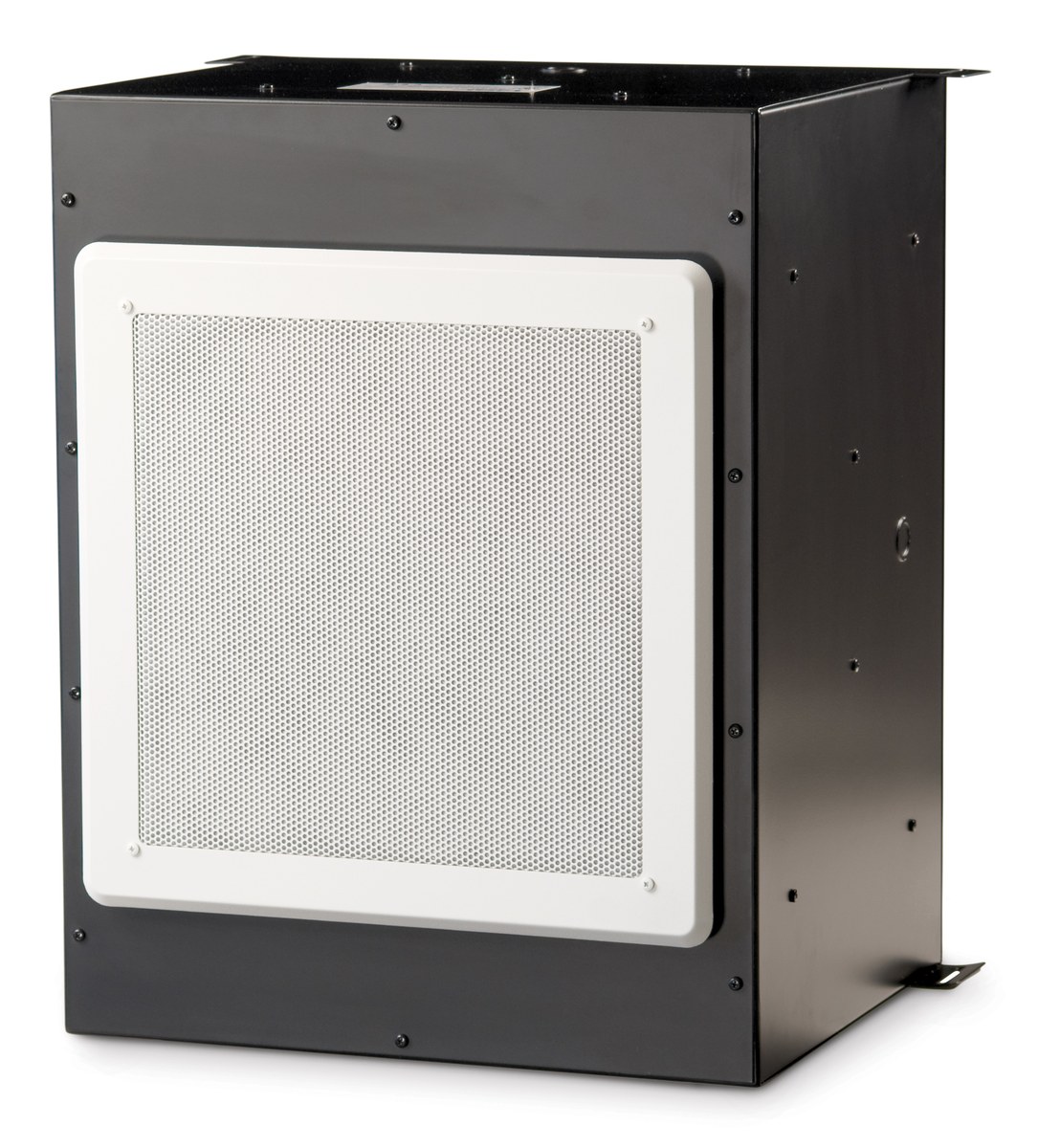

The AD-C1200 is the transducer, transformer, and crossover baffle only; it mounts to QSC's AD-C1200BB enclosure or to any roughly 2.5 cubic foot enclosure using industry-standard mounting dimensions, and the AD-C1200SG square grille finishes the installation.

LF Transducer	12 in ferrite woofer
HF Transducer	1.75 in neodymium compression driver
Frequency Response (-6 dB)	42 Hz - 18,000 Hz
Nominal Coverage	85 degrees horizontal and vertical
RMS Power Handling	300 W (600 W recommended max amp power)
Sensitivity	93 dB SPL, 1 W / 1 m
Transformer Taps	70V: 16 ohm bypass, 150/75/37.5/18.2 W; 100V: 16 ohm bypass, 150/75/37.5 W
Net Weight	25 lb (11.3 kg), baffle only
