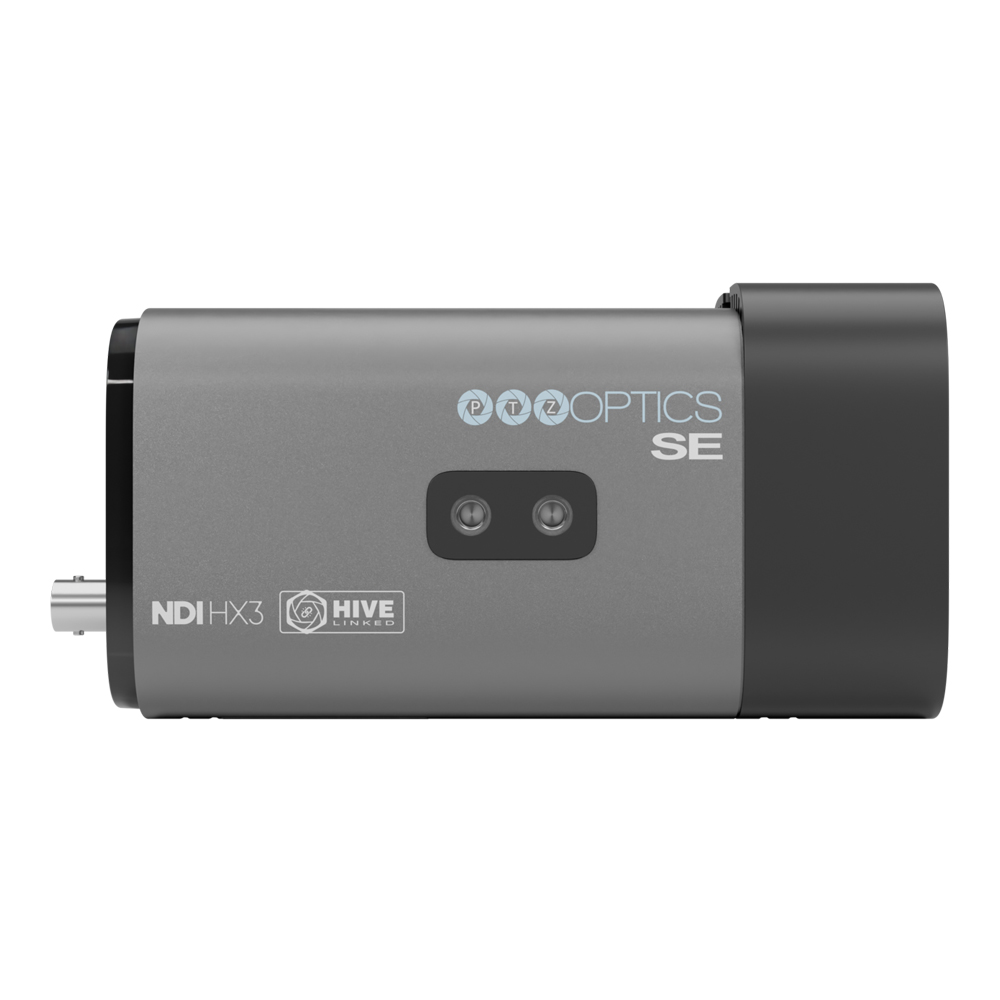

PTZOptics Studio SE 20X Fixed Conferencing Camera
The 20x model in the Studio SE line shares the 12x model's 1/2.8-inch 8MP CMOS sensor and fixed box body, but runs a longer lens at f=4.7 to 94mm, F1.6 to F3.6, narrowing the horizontal field of view to 3.5 to 60.7 degrees for a tighter frame from further back. A 16x digital zoom stacks on top of the optical range.
Output runs simultaneously over NDI HX3 (RJ45), HDMI 2.0, USB 3.0 Type-C and 3G-SDI, both maxing out at 1080p60, so the same camera feeds a switcher, a laptop and an NDI network at once. Presets hold to 0.1 degree accuracy across 255 slots, and the body is aluminum and plastic in gray or white.
| Image Sensor | 1/2.8 inch CMOS, 8MP (8.4M effective pixels) |
|---|---|
| Optical Lens | 20x, f = 4.7 - 94mm, F1.6 - F3.6 |
| Field of View (H/V) | 3.5 - 60.7 deg / 1.9 - 34.1 deg |
| Digital Zoom | 16x |
| Max Resolution | 1920x1080p60 over both HDMI 2.0 and 3G-SDI |
| Outputs | RJ45 (NDI HX3), HDMI 2.0, USB 3.0 Type-C, 3G-SDI (BNC) |
| Presets | 255, 0.1 degree accuracy |
| Dimensions / Weight | 5.7 x 2.99 x 3.09 in (145 x 76 x 78.5mm), 1.4 lbs |
