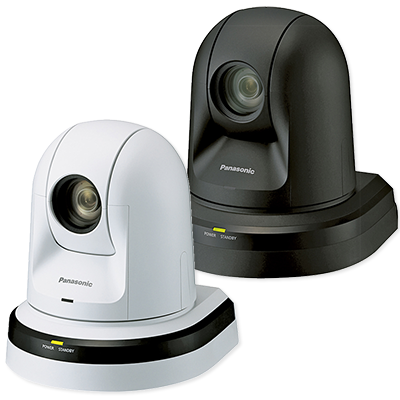

Panasonic AW-HE40SW Full HD Integrated PTZ Camera

The AW-HE40SW is a Full HD integrated pan/tilt/zoom camera built around a 1/2.3-type MOS sensor and a 30x optical zoom lens, with intelligent zoom that extends reach to 40x and a 1.4x digital extender for tight close-ups from the back of a room. It pans ±175 degrees and tilts from -30 to +90 degrees at up to 90 degrees per second, and it stores up to 100 preset positions for repeatable shots in a fixed install. The white housing keeps the camera unobtrusive in houses of worship, lecture halls, and studios where a dark body would draw the eye.

This SDI model carries Full HD over HD-SDI for a locked, low-latency feed into a production switcher, and it streams the same picture over IP for monitoring and control. It supports PoE+ for single-cable installation or runs on 12V DC from the supplied adapter. Pair it with an AW-RP150 or AW-RP60 controller for joystick pan, tilt, zoom, and focus across a multi-camera rig.
