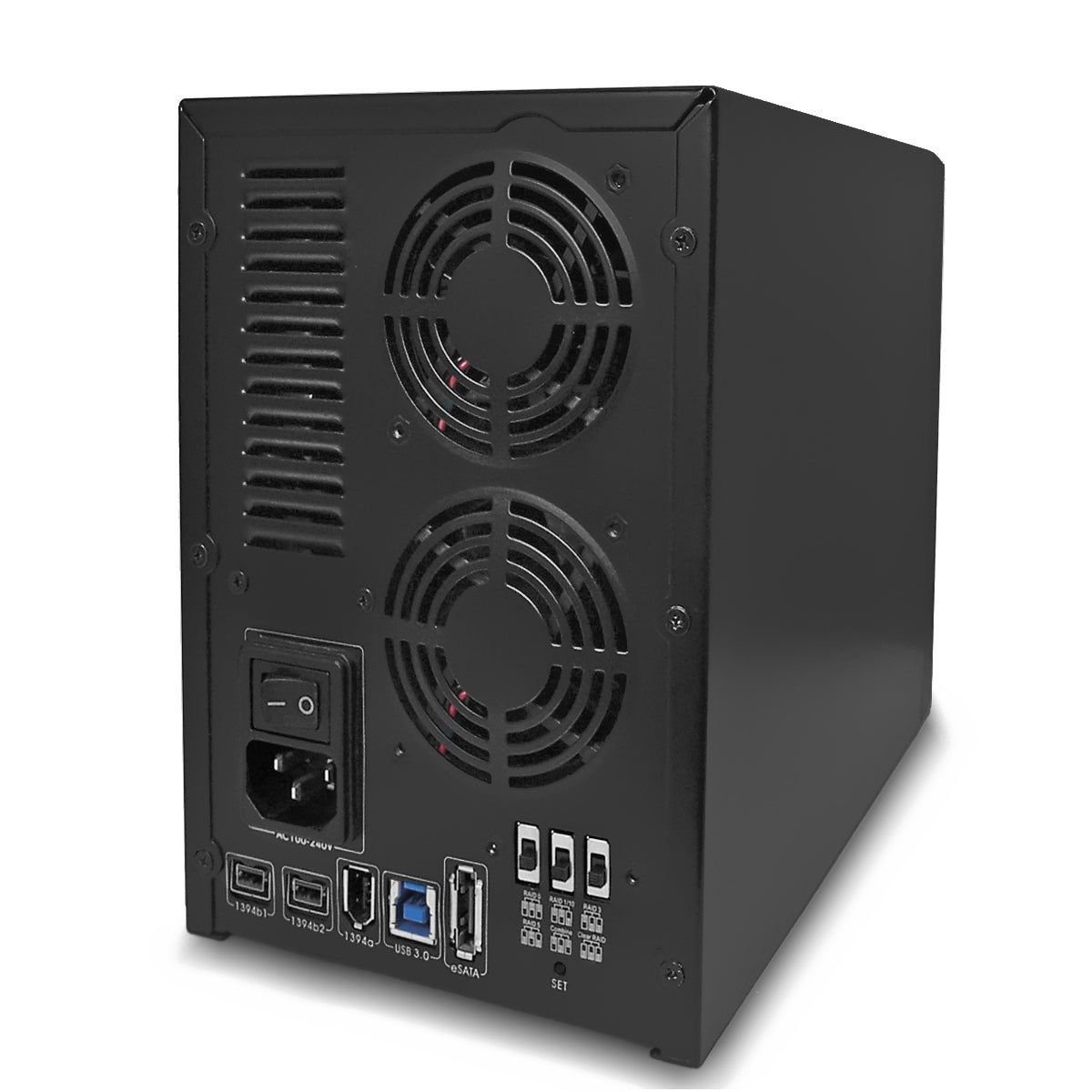

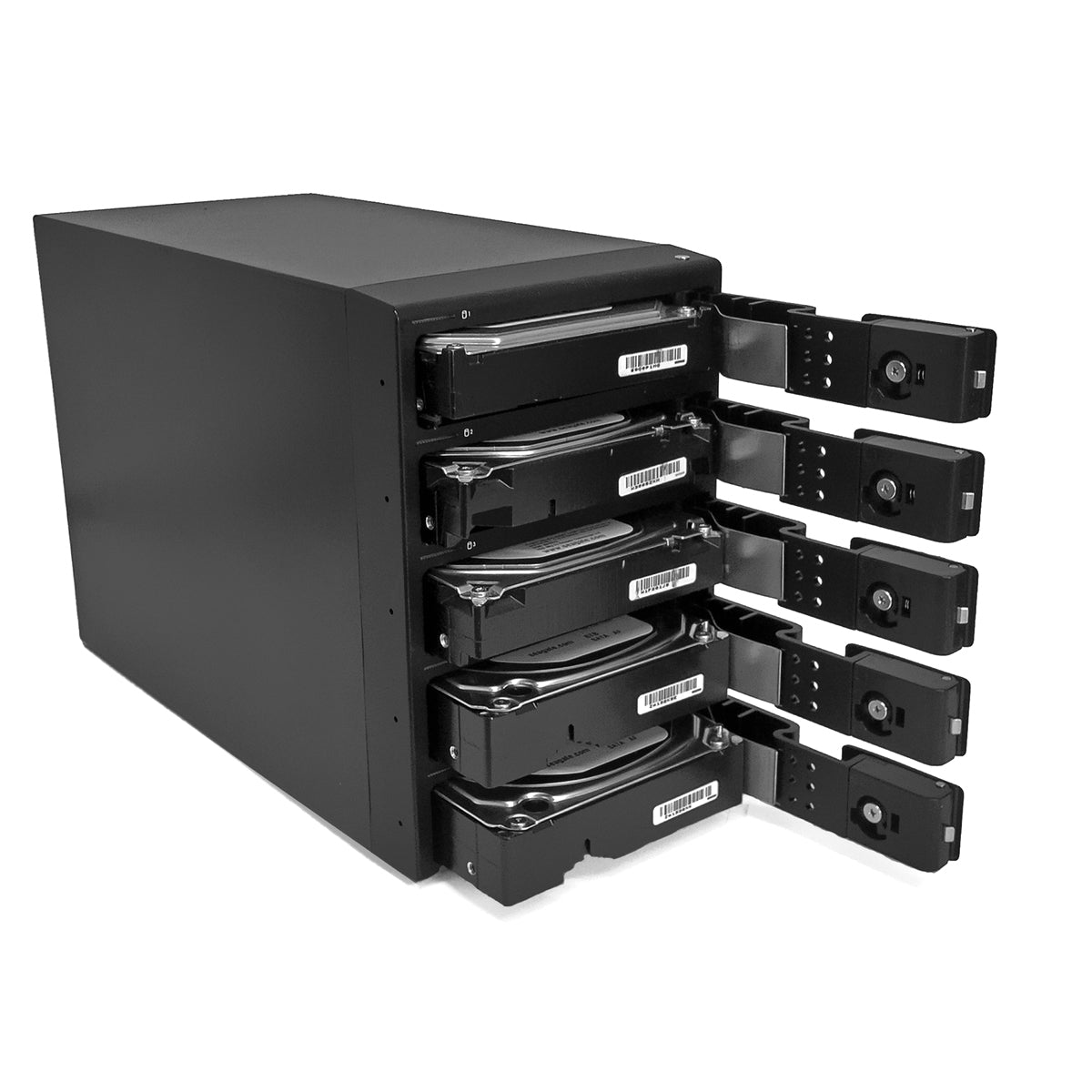

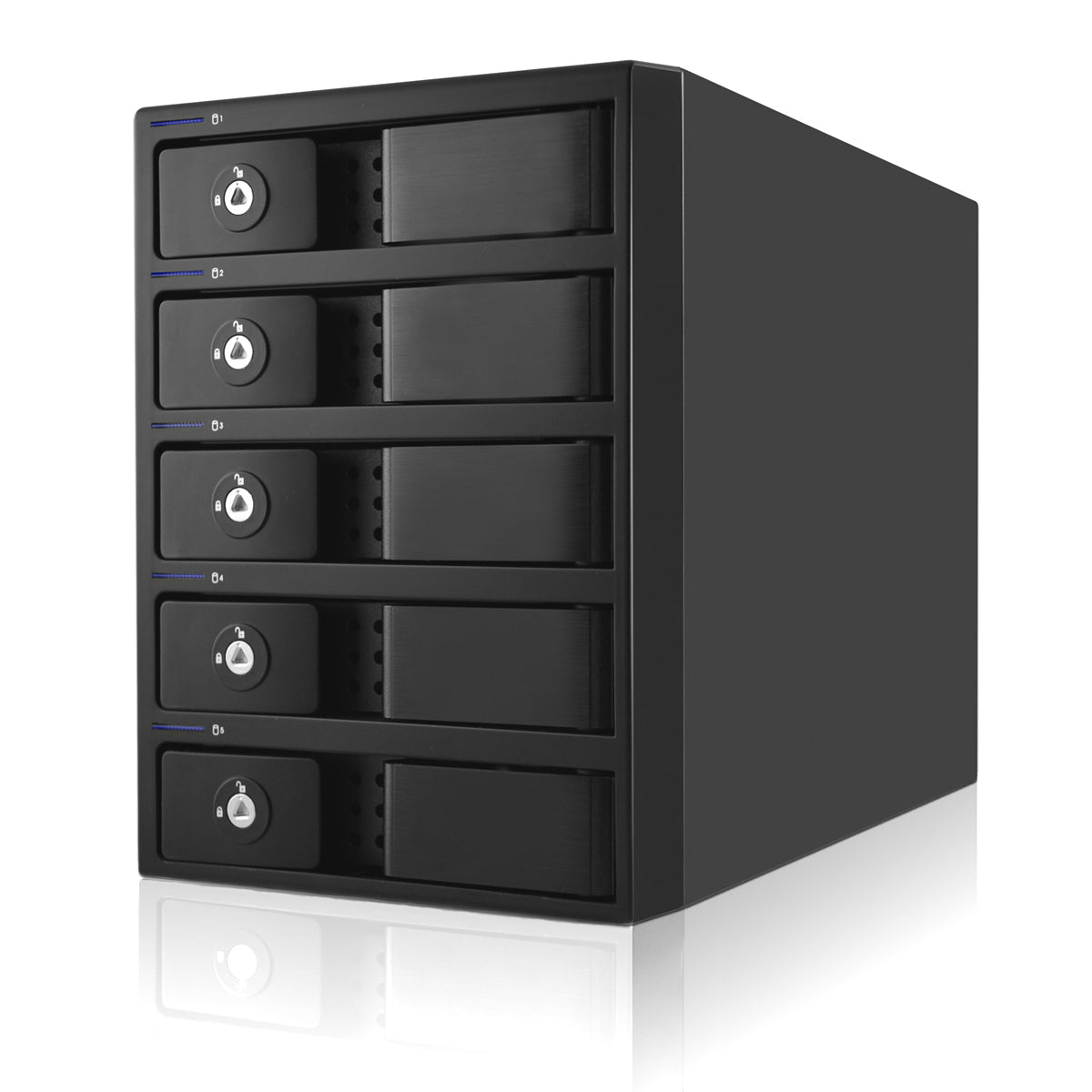

Oyen Digital Mobius 5-Bay FW800, eSATA, USB 3.0 RAID System
The Mobius 5-Bay FW800, eSATA, USB 3.0 RAID System is a multi-bay Oyen Digital array for editors who need a working volume that keeps up with the timeline instead of a backup target. It connects over USB 3.0, Firewire 800 1394b, eSATA and presents the drives to the host as one volume.
Internal drive interface is Toshiba Enterprise 7200RPM (x 5). The chassis measures 10.3 x 5.4 x 7.3 inches (L x W x H). Power is Input= AC 100~240VAC. Cooling is Sunon Maglev HA60251V4-000U-999, 13.8 dB(A) x 2. Host requirements: Compatible with Windows, Mac, Linux.
| Ports | USB 3.0, Firewire 800 1394b, eSATA |
|---|---|
| Internal Drives | Toshiba Enterprise 7200RPM (x 5) |
| RAID Modes | JBOD (default), RAID 0, RAID 1, RAID 3, RAID 5, RAID 10, Combine |
| Fan | Sunon Maglev HA60251V4-000U-999, 13.8 dB(A) x 2 |
| Power | Input= AC 100~240VAC |
| Dimensions | 10.3 x 5.4 x 7.3 inches (L x W x H) |
| Certifications | CE, FCC |
| Requirements | Compatible with Windows, Mac, Linux |
| Manufacturer Part Number | 3R5-EB3-100TB |
