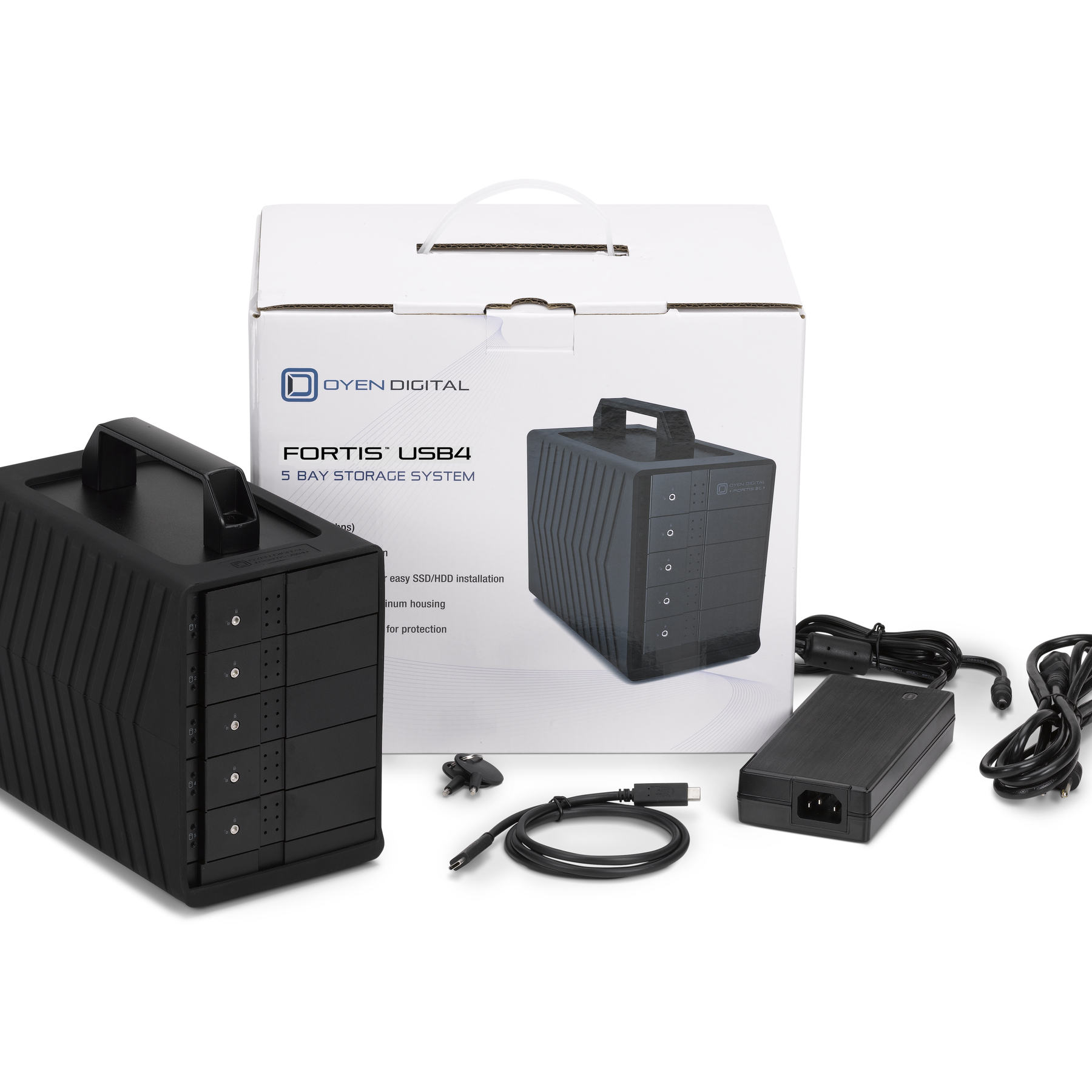

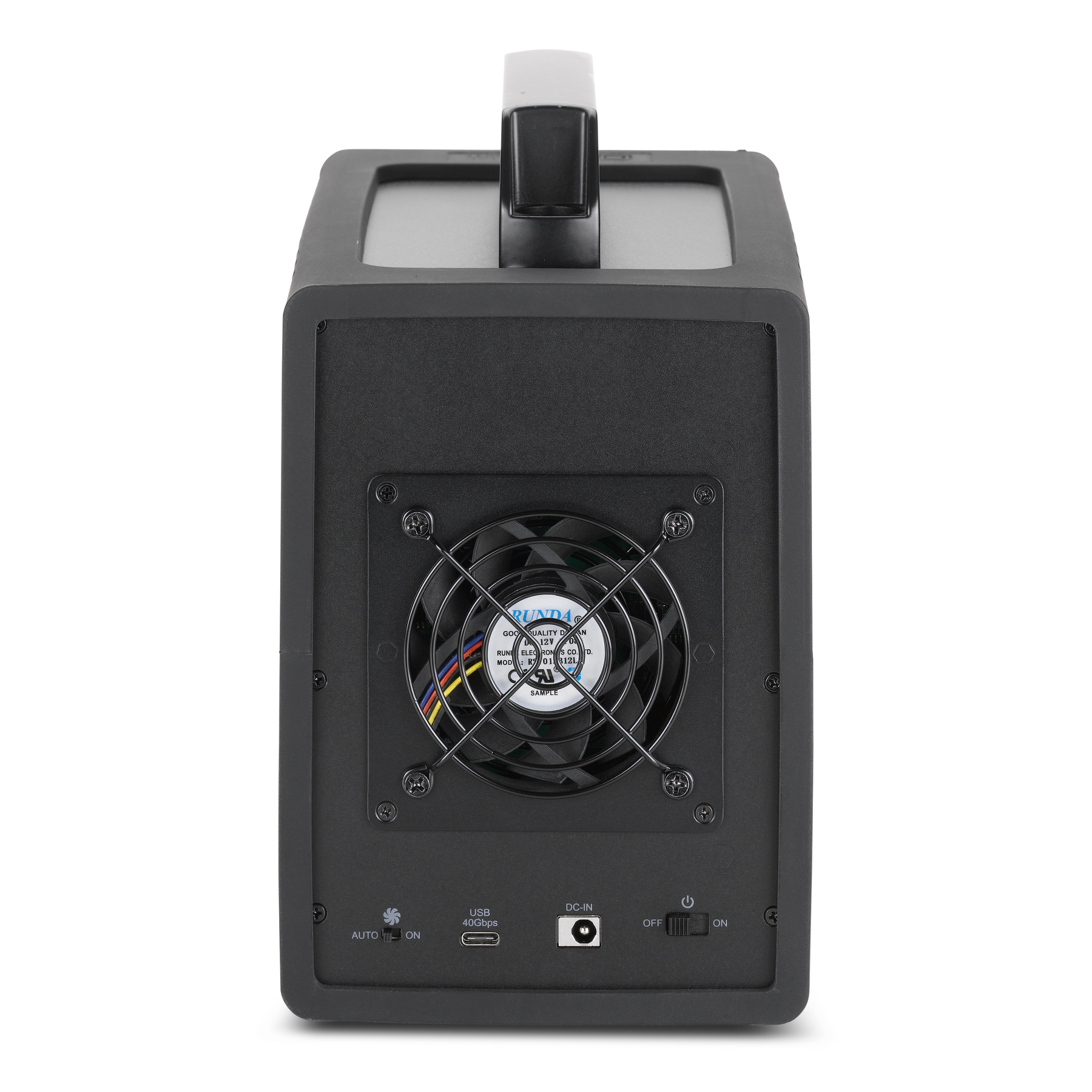

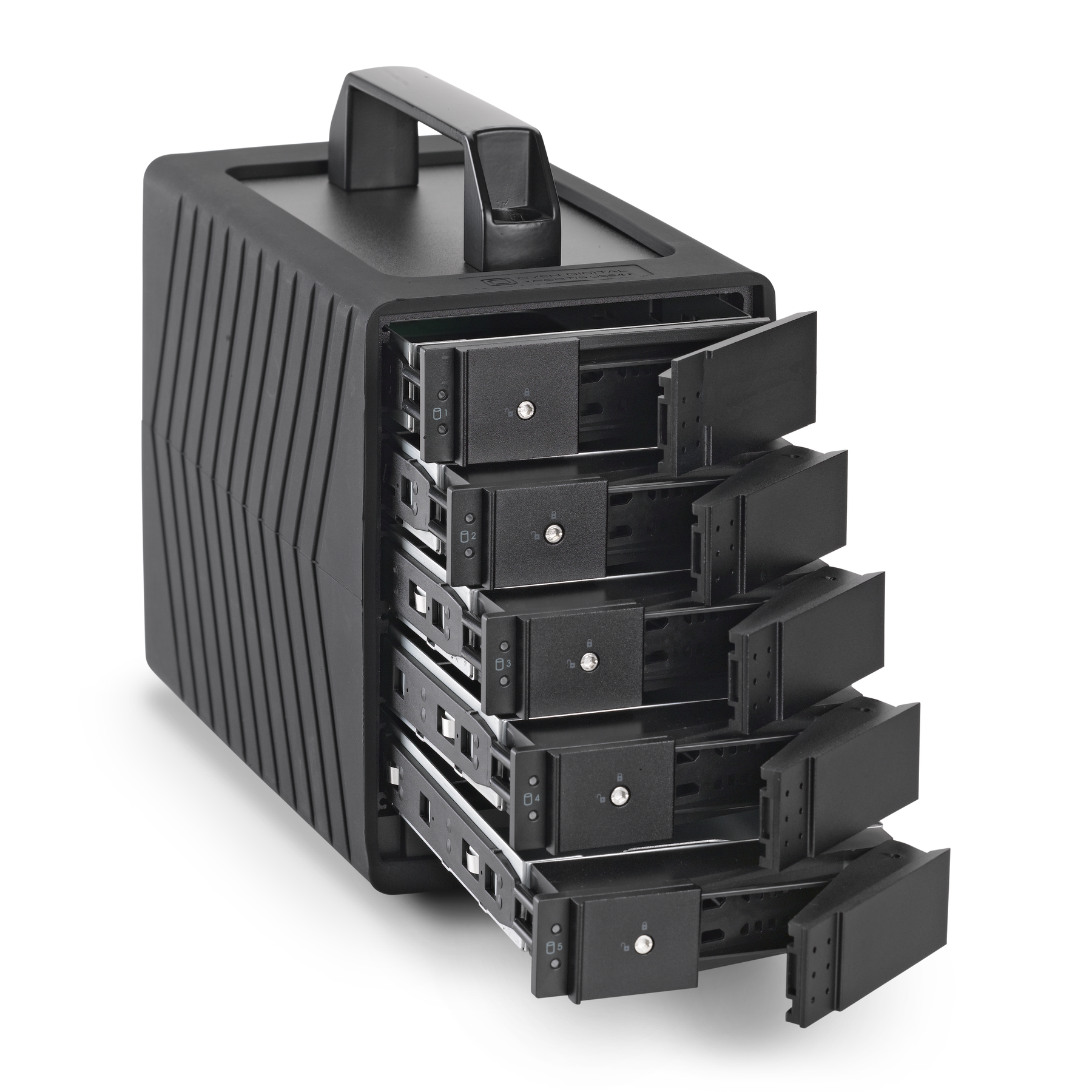

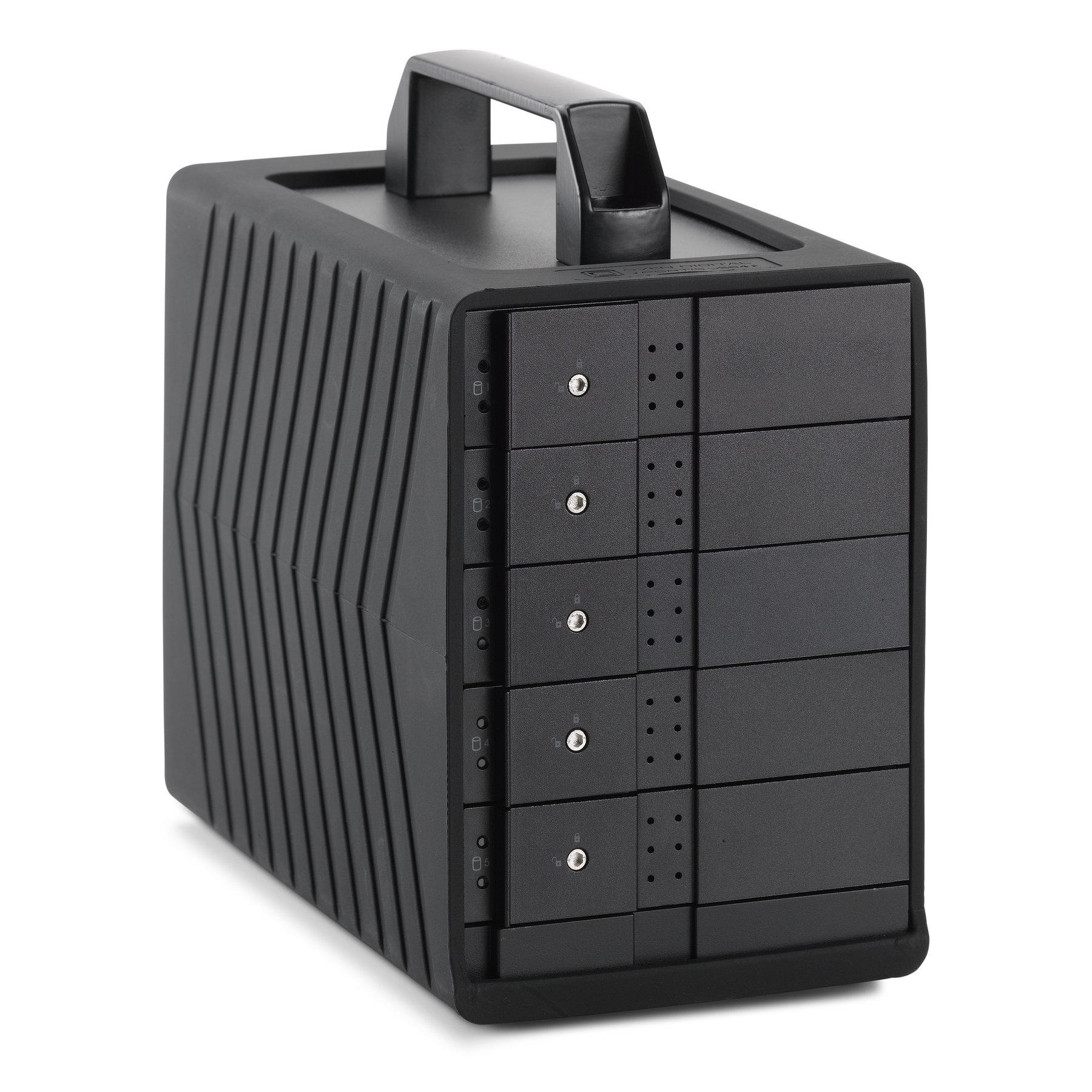

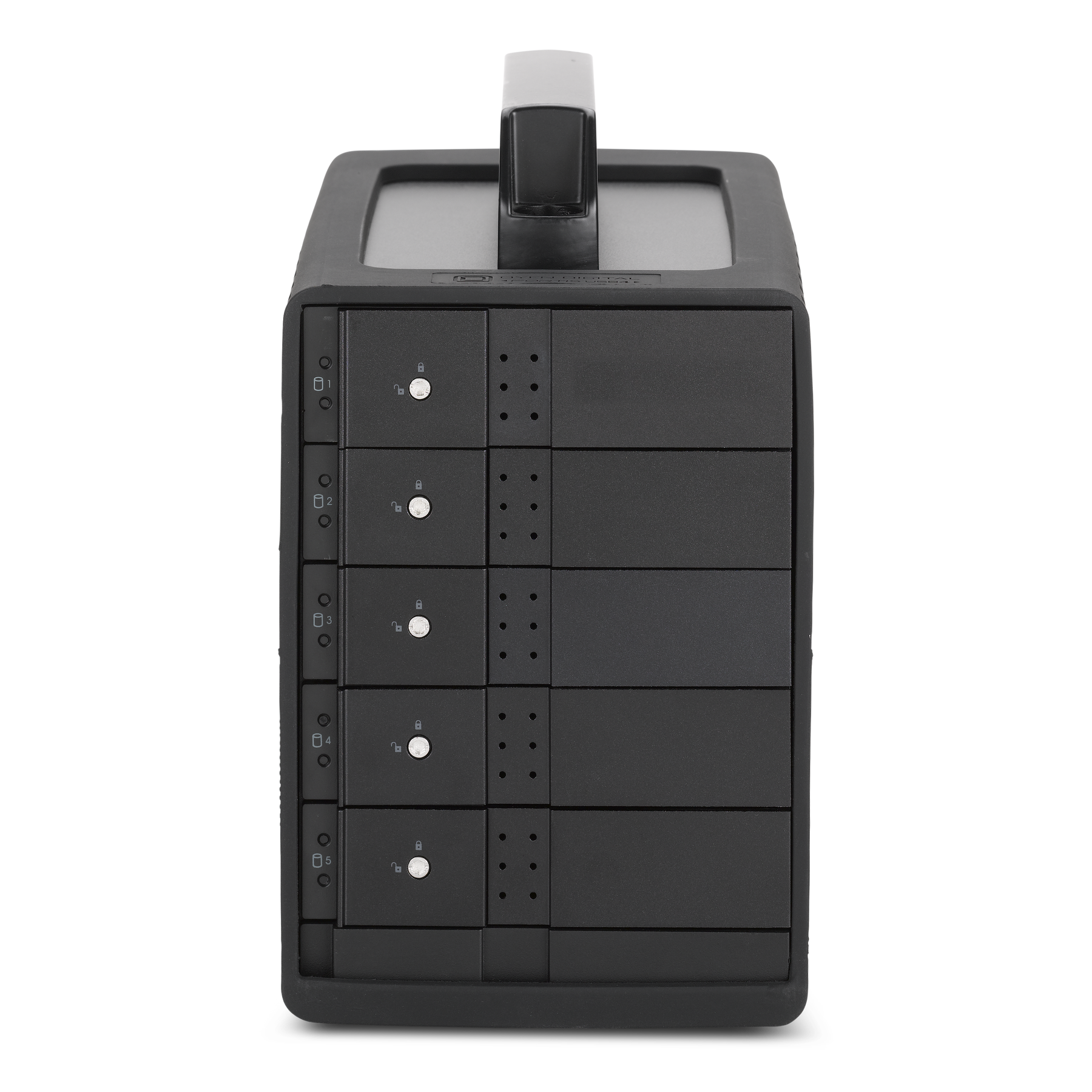

Oyen Digital Fortis USB4 5-Bay 40Gbps External Drive
The Fortis USB4 5-Bay 40Gbps External Drive is a multi-bay Oyen Digital array for editors who need a working volume that keeps up with the timeline instead of a backup target. It connects over USB-C (USB4). Compatible with all USB4 and Thunderbolt 3,4,5. Not compatible with USB 3.x and presents the drives to the host as one volume.
The controller is ASMedia ASM2464PDX. Internal drive interface is SATA. The chassis measures 8.3 x 4.9 x 6.8 inches (L x W x H). Power is Input= AC 100~240V, Output= 12V/13A (156W). Cooling is 3000RPM, 30.4 dBA (at full speed). Host requirements: Compatible with Mac, Windows. Oyen Digital backs it with a 3 years warranty.
| Main Port | USB-C (USB4). Compatible with all USB4 and Thunderbolt 3,4,5. Not compatible with USB 3.x |
|---|---|
| Internal Interface | SATA |
| Dimension | 8.3 x 4.9 x 6.8 inches (L x W x H) |
| Chipset | ASMedia ASM2464PDX |
| Fan | 3000RPM, 30.4 dBA (at full speed) |
| Power | Input= AC 100~240V, Output= 12V/13A (156W) |
| Operating Temp | 32F ~ 158F |
| Certifications | CE, FCC |
| Requirements | Compatible with Mac, Windows |
| Warranty | 3 years |
| Manufacturer Part Number | 5FU4-C |
