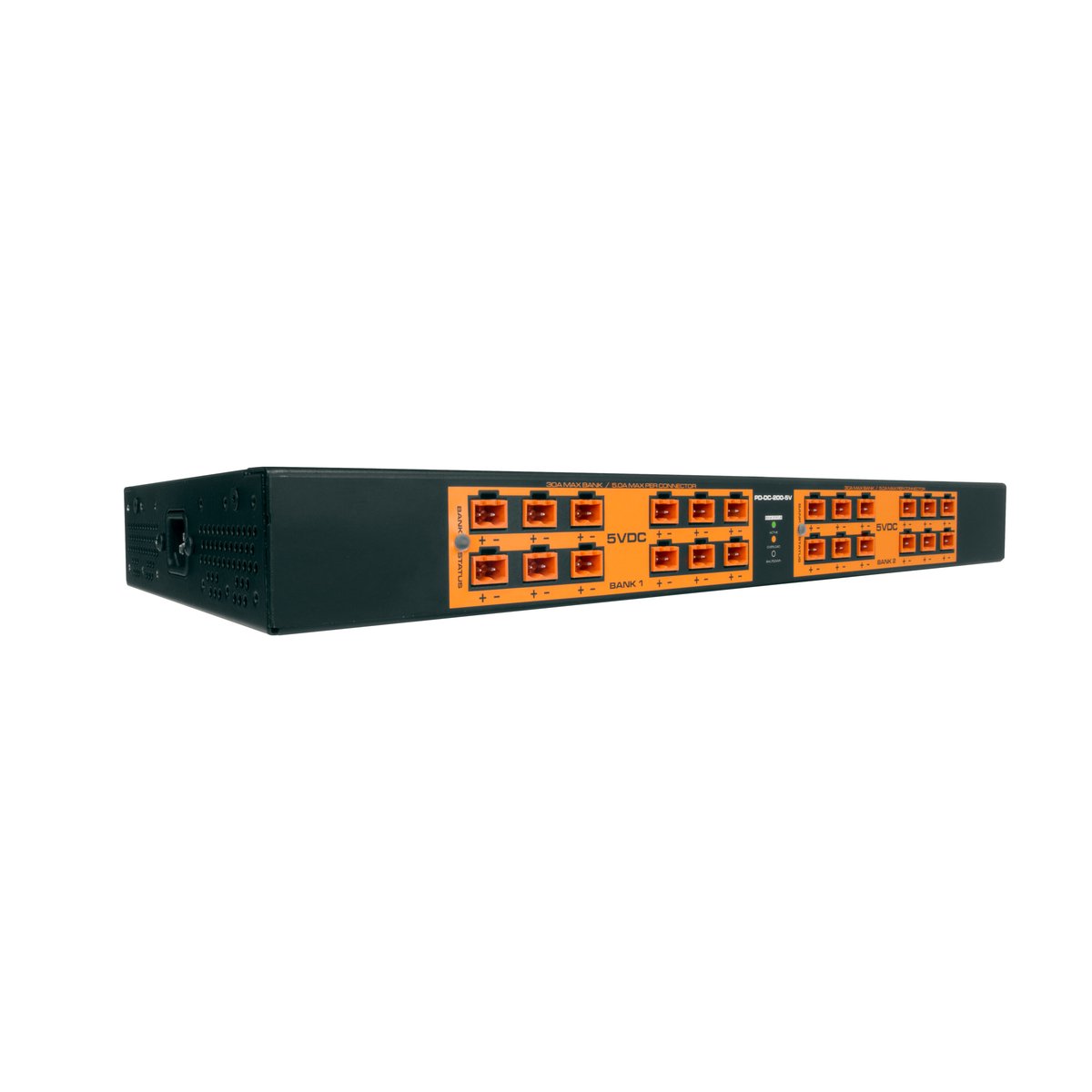

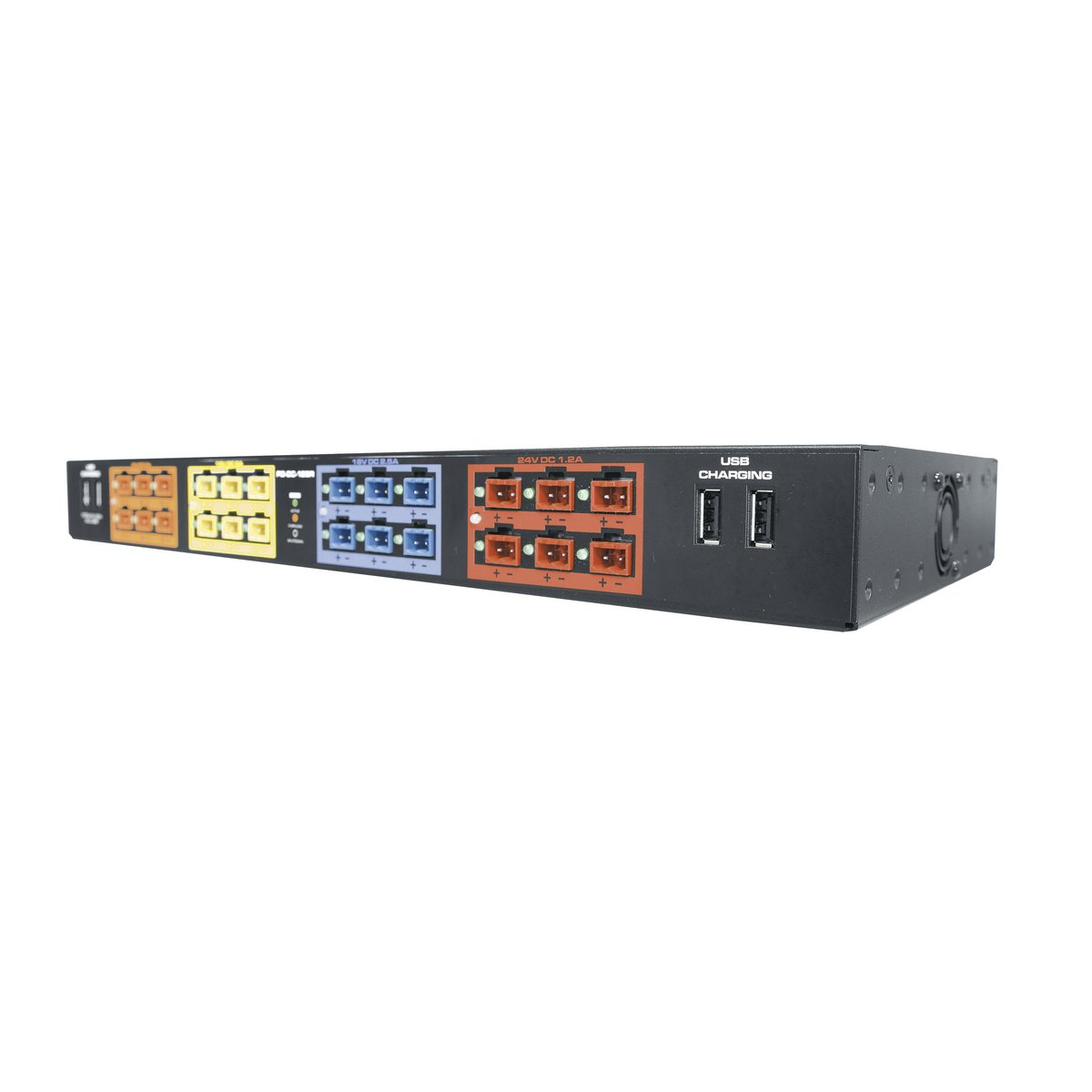

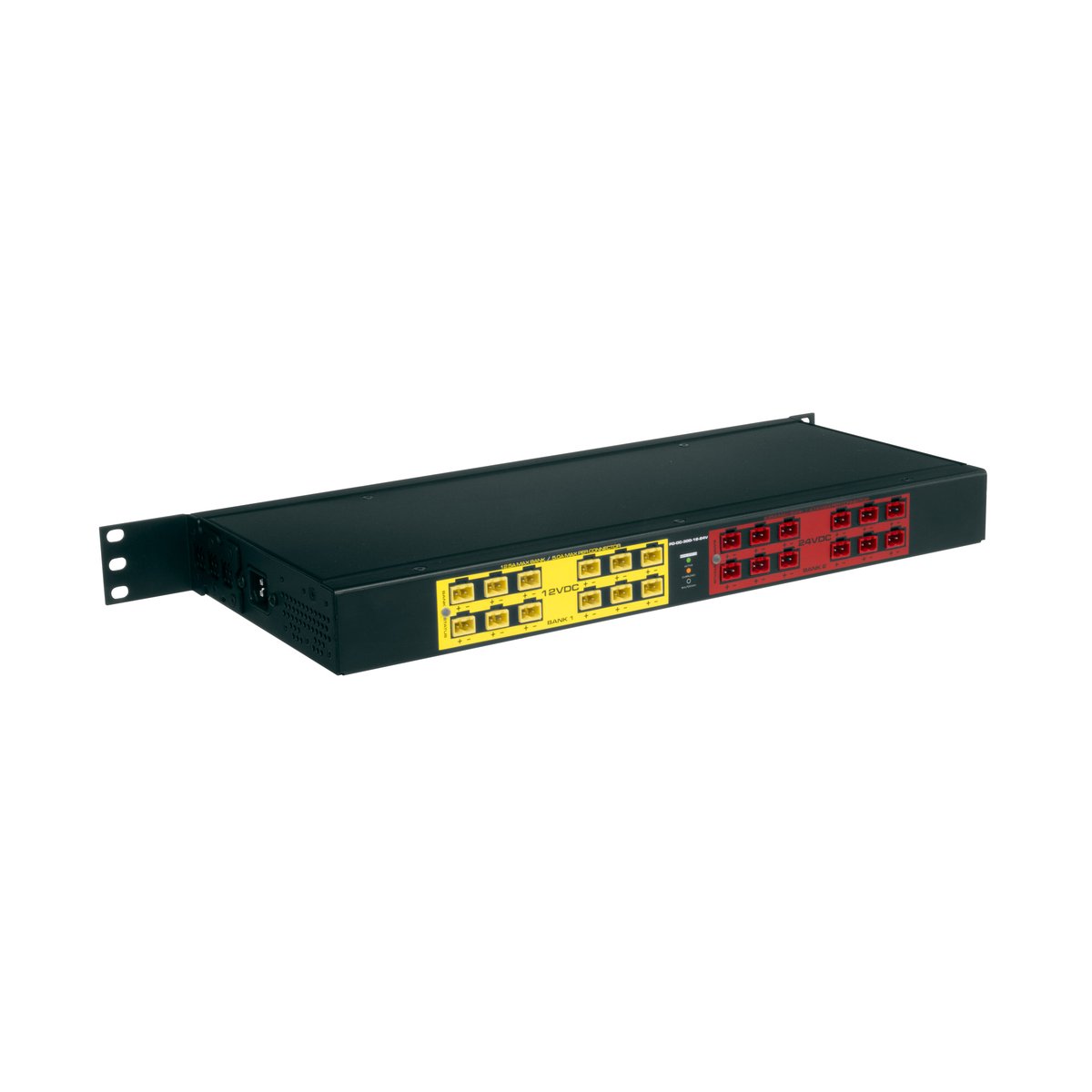

Middle Atlantic Select Series DC Power Distribution

Select Series DC Power Distribution replaces a rack full of wall warts and power strips with one unit that feeds low-voltage AV, security and networking devices. The range powers as many as 24 devices from a single AC input, either all at one voltage or split between the common ones, and its reversible, adjustable ears mount it in a rack, small enclosure or wall box, even on the side or back of the rack.

Every output has its own auto-resetting PTC overload protection, the AC input has surge and overload protection, and LEDs show activity per output and capacity per voltage bank. Color-coded screw terminals mark 5 V orange, 12 V yellow, 18 V blue and 24 V red, cords can be trimmed to length, and a thermostatic fan keeps it cool. This page carries six models from 45 W to 300 W, all with a 6 ft IEC cord.

  • Output ProtectionAuto-resetting PTC per output
  • Power Cord6 ft IEC
  • Product TypeDC Power
  • Width9.93 - 19 in
  • Height1.69 - 1.75 in
SeriesSelect Series DC Power Distribution
Product TypeDC Power
Width9.93 - 19 in
Height1.69 - 1.75 in
Outlets12, 24
PlugNEMA 5-15P
Watts45, 125, 200, 300
Surge Protection2-Stage
Output ProtectionAuto-resetting PTC per output
TerminalsColor-coded screw terminals
CoolingThermostatic, speed-controlled fan
Power Cord6 ft IEC
