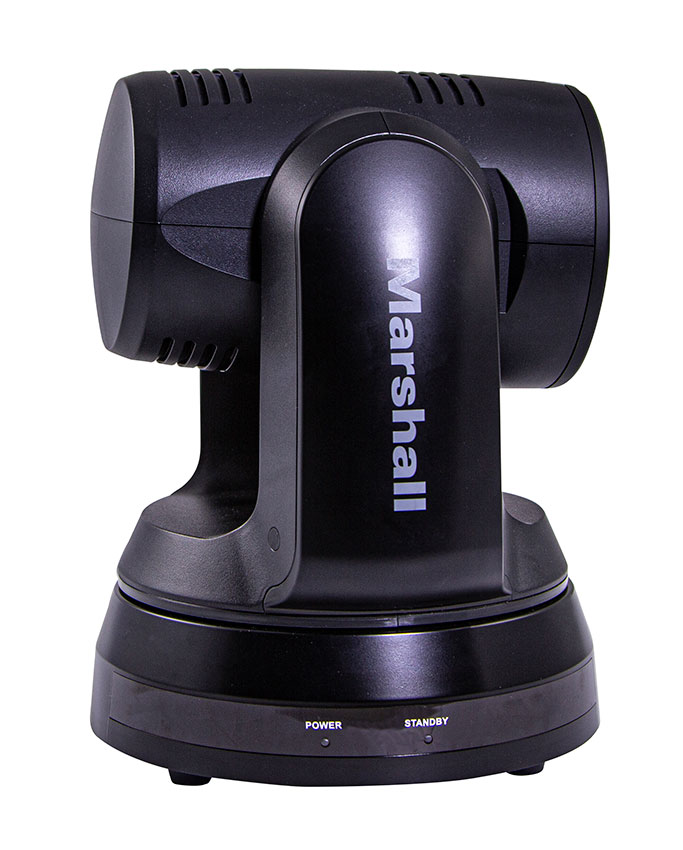

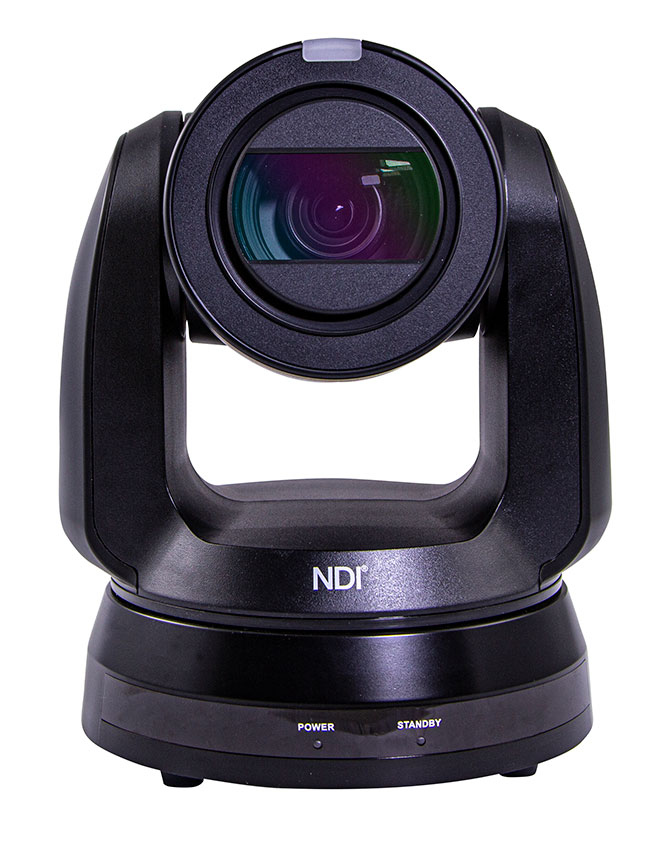

Marshall Electronics CV730-BHN 30x UHD60 NDI PTZ Camera

The CV730-BHN uses a 9.2-megapixel Sony IMX334 sensor with a 30x optical zoom (6.5-202mm) to capture UHD video at 3840x2160p up to 60fps, holding a field of view from 63 degrees wide down to 3 degrees at full telephoto. It outputs simultaneously across 12G-SDI, 3G-SDI, HDMI 2.0, USB 3.0 and Ethernet, including NDI, NDI|HX3 and SRT streaming, so one camera covers a house SDI feed and a networked NDI production at the same time.

Pan runs +/-170 degrees at up to 160 degrees per second, with tilt from -30 to +90 degrees at the same rate for fast, precise reframing. It runs on PoE++ or a 12V supply at up to 40 watts.

SensorSony IMX334, 1/1.8 inch, 9.2 MP
Optical Zoom30x (6.5-202mm)
Viewing Angle63 deg wide to 3 deg telephoto
Video Resolutions4K UHD, 1080p, 720p at 59.94/50/29.97/25fps

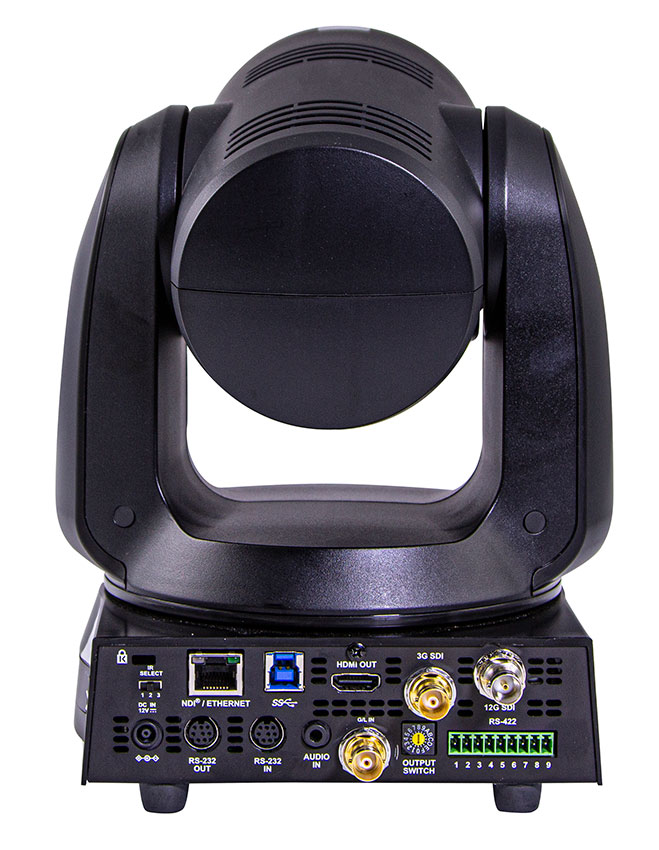

Outputs12G-SDI, 3G-SDI, HDMI 2.0, USB 3.0, Ethernet (NDI/IP)
Pan/Tilt+/-170 deg pan at 160 deg/sec; -30 to +90 deg tilt
PowerPoE++ or 12V supply, <=40W
Dimensions188 x 189 x 233 mm, 2.9 kg
Marshall CV730-BHN PTZ UHD60 Full-NDI + NDI|HX3 + IP (HEVC) + 12G-SDI
CV730 Series - 30x Zoom UHD60 IP/NDI PTZ Camera Overview
