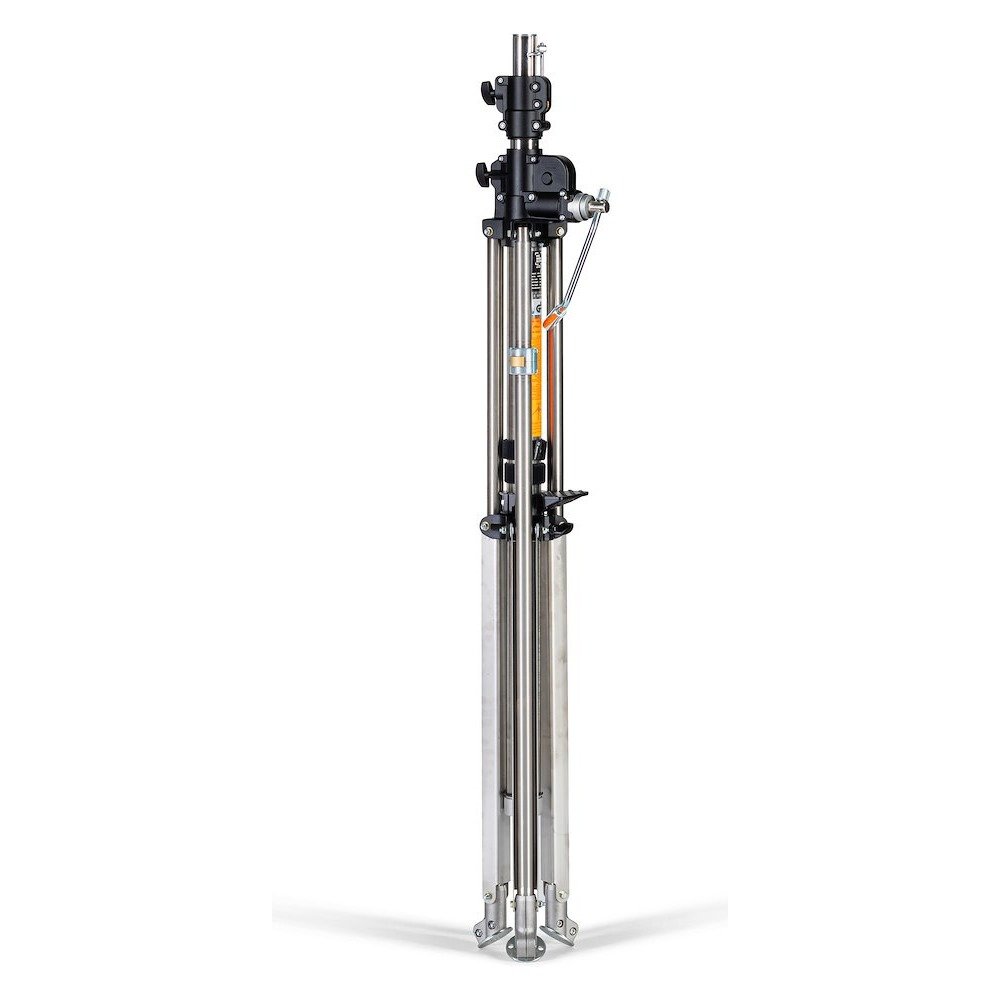

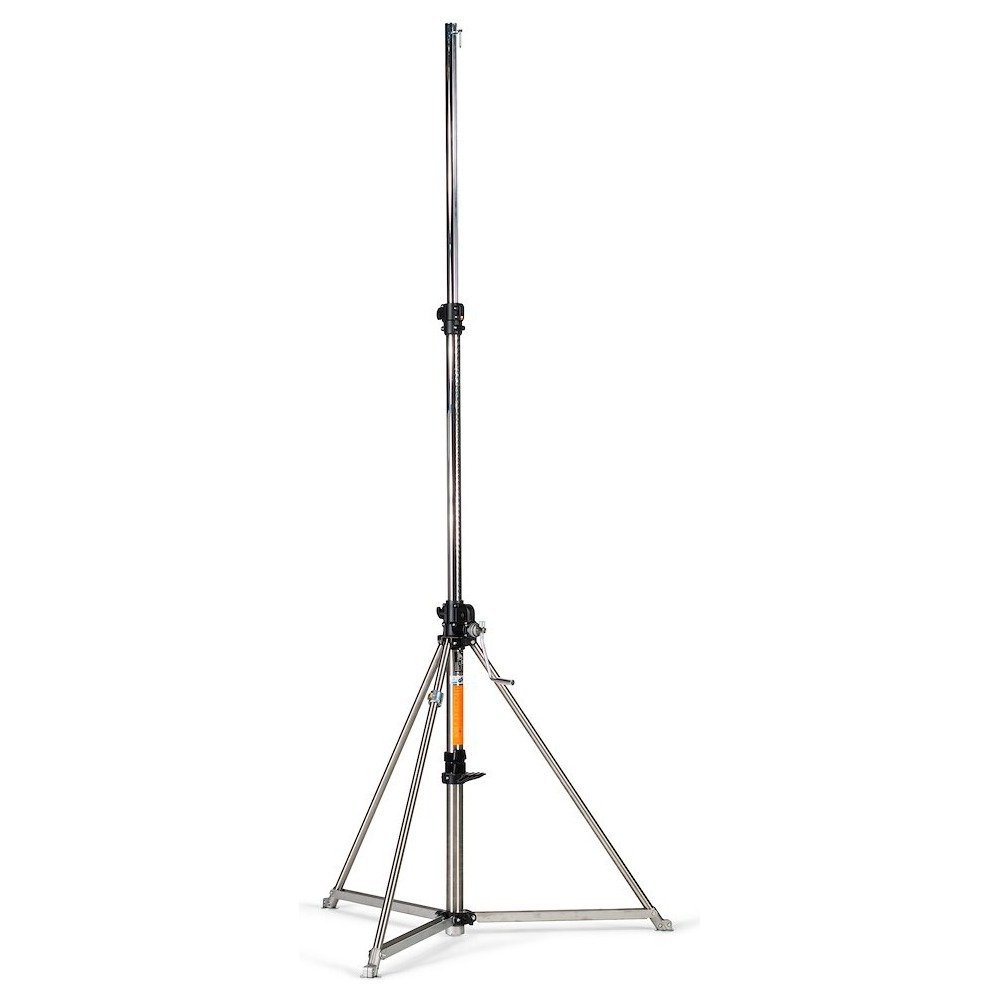

Manfrotto Super Wind Up Stand with Geared Column
This is the stand for the fixture that has to go higher than a normal grip stand reaches. The geared column and two risers wind up to 366 cm on a crank, smoothly and with little effort, and hold 80 kg all the way out - the load rating does not fall off at full extension. Steel column and steel base, with tube diameters stepping 70, 60 and 50 mm.
A levelling leg takes out the slope on location floors, and the top is a 1 1/8 in (28 mm) socket that accepts standard junior fittings and the 425B Mega Boom. The design carries a TUV certification, which is what a rental house or a venue safety officer will ask about before a heavy head goes up. Choose chrome or black steel; the two are otherwise identical.
| Type | Wind-up stand, geared column |
|---|---|
| Payload | 80 kg (176.37 lb), including at full extension |
| Maximum Height | 366 cm (144.09 in) |
| Minimum Height | 156 cm (61.42 in) |
| Closed Length | 179 cm (70.47 in) |
| Column | 3 sections; tube diameters 70, 60, 50 mm |
| Top Attachment | 1 1/8 in (28 mm) socket |
| Levelling Leg | 1 |
| Weight | 32.5 kg (71.65 lb) |
