LynTec Juice Goose RX 100-20

The RX 100-20 is the 20 amp build of the RX 100 - part of LynTec's Juice Goose line - for racks whose total draw or whose branch circuit calls for a 20 amp feed. It carries eight NEMA 5-20R receptacles, seven on the rear of the chassis and one on the front.

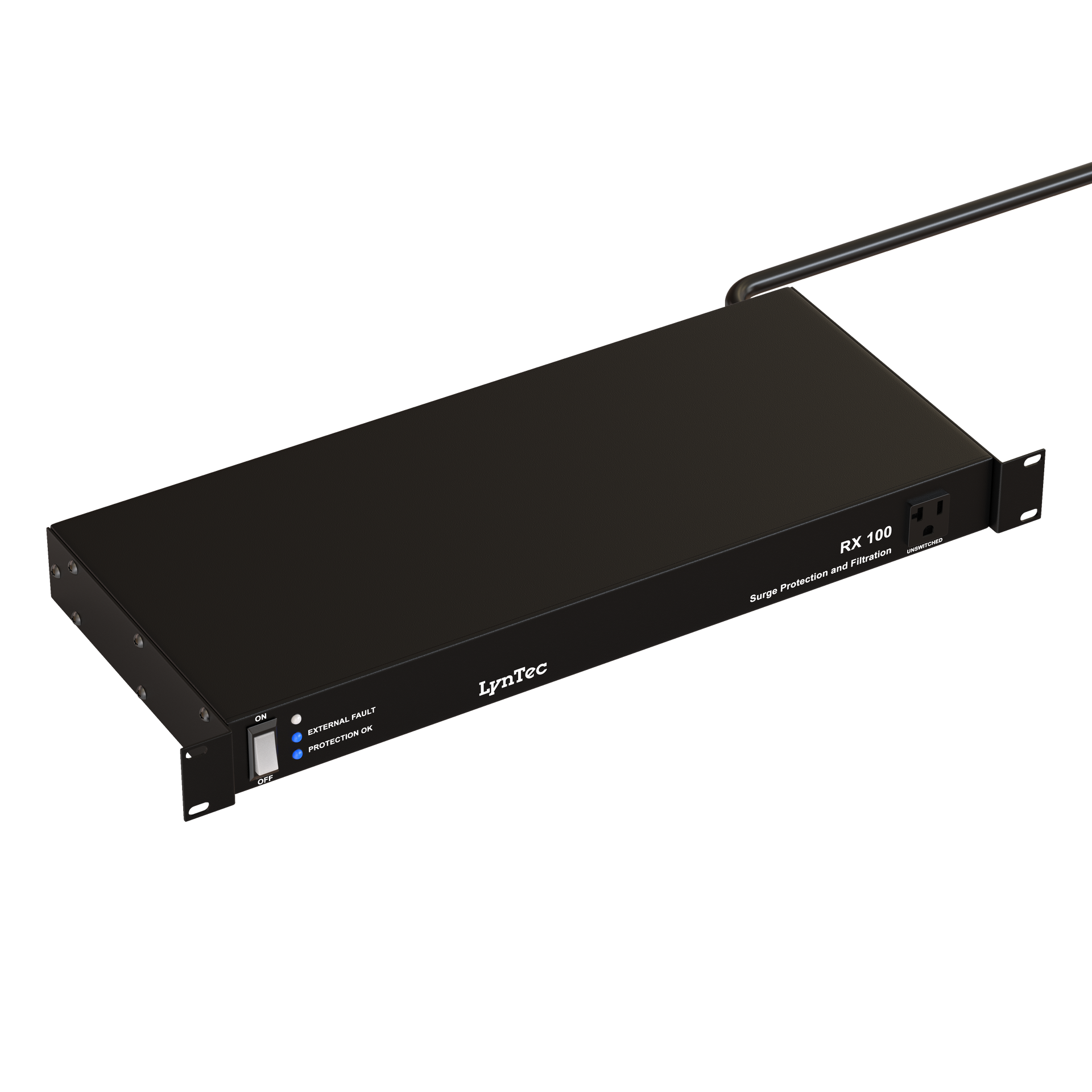

Protection is the same RX Series Hybrid Filter Technology: it treats hot, neutral and ground rather than dumping surge energy into ground, holding let-through to a maximum of 0.50 volt on the ground lead and 10 volts line to neutral, with connected equipment safe against events up to 6,000 volts at 3,000 amps. High-frequency normal-mode and common-mode noise filtration, over-voltage shutdown, and external wiring-fault detection are all included, with front-panel LEDs showing protection status and wiring faults. The Tour Class chassis is single-piece with reinforced cold-rolled-steel mounting brackets.
