Juice Goose RX 100-15 Power Conditioner

Most rack conditioners divert surge energy into the ground lead, which protects the equipment but leaves logic ground noisy - and a one- or two-volt disturbance on ground is enough to make digital processing gear behave strangely. The RX 100-15 - part of LynTec's Juice Goose line - uses Hybrid Filter Technology that works on hot, neutral and ground, holding surge let-through on the ground lead to a maximum of 0.50 volt and 10 volts line to neutral. Connected equipment is protected against events up to 6,000 volts at 3,000 amps between hot and neutral.

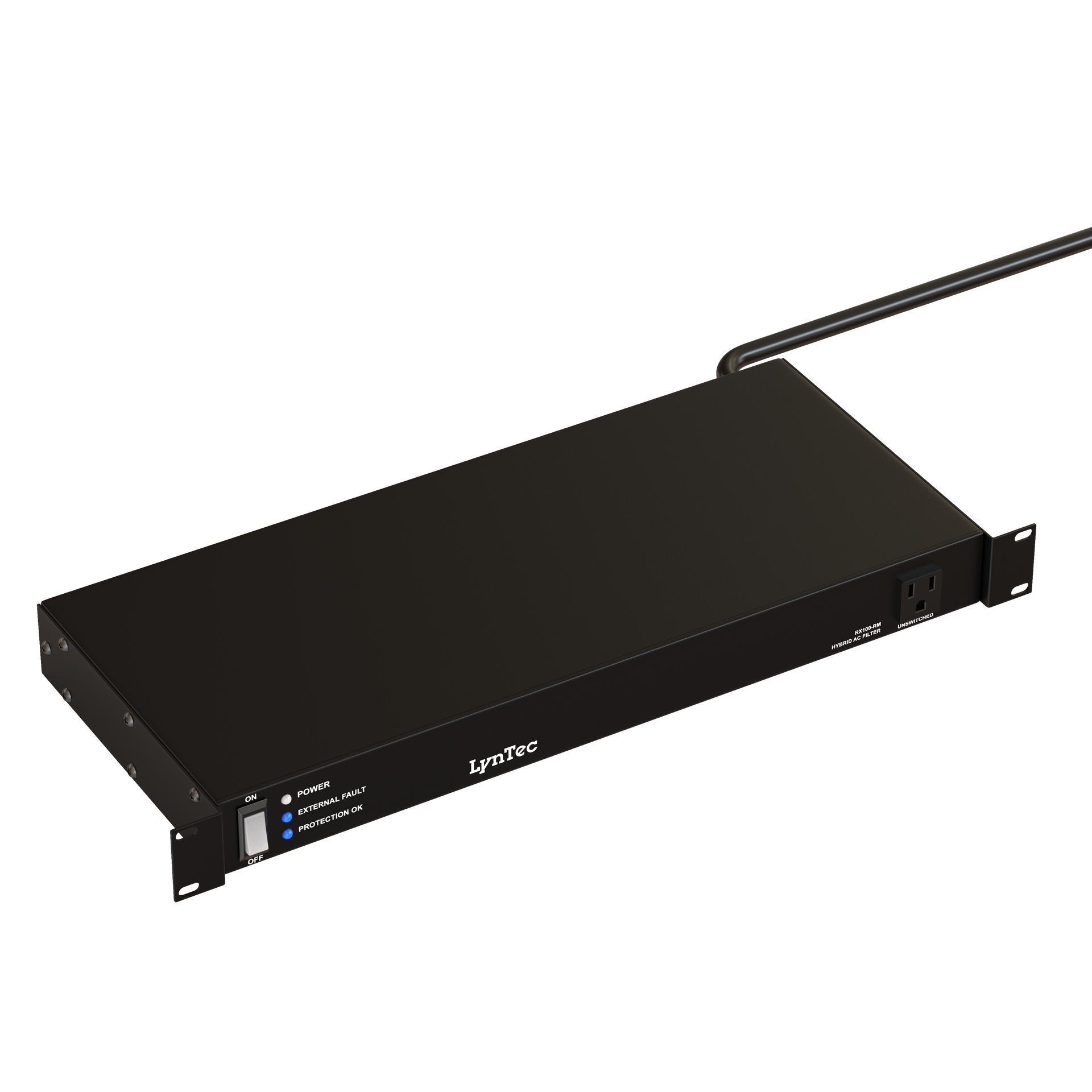

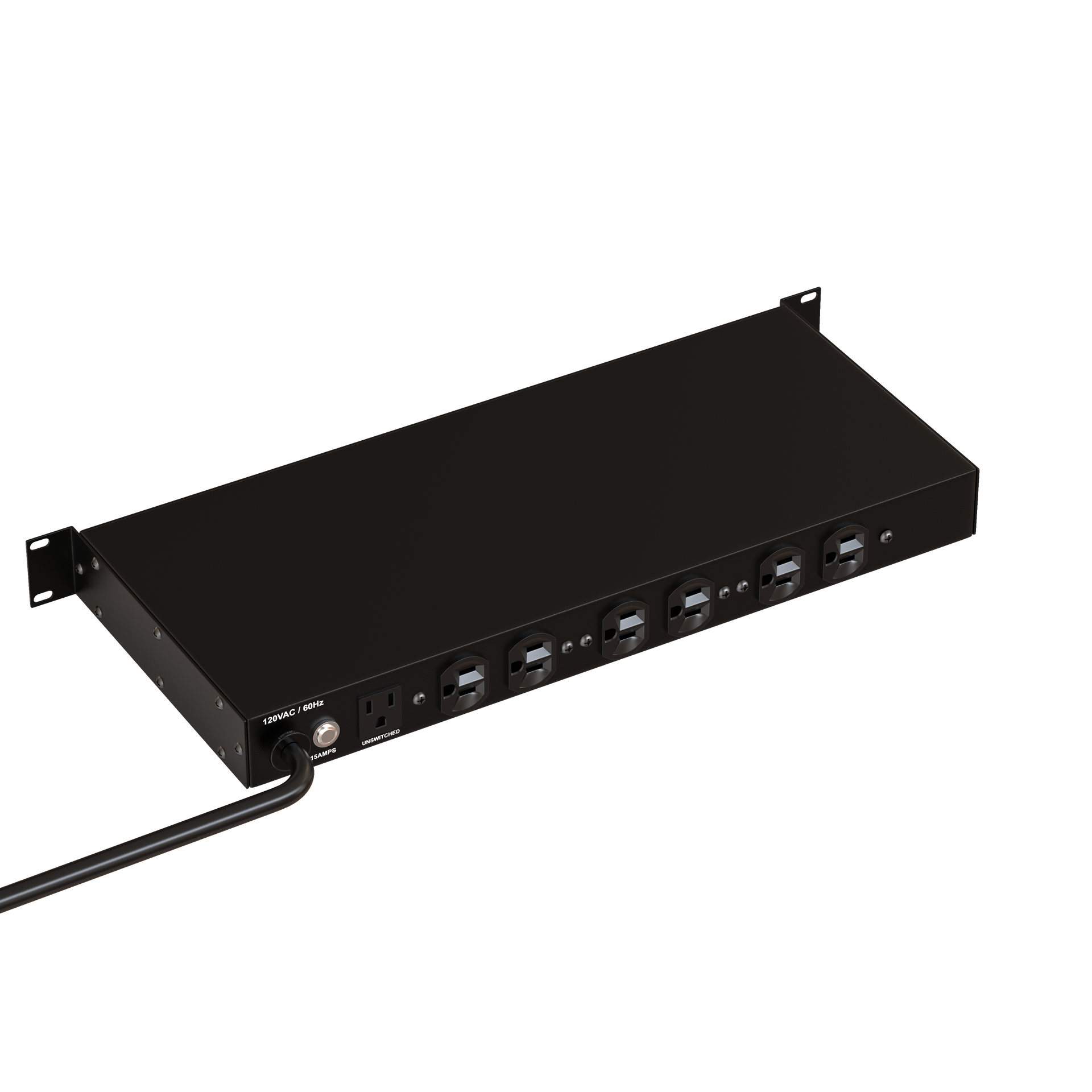

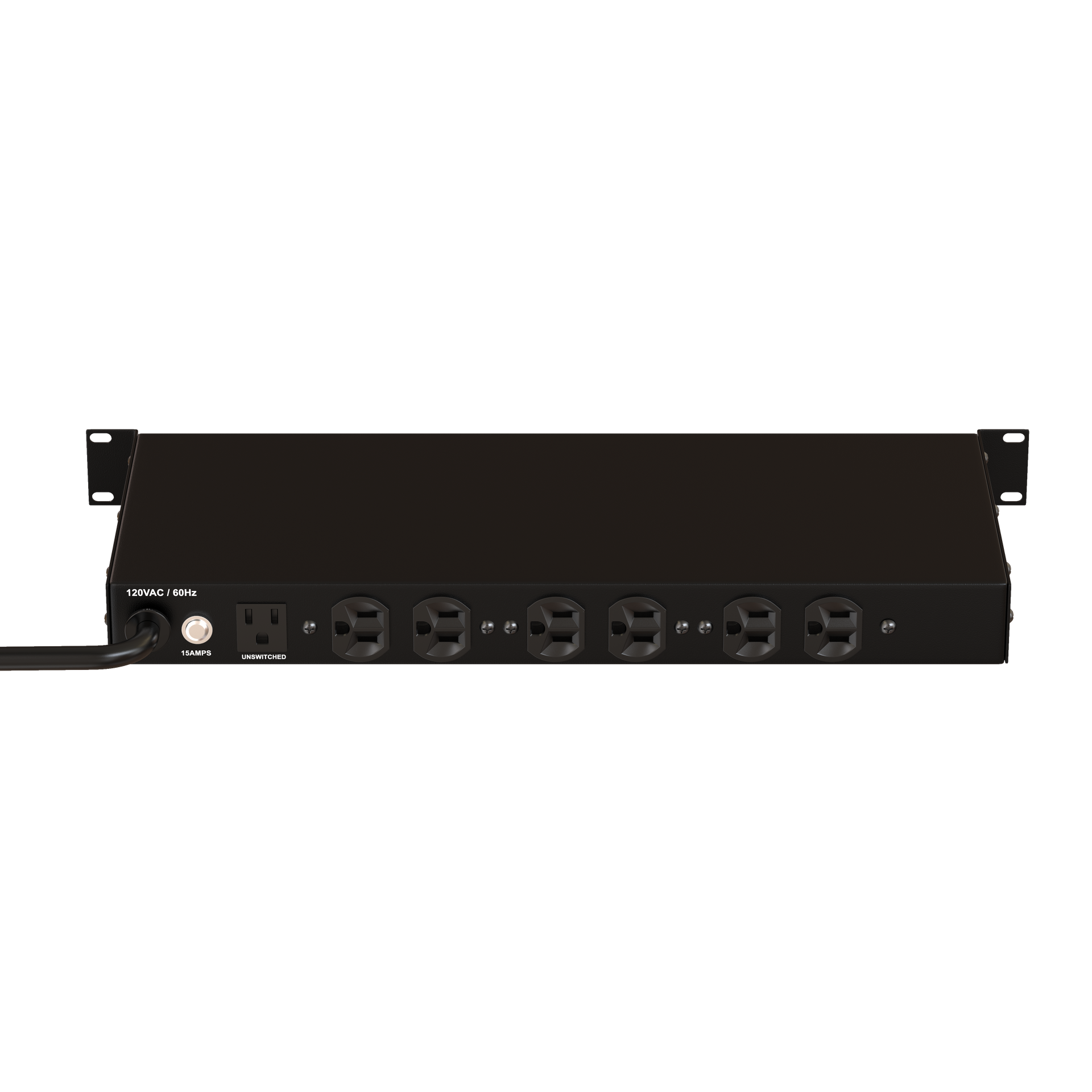

It also handles the failure modes that damage gear slowly: high-frequency normal-mode and common-mode noise filtration, over-voltage shutdown, and protection against external wiring faults, with front-panel LEDs indicating active protection or a detected wiring fault. Eight NEMA 5-15R receptacles - seven on the rear and one on the front - cover a rack at 15 amp capacity. The Tour Class chassis is single-piece with reinforced cold-rolled-steel mounting brackets.
