Lowell ACHR-1505-S Power Panel for LHFR

Discontinued by the manufacturer. Still available while our remaining stock lasts - contact us to confirm availability before ordering.

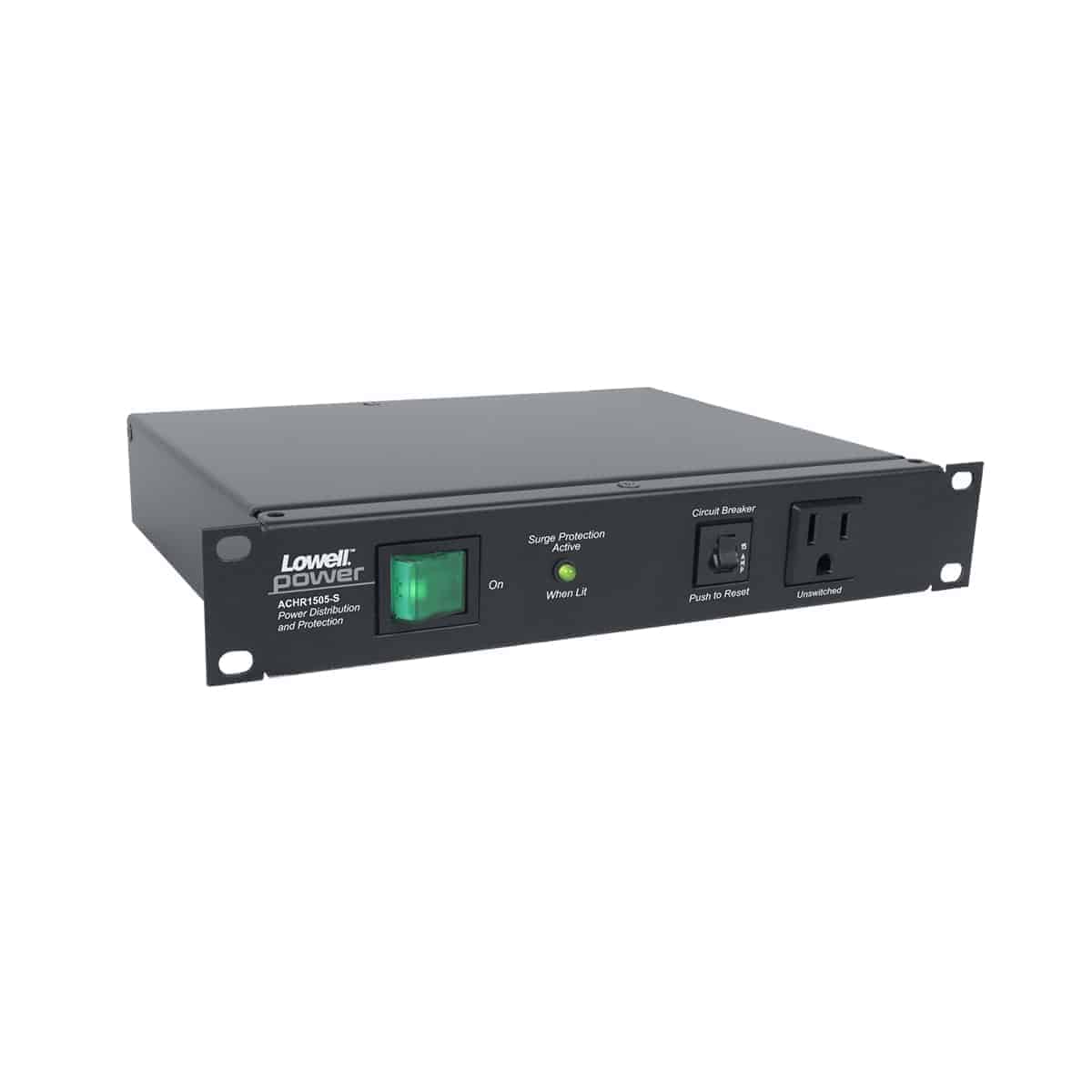

The Lowell ACHR-1505-S is an AC rackmount power panel. Lowell specifies 10.38 in. x 7.25 in. x 1.75 in. chassis, 15A circuit breaker, six ft. attached cord with NEMA 5-15P plug and rocker switch (on/off).

Ordered as Lowell part number ACHR-1505-S. Lowell rates it EIA/TIA Compliant, RoHS Compliant, ETL Listed, U.S./Canada. Made in U.S.A. with global components. Specifications as published by Lowell Manufacturing.

Finishblack powder epoxy finish
Power Rating120 VAC (15A) 60 Hz
Surge SuppressionYes
TerminationSix ft. attached cord with NEMA 5-15P plug
ComplianceEIA/TIA Compliant, RoHS Compliant, ETL Listed, U.S./Canada
Country of OriginMade in U.S.A. with global components
Dimensions1U x 10
Front Outlet1 (un-switched)

Resources and support

Compatibility helpCall (201) 791-1400 to confirm signal format, connections, and workflow fit. Lowell product familyContinue browsing the full Lowell range we carry.
