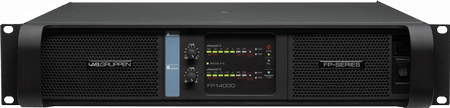

Lab.gruppen FP 14000
The FP 14000 is the low frequency specialist of the FP+ Series, putting up to 7,000 W into 2 ohms per channel. It exists for subwoofer arrays that flatten smaller amplifiers.\n\nOutput measures 2 x 7,000 W into 2 ohms, 2 x 4,400 W into 4 ohms and 2 x 2,350 W into 8 ohms. Selectable gain plus a scalable Voltage Peak Limiter and bridge mode operation cover the configuration, and the NomadLink network carries monitoring and control across the amplifier rack.
| Dimensions | W: 483 mm (19"), H: 88 mm (2 U), D: 396 mm (15.6") |
|---|---|
| Weight | 12 kg (26.4 lbs) |
| Finish | Black painted steel chassis with black painted steel / aluminum front |
| Number of amplifier channels | 2 |
| Peak total output all channels driven | 14000 W |
| Peak output voltage per channel | 195 V |
| Max output current per channel | 90 A peak |
| THD 20 Hz - 20 kHz at 1 W | 0.1% |
