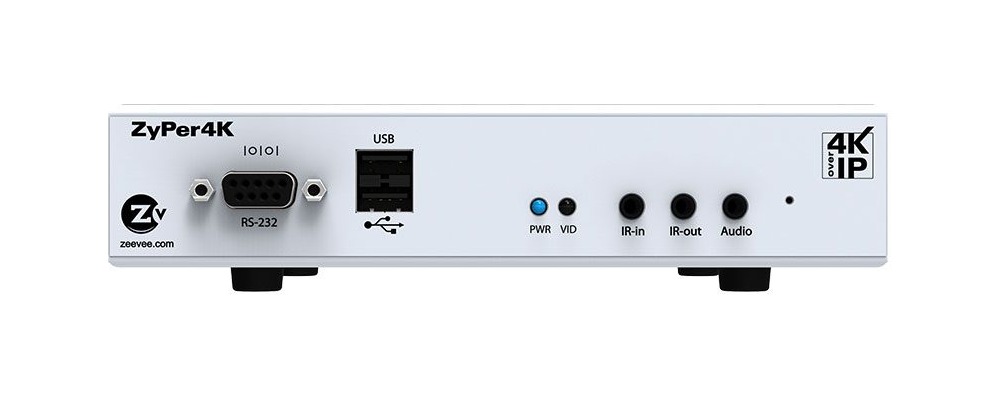

Kramer Z4KMEDDECC3 ZyPer4K Medical HDMI 2.0 Copper Decoder

The Kramer Z4KMEDDECC3 is a zyPer4K Medical HDMI 2.0 Copper Decoder, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: HDMI 2.0 with HDCP pass-through. Widescreen format selection (Crop, stretch or box): HDMI 2.0 type A with optional DisplayPort (video); Multi-channel linear PCM up to 8 channels (7:1): HDMI 2.0 type A (audio (digital)); Unbalanced Stereo (Output): 3.5mm stereo mini jack (audio (analog)); Input/Output ports: 3.5mm mini jacks (ir). Also: Full Duplex up to 115.2 kbps: 9-pin D-sub (rs-232); USB 2.0: 2 USB Type A (usb (optional)); 10 Gb for Video/Audio/Control with 1 Gb Utility: 10 Gb RJ45 or SFP+ port 1 Gb RJ45 port (ethernet); • VGA: 640x480 (4:3); • SXGA: 1280x1024 (5:4); • 1080p/i: 1920x1080 (16:9); • SVGA: 800x600 (4:3); • WXGA: 1366x768 (16:9); • QXGA: 2048x1536 (4:3); • XGA: 1024x768 (4:3); • SXGA+: 1440x1080 (4:3); • Ultra HD: 3840x2160 (16:9; • HDTV: 1280x720 (16:9); • UXGA: 1600x1200 (4:3); • 4K: 4096x2160 (17:9); Custom resolutions are supported at pixel clock rates up to 600 MHz (formats).
