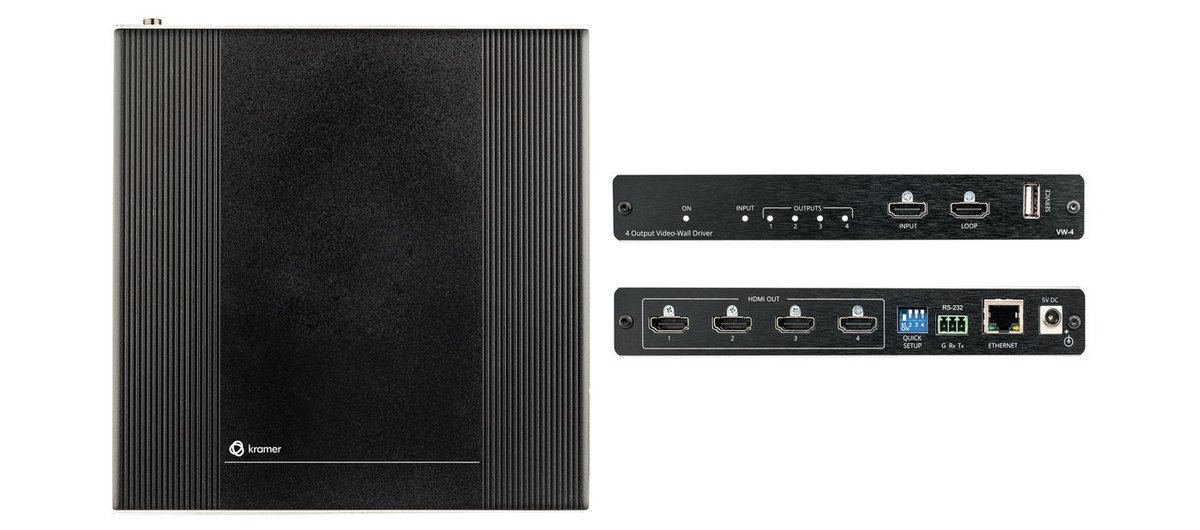

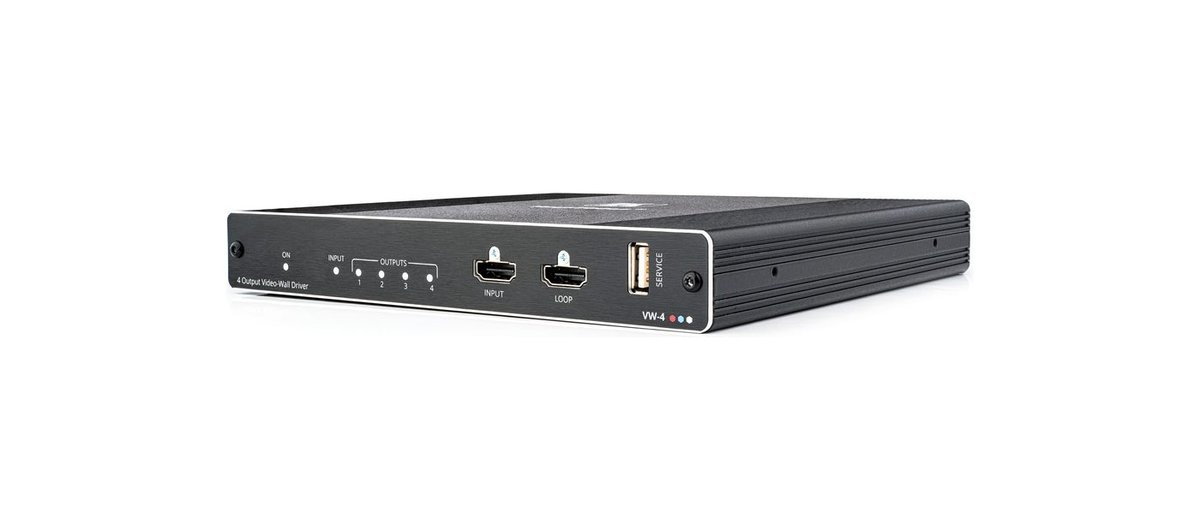

Kramer VW-4 4 Output Video Wall Driver

The Kramer VW-4 is a 4 Output Video Wall Driver, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 1 HDMI: On a female HDMI connector (inputs); 4 HDMI: On female HDMI connectors; 1 HDMI Loop: On a female HDMI connector (outputs); 1 Ethernet: On an R-J45 connector; 1 RS-232: On a 3-pin terminal block connector; USB: On a USB type-A connector (ports); Max Input Resolution: 4K@60Hz (4:4:4); Max Input Data Rate: 18Gps; Output Resolution: 1080p; Content Protection on Input and Loop Output: HDCP 2.2; Content Protection on Main Outputs: HDCP 1.4 (video). Also: Indicators: I/O detection and power LEDs; Controls: DIP-switches for basic setup, computer app for comprehensive setup via Ethernet or RS-232, firmware upgrade via USB (user interface); Included: Power adapter, bracket set, rubber feet (accessories); Source: 5V DC; Consumption: 2.9A (power); Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing; Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing; Humidity: 10% to 90%, non-condensing (environmental conditions).
