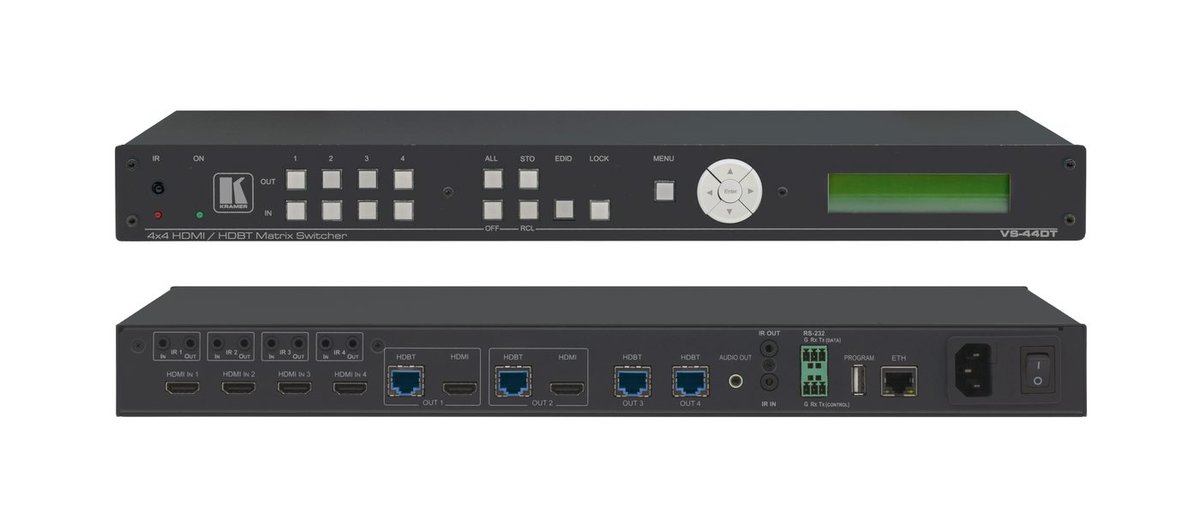

Kramer VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher

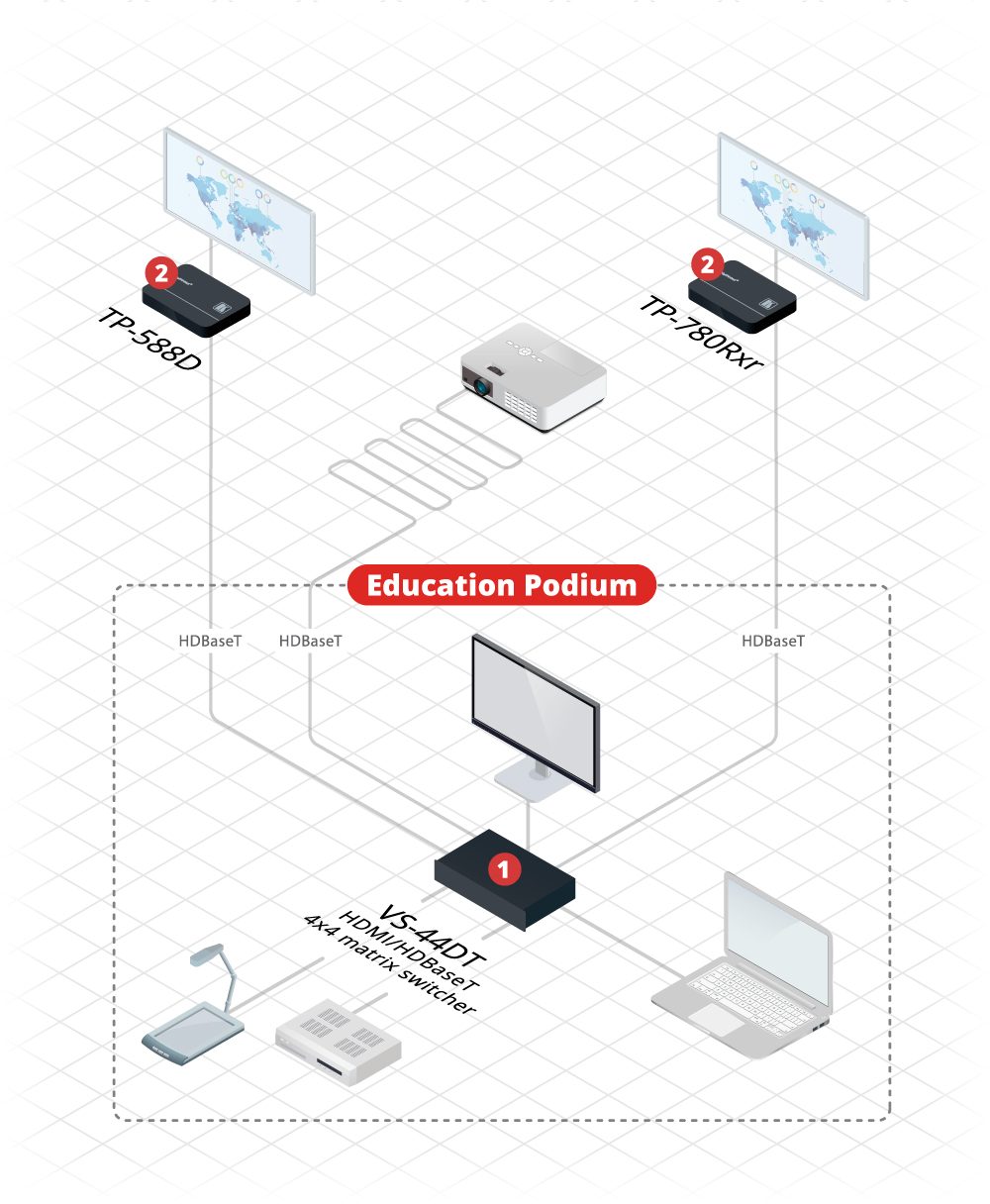

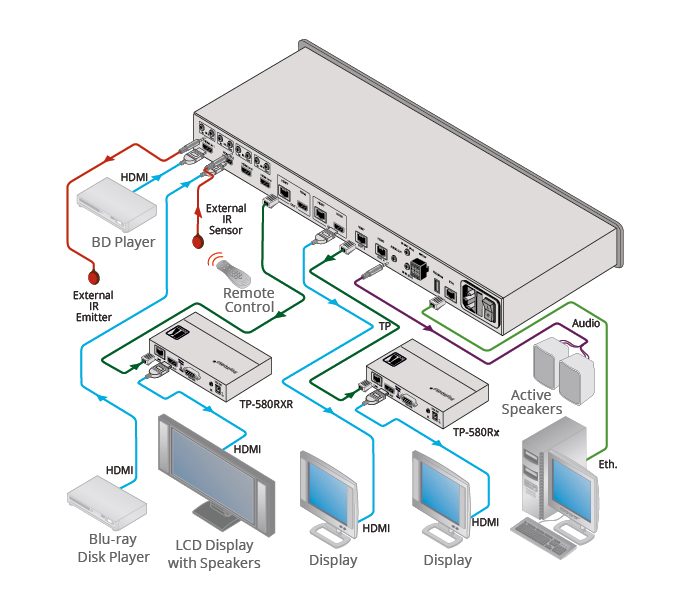

VS-44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS-232 and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS-232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs. VS-44DT connects to compatible HDBaseT receivers such as, TP-780RXR, TP-580RXR and TP-588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers. Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel). Max. Resolution - 4K@60Hz (4:2:0) and WUXGA. HDBaseT Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables. Cables - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS-44DT. HDBaseT Extension - Includes Video, Audio, Ethernet, RS-232 and IR signals. Outputs - 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs. PoE Support - PoE provider to HDBaseT receivers such as the TP-588D and TP-780RXR. HDTV Compatible. HDCP Compliant. EDID Capture - Copies and stores the EDID from a display device. HDMI Support - 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTS-HD and 7.1 PCM. Non-Volatile Memory - Stores and recalls preset matrix configurations. Automatic Output Shutdown - If no input signal is detected after a configurable idle period. Kramer Protocol 3000 Support. Lock Button - Prevents unwanted tampering with the settings. Flexible Control Options - Embedded Web server and RS-232. Worldwide Power Supply - 100-240V AC.
