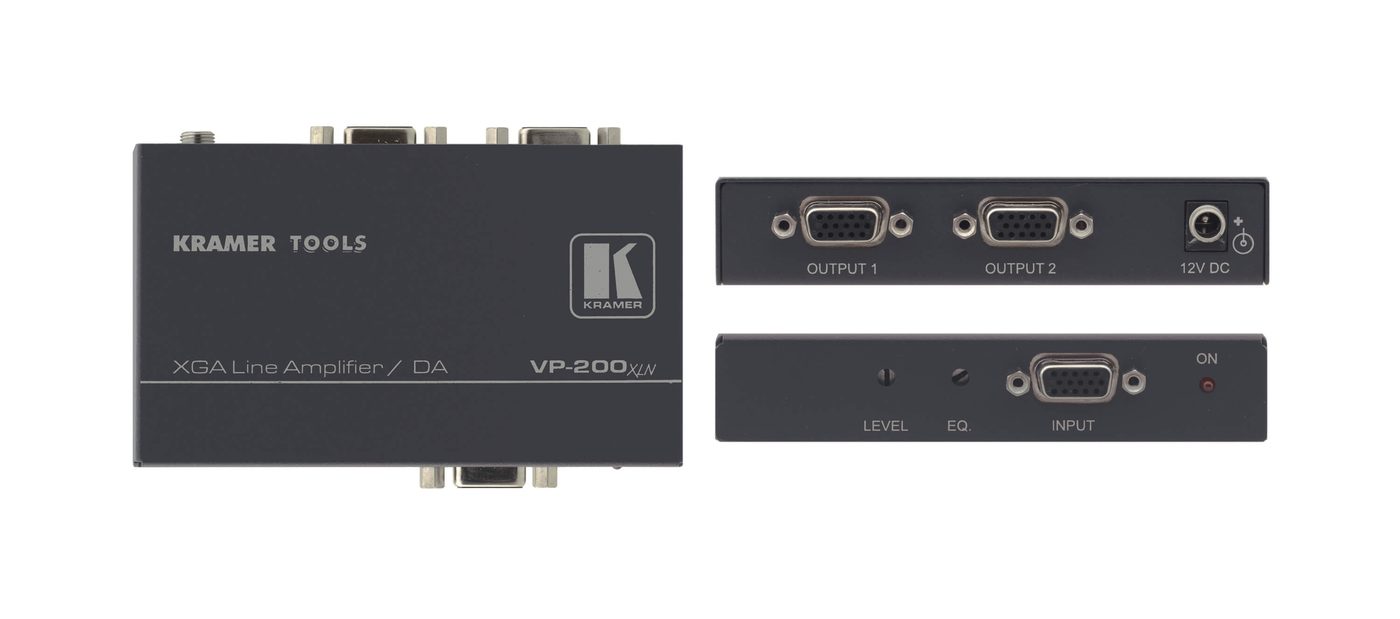

Kramer VP-200xln 1:2 Computer Graphics Video Line & Distribution Amplifier

The Kramer VP-200xln is a high-performance line and distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.

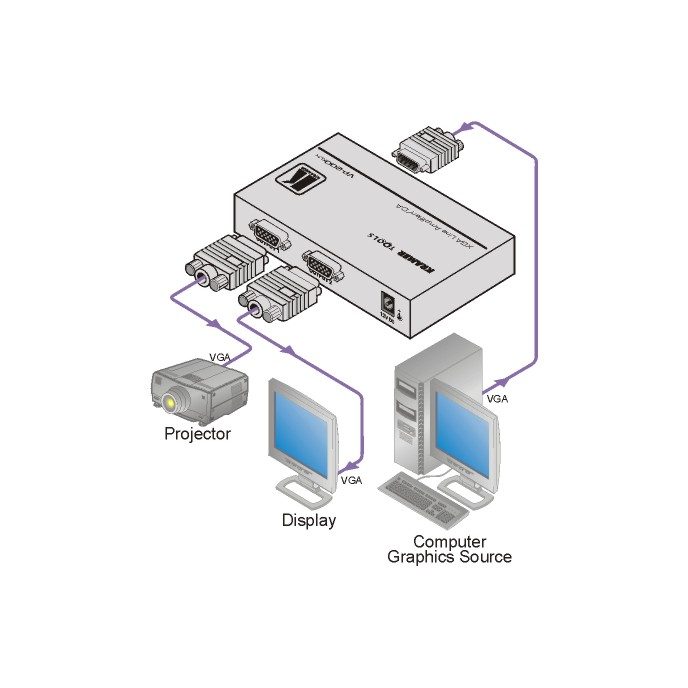

Typical placements: Long VGA cable runs from a computer graphics source to a projector or display where the signal needs re-amplifying; Boardroom and control-room installations distributing one source to two displays.

INPUT	1 UXGA on a 15-pin HD (F) connector
OUTPUTS	2 UXGA on 15-pin HD (F) connectors
MAX. OUTPUT LEVEL	2Vpp
BANDWIDTH (-3dB)	400MHz
S/N RATIO	71dB
CONTROLS	Level: -1.5dB to +6.1dB, EQ.: 0 to +7.3dB @50MHz
COUPLING	AC/DC
POWER CONSUMPTION	12V DC, 95mA
DIMENSIONS	12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H
