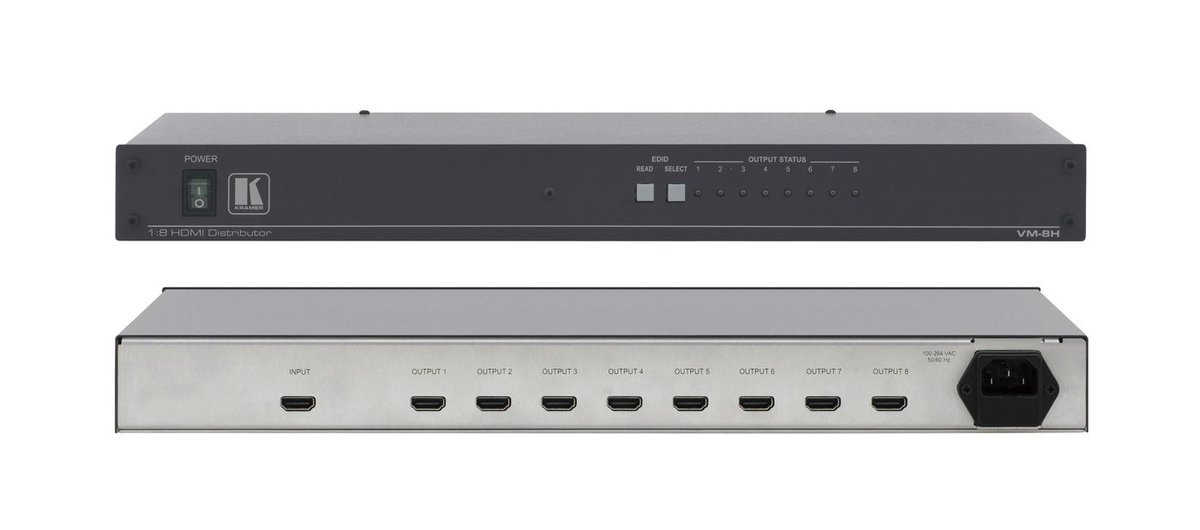

Kramer VM-8H 1:8 HDMI Distribution Amplifier

The VM-8H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 8 identical outputs. Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel). HDTV Compatible. HDCP Compliant. HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC. 3D Pass-Through. EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems. Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances. Active Output LED Indicators. Worldwide Power Supply - 100-240V AC. Standard 19" Rack Mount Size - 1U. Rack "ears" included.

INPUT	HDMI connector
OUTPUTS	8 HDMI connectors
BANDWIDTH	6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD	Supports HDMI and HDCP
CONTROLS	SELECT and READ buttons for selecting and storing EDID information
INDICATOR LEDs	OUTPUT STATUS 1 to 8
OPERATING TEMPERATURE	0 deg to +40C (32 deg to 104F)
STORAGE TEMPERATURE	-40 deg to +70C (-40 deg to 158F)
