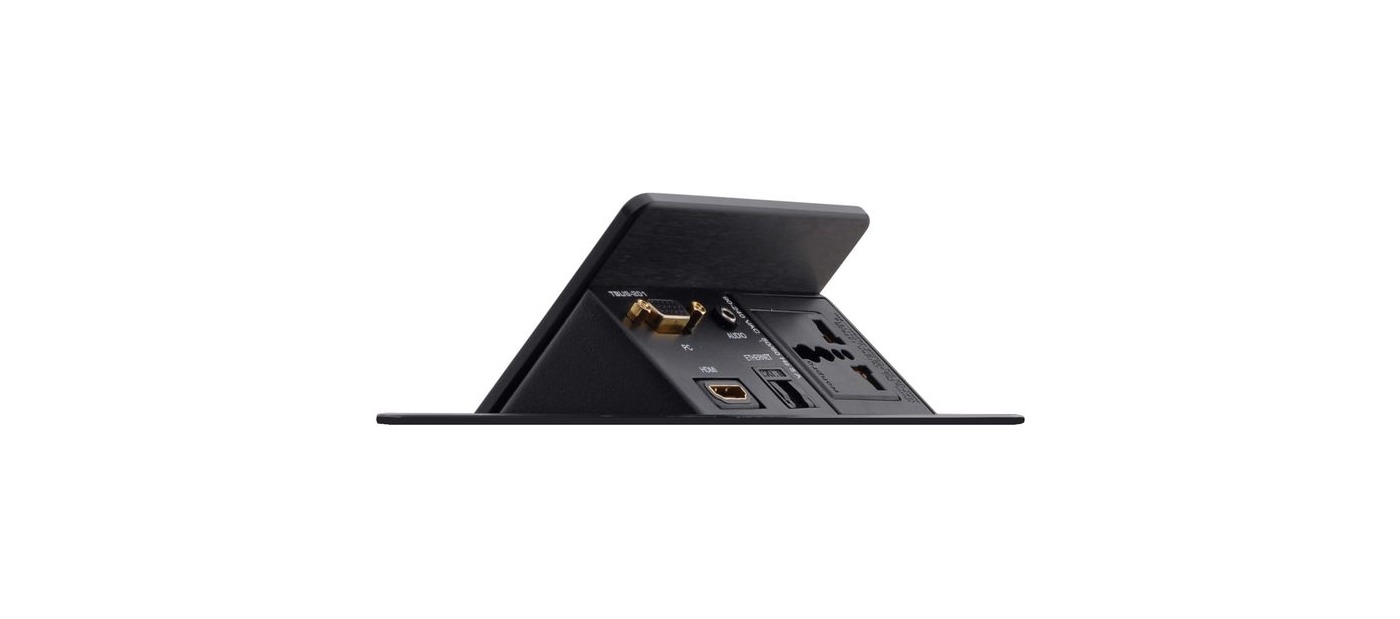

Kramer TBUS-201xl Pop-Up Table Mount Multi-Connection Solution
The Kramer TBUS-201xl provides an extremely simple, affordable and elegant single-push pop-up multi-connection boardroom solution. By pressing down gently on the lid, the unit opens and closes pneumatically, and it lowers flush with the table when not in use.
Typical placements: Boardroom tables needing a clean, flush pop-up connection point for VGA, HDMI, audio and network; Installations where drilling a large custom cutout is not practical. Easy opening and closing by pressing down gently on the cover. When not in use, it lowers flush with the table. The sturdy and attractive anodized aluminum enclosure provides maximum connectivity in the smallest possible footprint, and is cost effective and easy to install.
| FIXED INPUTS | 1 15-pin HD (VGA), 1 HDMI, 1 3.5mm audio, 1 Ethernet |
|---|---|
| POWER INPUT | Universal, USA, European and other worldwide power sockets available (module sold separately) |
| INSTALLATION | Requires cutting a 133mm x 120mm (5.2" x 4.7") rectangular hole; maximum table thickness 7.6cm (3") |
| LID OPERATION | Pneumatic - opens and closes by pressing down gently on the cover |
| ENCLOSURE | Anodized aluminum, rectangular |
| NOTE | Power socket module not included; purchased separately per country |
