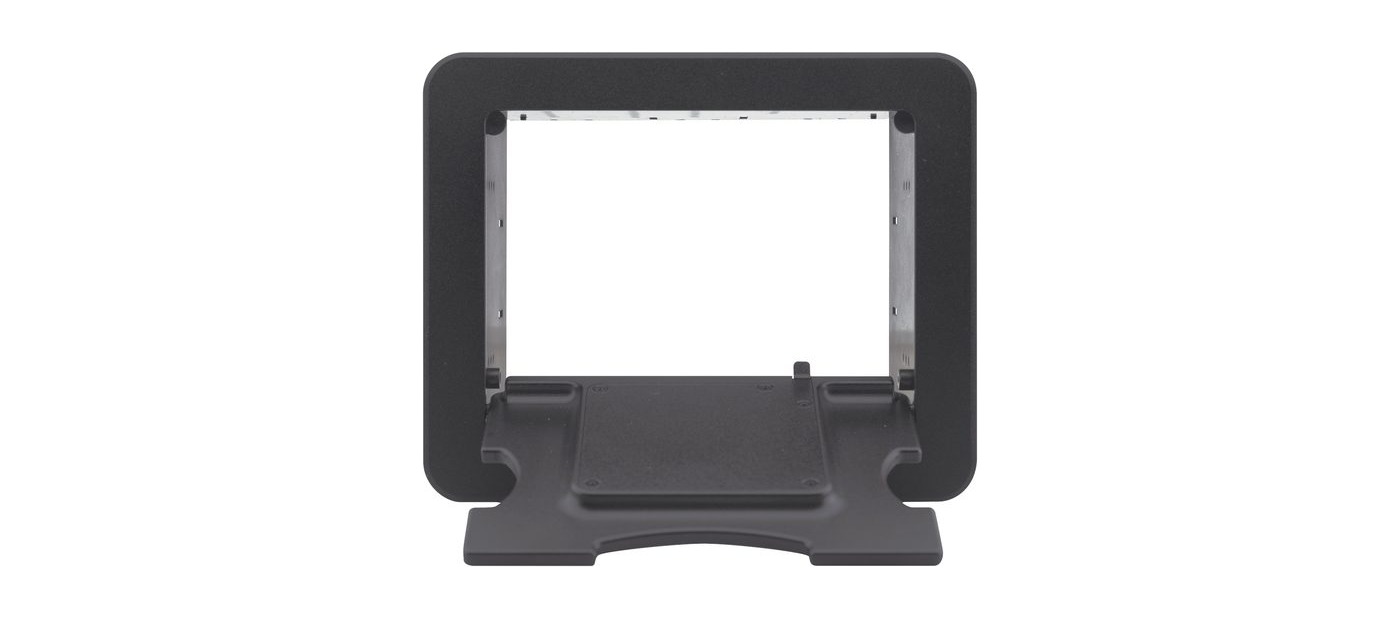

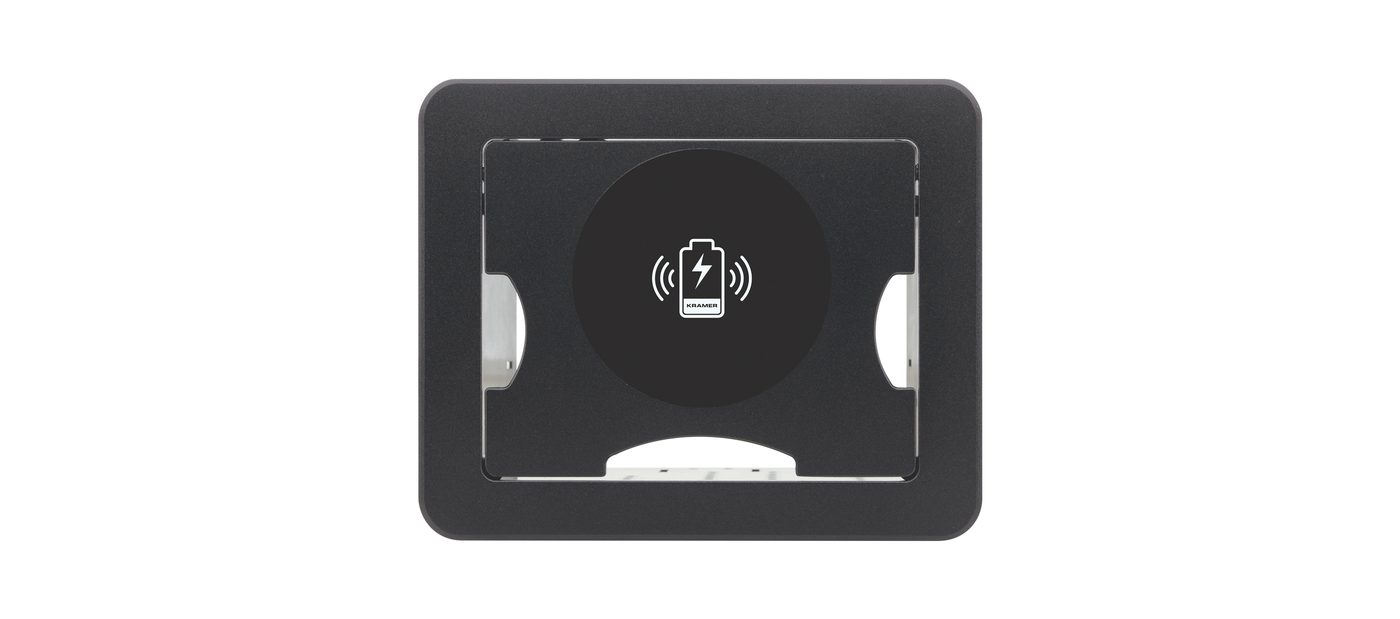

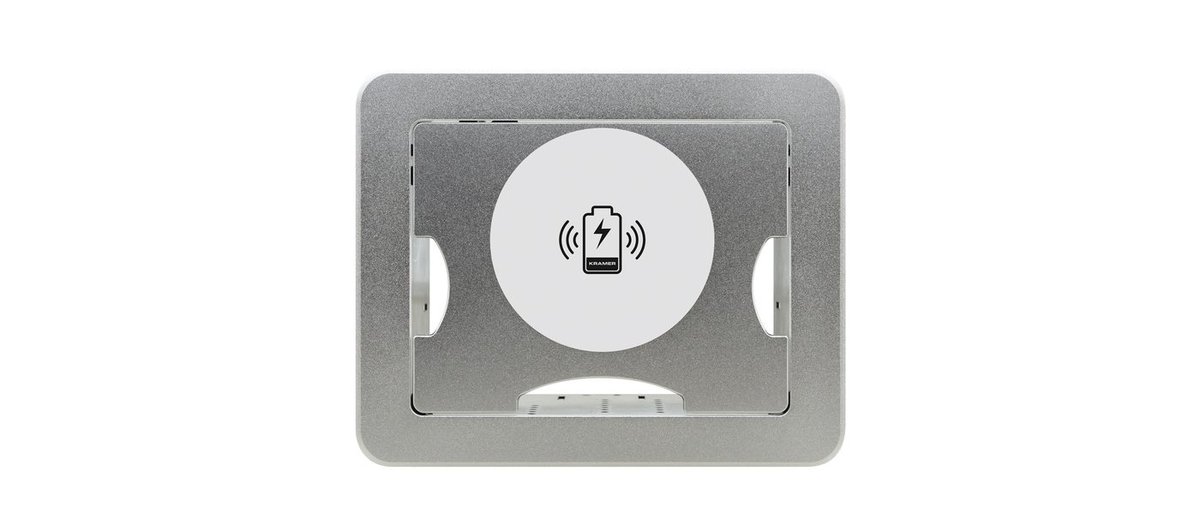

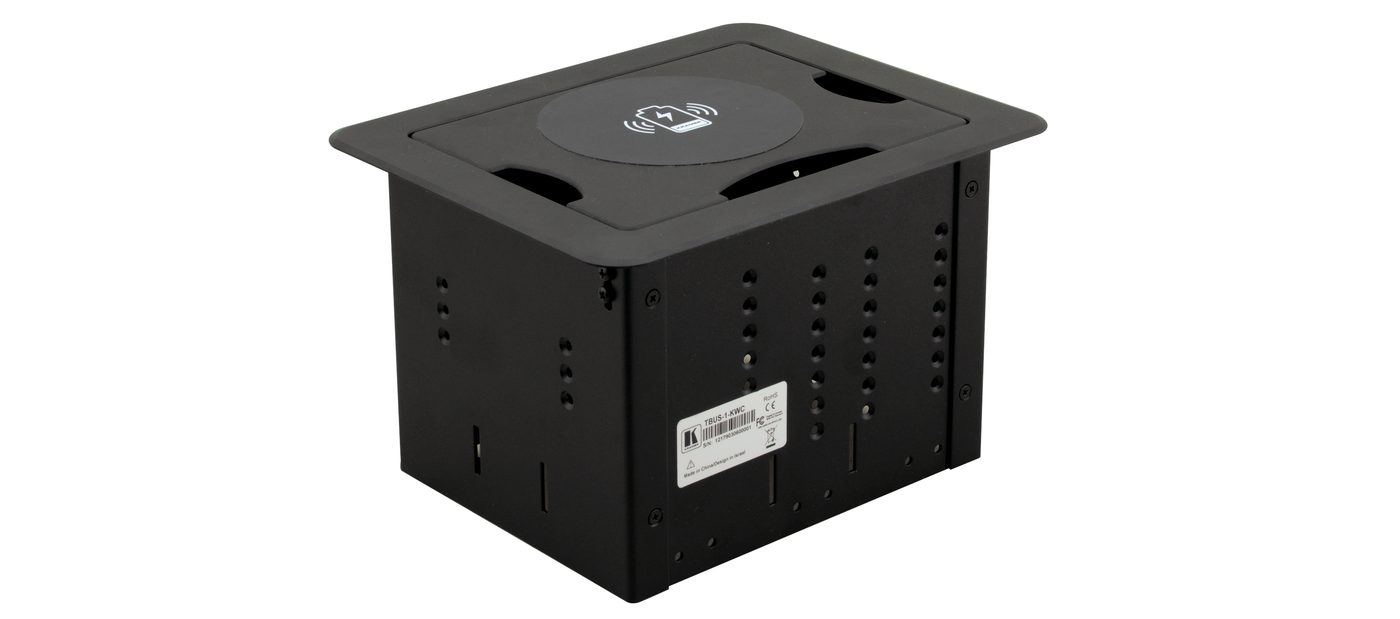

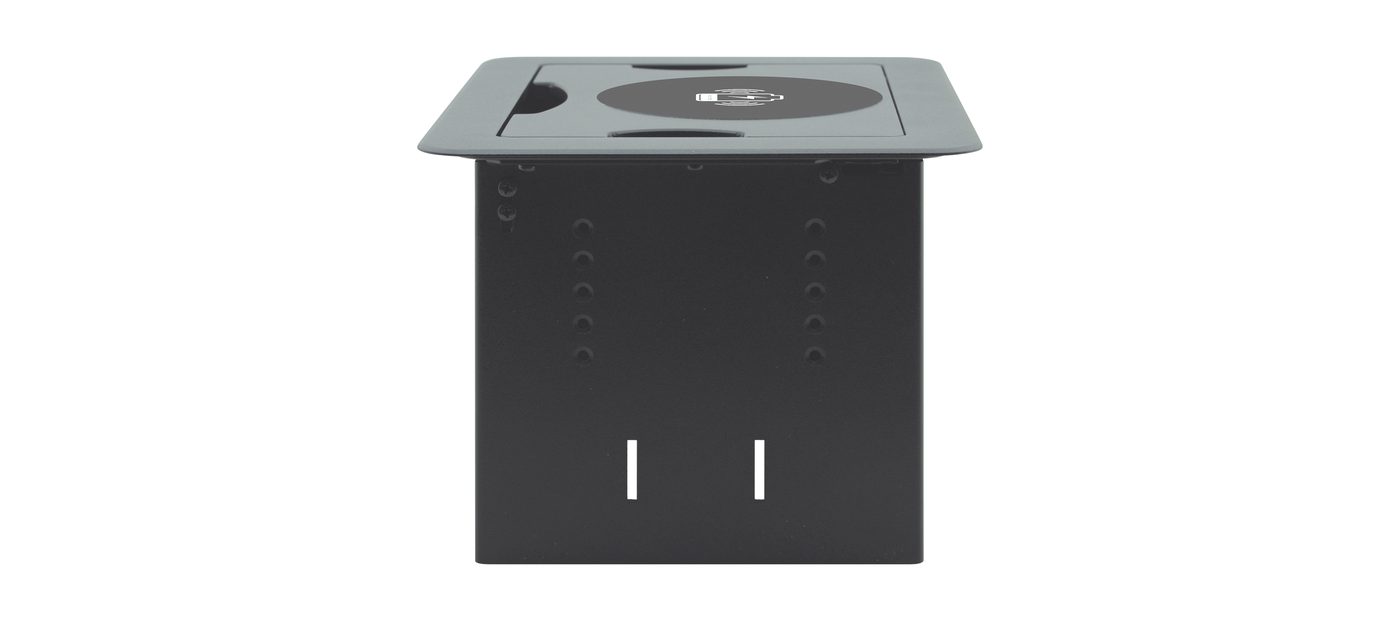

Kramer TBUS-1-KWC Modular Connectivity Enclosure with Wireless Charging Spot

The Kramer TBUS-1-KWC is a modular enclosure using the same inner frames as the TBUS-1Axl and TBUS-1N with an integrated, surface mount, wireless charging spot flush-mounted on the TBUS bezel.

Typical placements: Boardrooms, conference and training rooms. PMA type 3 compliantEMC Emission - EN5502/CISPR22Safety - EN60950-1, EN60950-1, UL60950-1, IEC 60950-1, RoHS, REACH

POWER SOURCE	International power sockets available from 110V to 240V AC
FUSE RATING	T 6.3A 250V
POWER CONSUMPTION	Charging spot: 12V DC, 1.25A
CHARGING EFFICIENCY	73%
CHARGING POWER OUTPUT	900mA max
SAFETY REGULATORY COMPLIANCE	CE compliant
STANDARD	Qi
OPERATING TEMPERATURE RANGE	0° to +40°C (32° to 104°F)
OPERATING HUMIDITY RANGE	10 to 90% RHL, non-condensing
