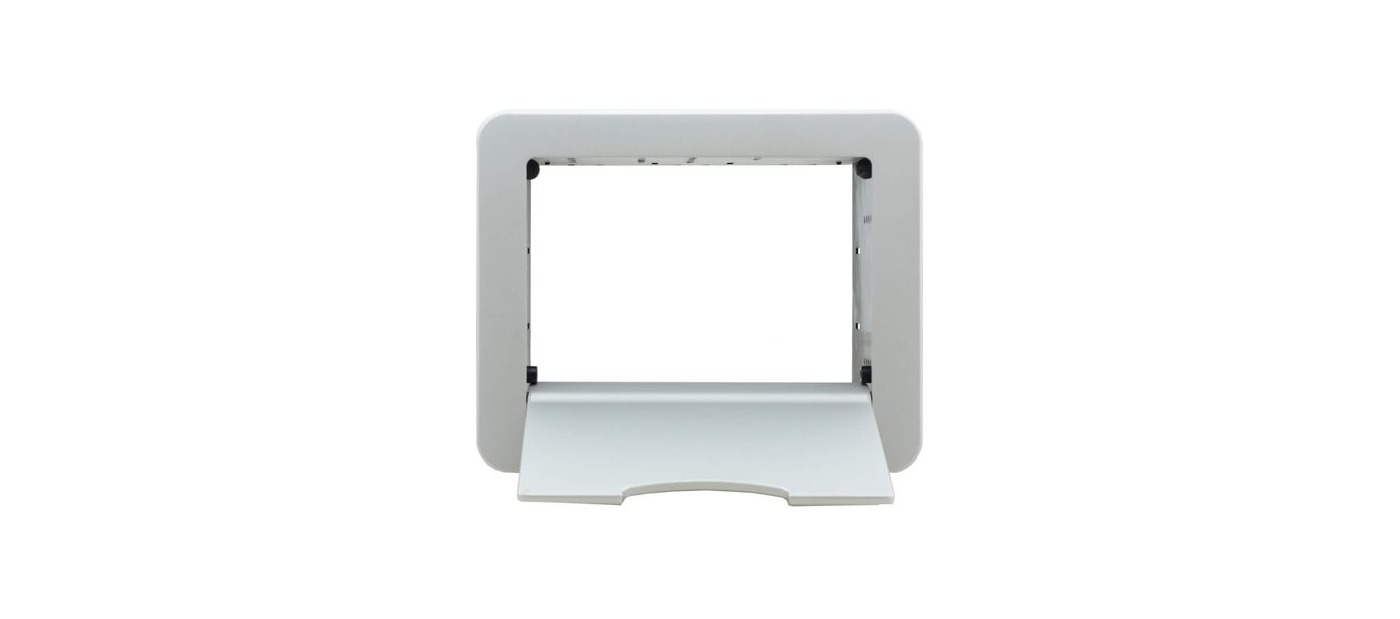

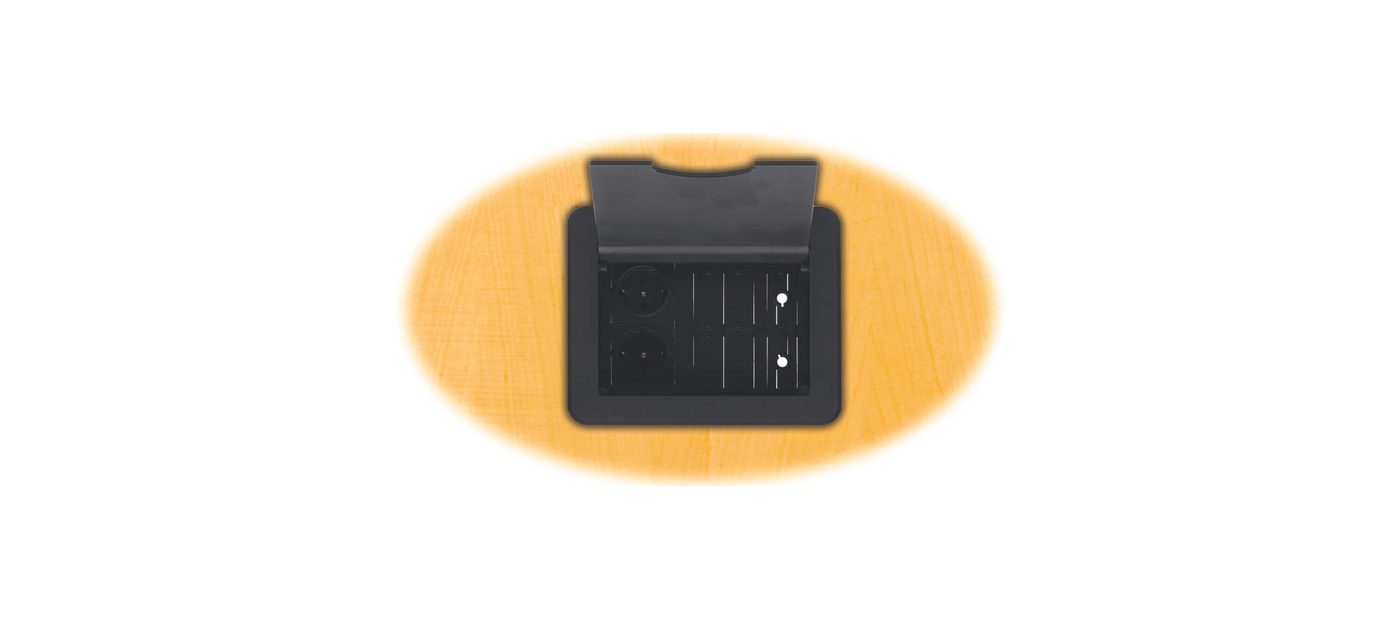

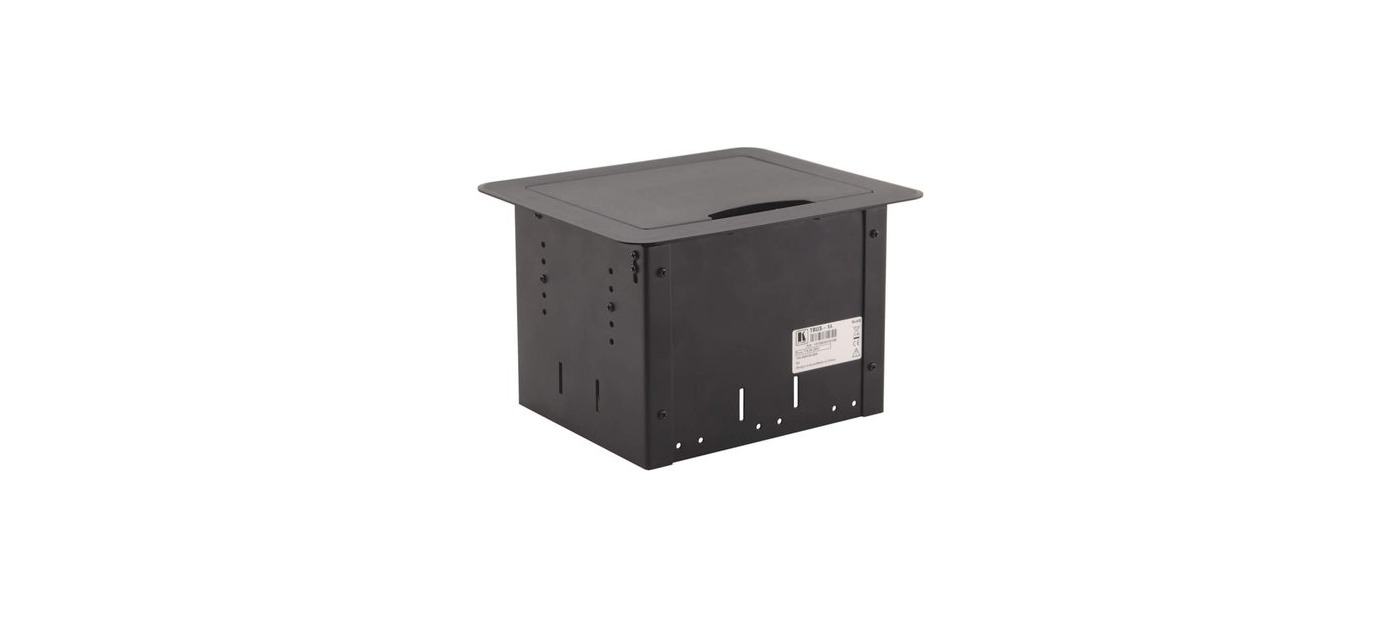

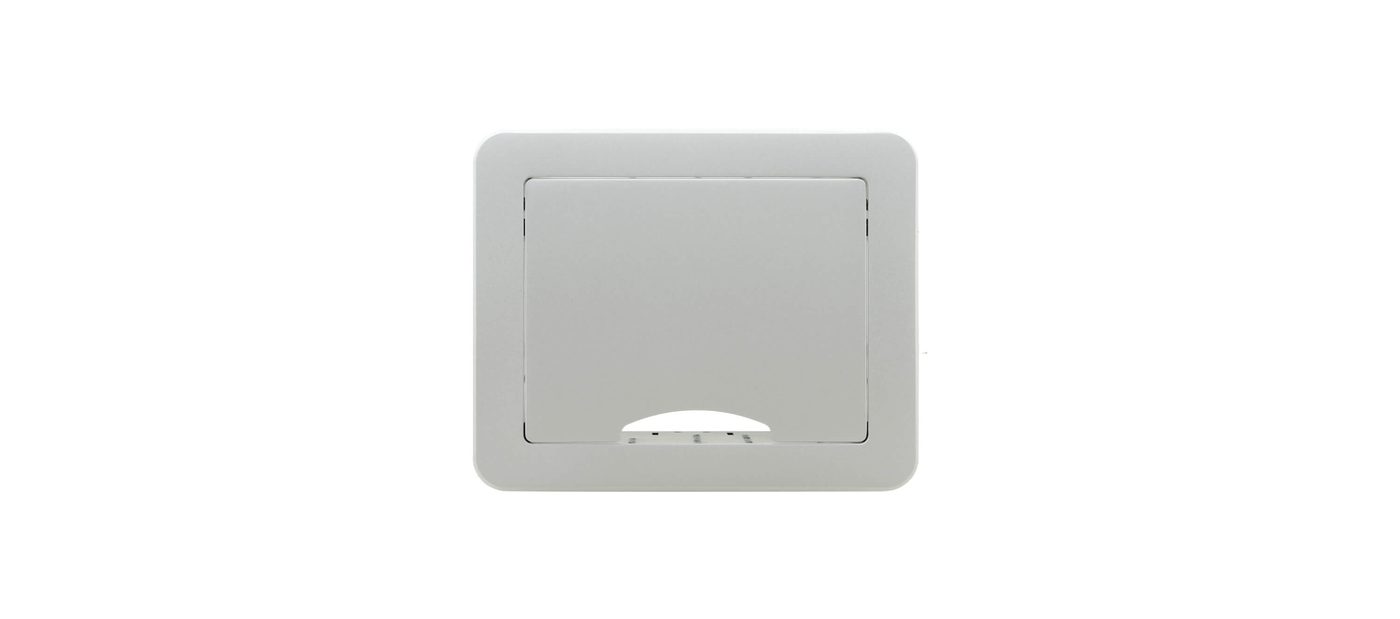

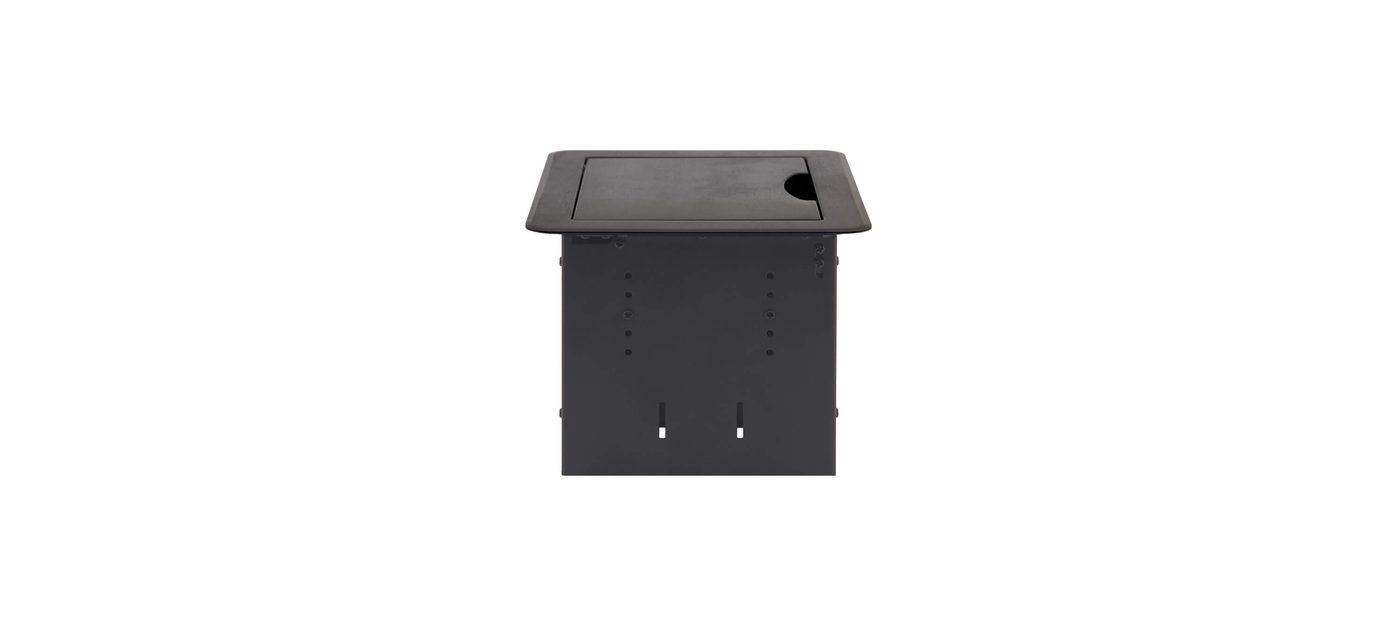

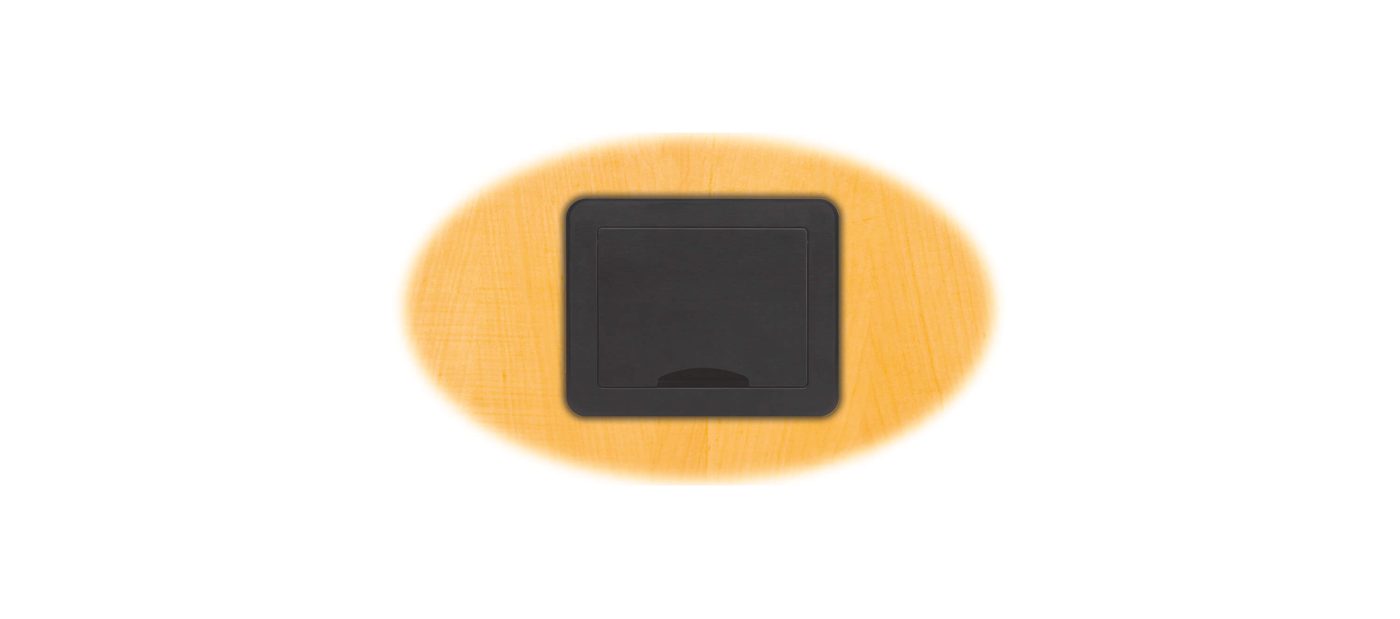

Kramer TBUS-1Axl Table Mount Modular Multi-Connection Solution - Tilt-Up Lid

The Kramer TBUS-1Axl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

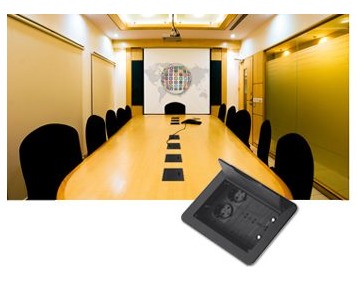

Typical placements: Boardrooms; Conference rooms; Classrooms. 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS. 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.

OPERATING TEMPERATURE RANGE	+5° to +45°C
OPERATING HUMIDITY RANGE	10 to 90% RHL, non-condensing
STORAGE TEMPERATURE RANGE	-20° to +70°C
STORAGE HUMIDITY RANGE	5 to 95% RHL, non-condensing
DIMENSIONS	20.5cm x 17cm x 13.2cm (8.07" x 6.69" x 5.20") W, D, H
WEIGHT	TBUS-1A: 1.5kg (3.3lbs) approx., table clamps: 0.26kg (0.57lbs), metal template: 0.125kg (0.28lbs)
INCLUDED ACCESSORIES	Six self-locking ties
OPTIONS	Inner frames, power sockets
