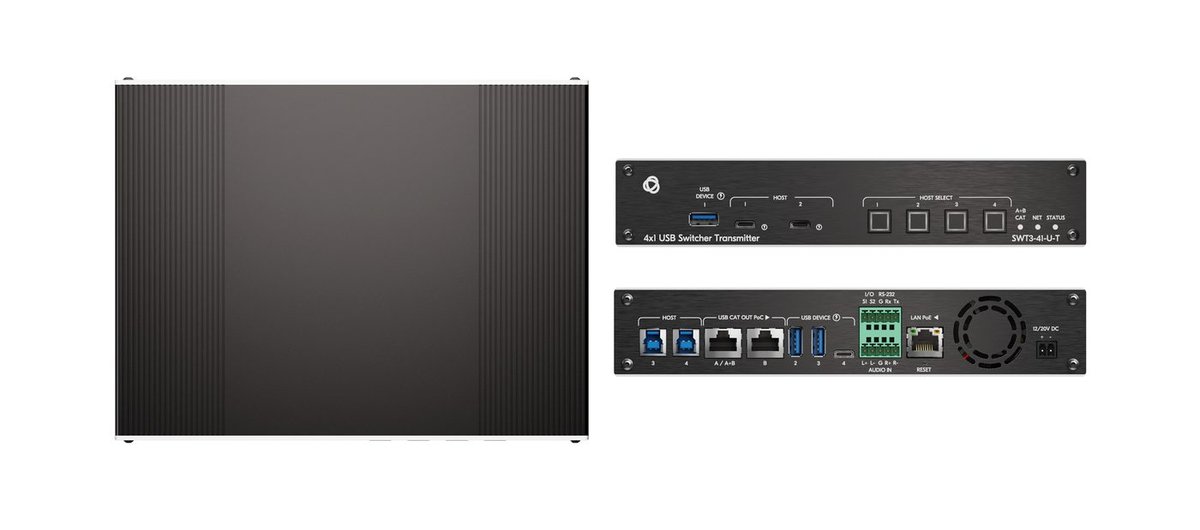

Kramer SWT3-41-U-T 4x1 USB Switcher Transmitter

The Kramer SWT3-41-U-T is a high-performance switcher transmitter with two USB-C and two USB-B ports for USB host devices connection and plug and play host user auto-switching experience based on active USB signal detection. The local and remote (over CAT-links) connected USB peripherals, such as a space camera and microphone, are switchable for use of the active USB host, for convenient online meeting participants operation.

Typical placements: Enterprise and education online meeting rooms; Upgrade AV meeting rooms to hybrid meeting rooms; Any solution with flexible connection of multiple USB hosts and local or remote space peripherals. Controllable switching of online-session USB host participants and space-deployed local and remote visual (such as camera) and audible (such as microphones or headsets) USB peripherals, allows collaborative online meeting and smooth content sharing operation among online meeting participants. Integrated dual-link transmitters for USB and LAN signals extension with 2-way power providing over extended-reach CAT twisted pair copper infrastructures. The locally selected USB host is auto-connected to remotely connected USB devices, employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication

Hosts2 USB 3.2 & PD 3.0 Hosts: On USB type-C female connectors; 2 USB 3.2 Hosts: On USB-B female connectors
Devices3 USB 3.2 Devices: On USB-A female connectors; 1 USB 3.2 Device: On a USB type-C female connector
Inputs1 Stereo Analog Balanced Audio: On a 5-pin terminal block for audio extension
Outputs2 CAT: On an RJ-45 female connector for extension line
Ports1 PoE-accepting Ethernet: On an RJ-45 female connector for LAN connection and extension over CAT links; 1 RS-232: On a 3-pin terminal block; 2 GPIO: On a 2-pin terminal block
USB FeaturesUSB 3.2 Data Rate: Up to 10Gbps; Integrated USB Hubs: 2 [device 1 & 2 ports] or 1 [other device ports]; Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1
Extended USBData Rate: Up to 480Mbps; Transmitted Data Bandwidth: Up to 300Mbps; Standards Compliance: 2.0 and 1.1 USB
Extension LineReach: Up to 100m (330ft); Reach: Note: When using Kramer cables
Extended EthernetData Rate: Up to 100Mbps
