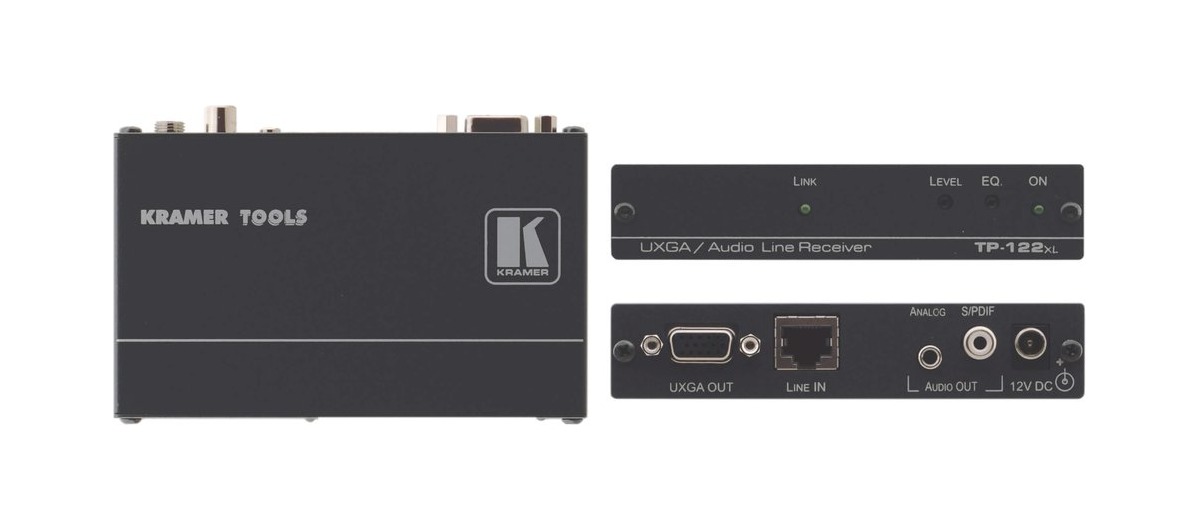

Kramer TP-122xl Computer Graphics Video & Stereo Audio over Twisted Pair Receiver
The TP-122xl is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the twisted pair input signal to WUXGA video, unbalanced stereo and S/PDIF audio signals. Max. Resolution - WUXGA & 1080p. HDTV Compatible. Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments. System Range - More than 250m (more than 820ft). Level (Gain) and Equalization (Peaking) Adjustment. Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5. Power Connect System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.
| INPUTS | 1 twisted pair on an RJ-45 connector |
|---|---|
| OUTPUT | 1 VGA on a 15-pin HD connector; 1 unbalanced stereo audio on a 3.5mm mini jack |
| RESOLUTION | Up to WUXGA and 1080p |
| AUDIO BANDWIDTH (-3dB) | 20Hz to 20kHz @-3dB |
| AUDIO S/N RATIO | 84dB |
| TOTAL GAIN | Audio: Analog/analog: 0dB; Analog/SPDIF: - 12dBFS |
| COUPLING | AC |
| THD+N | Audio:<0.02% |
