Kramer RCP-3232 Remote Panel for 3232HD-3G
The Kramer RCP-3232 is a remote control panel that duplicates every button and function of the 3232HD-3G matrix switcher's front panel. It gives the operator full 32x32 routing control from a desk or control position while the matrix stays in the rack room.

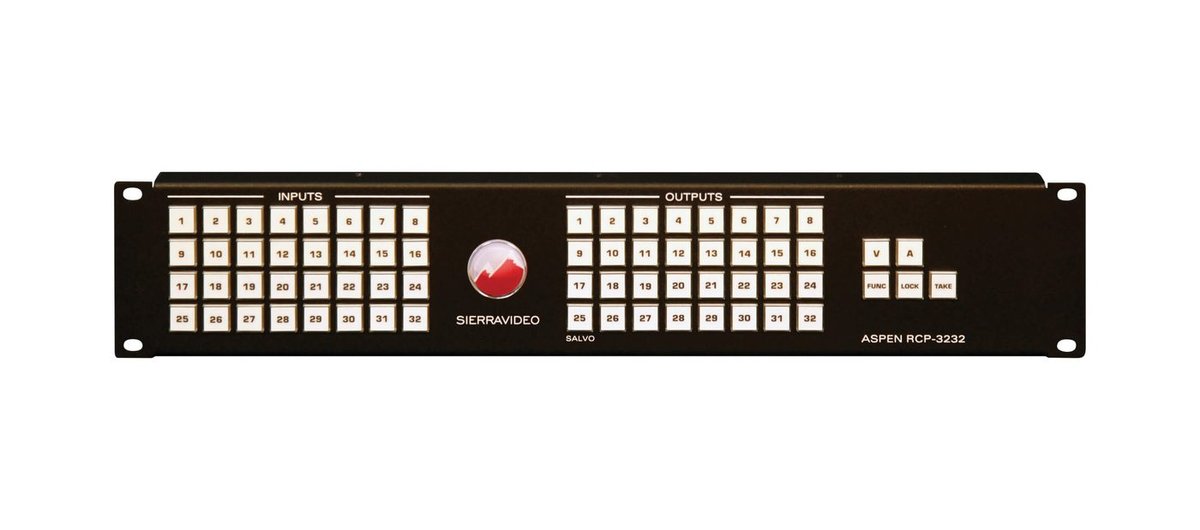

Its 69 back-lit, multi-color LED buttons cover 32 inputs, 32 outputs and 5 control functions. It connects directly to the switcher or over a network through 10/100 Base-T Ethernet, runs on 12 V DC, and fits a standard 19-inch rack in 2U. It draws 4.8 W maximum and weighs 1.2 kg.
| OPERATING TEMPERATURE | 0-45C |
|---|---|
| DIMENSIONS | 3.5" (89mm) x 19" (483mm) x 1.25" (32mm) |
| WEIGHT | 2.6lbs (1.2kg) |
| AC INPUT RANGE | 100-240V, 50-60Hz |
| MAX AC POWER | 4.8W |
| ETHERNET (1) | 10/100 Base-T (RJ-45) |
| Buttons | 69 back-lit multi-color LED (32 input, 32 output, 5 control) |
| Rack Size | 2U |
