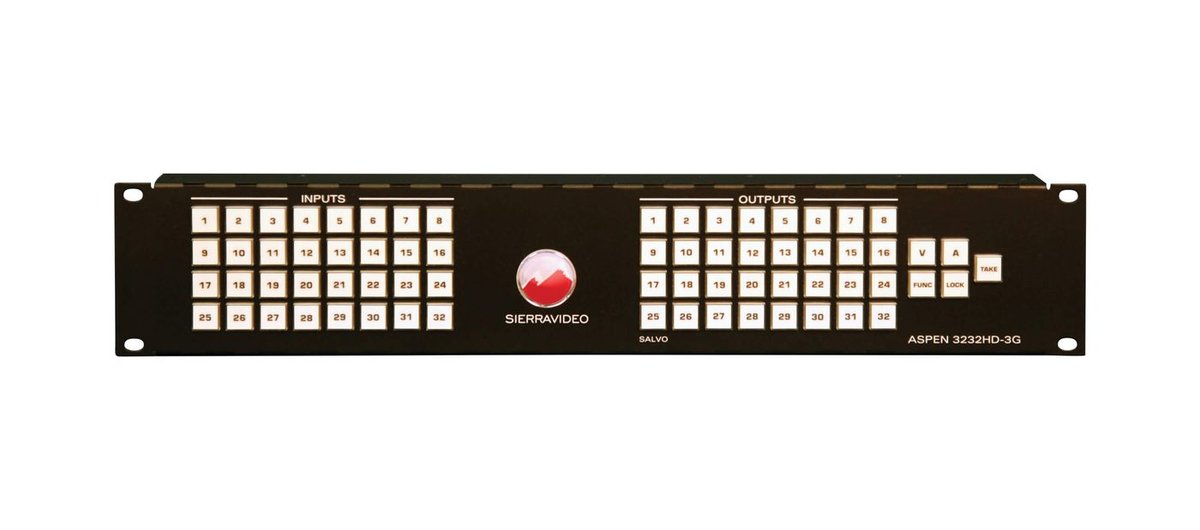

Kramer Aspen 3232HD-3G 32x32 3G-SDI Matrix Router

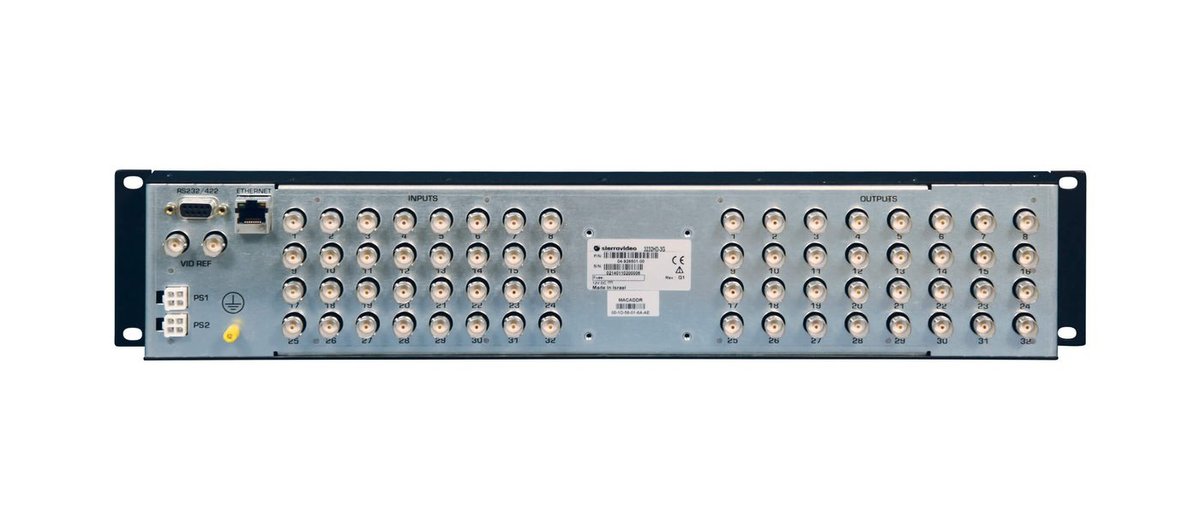

The Kramer Aspen 3232HD-3G is a 32x32 routing matrix for SDI signals up to 3G, built on the Sierra Video Aspen platform for control rooms and broadcast facilities that need to route many sources to many destinations without compromise. Every input and output runs on a 75 ohm BNC connector, and onboard equalization and re-clocking rebuild the digital signal so it can travel long cable runs cleanly.

Control runs over 10/100 Ethernet with embedded web pages or RS-232/422 serial, and the router supports salvo switching and ANC data pass-through (embedded audio, teletext, time code). A 2U, half-rack-depth chassis keeps it compact for a routing rack, and the RCP-3232 remote panel and RPS-16/32 redundant power supply are available as companion accessories.

Inputs	32 3G-SDI, on 75 ohm BNC connectors
Outputs	32 3G-SDI, on 75 ohm BNC connectors
Control Ports	10/100 Base-T Ethernet (RJ-45), RS-232/422 (9-pin D-sub)
Signal Standards	3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), SDI (SMPTE 259M-C/344M), DVB-ASI
ANC Data	Embedded audio, teletext, time code pass-through
Power	100-240V AC, 50-60Hz, 18W consumption
Dimensions	19 in x 2 in x 2U (48.26 x 5.08 x 8.89 cm) W, D, H
Weight	2.7 kg / 6 lb approx.
