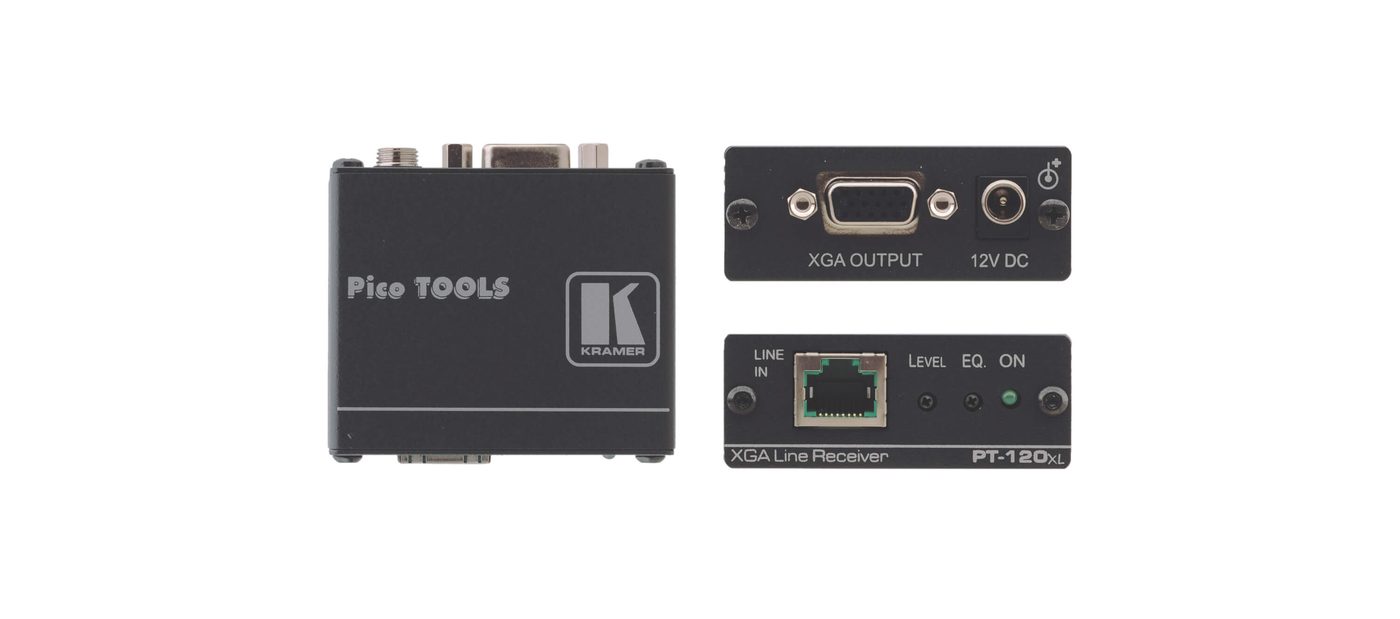

Kramer PT-120XL Computer Graphics Video over Twisted Pair Receiver with EDID
The Kramer PT-120xl is the receiver for Kramer's extended-range twisted-pair computer graphics system. It converts a twisted-pair signal from a WP-110, PT-110xl or other compatible Kramer transmitter back to VGA/UXGA on a 15-pin HD connector, at up to WUXGA and 1080p over as much as 250 m (820 ft).
Level and EQ controls compensate for the cable run, and it works over UTP or STP such as CAT 5. With Power Connect, one supply powers both ends within 150 ft (50 m). Paired with the PT-110xl, S/N is better than 70 dB. It runs on 12 V DC and includes a power supply.
| Max. Resolution | WUXGA & 1080p |
|---|---|
| Range | Up to 250m (820ft) paired with a PT-110xl transmitter |
| Compatible Transmitter | PT-110xl |
| Power | Power Connect System - single connection powers both ends within 150ft (50m) |
| Cable | CAT 5/6 twisted pair |
| Function | Receiver |
| Input | 1 RJ-45 connector |
| Output | 1 VGA/UXGA on a 15-pin HD connector |
| Controls | Level and EQ |
