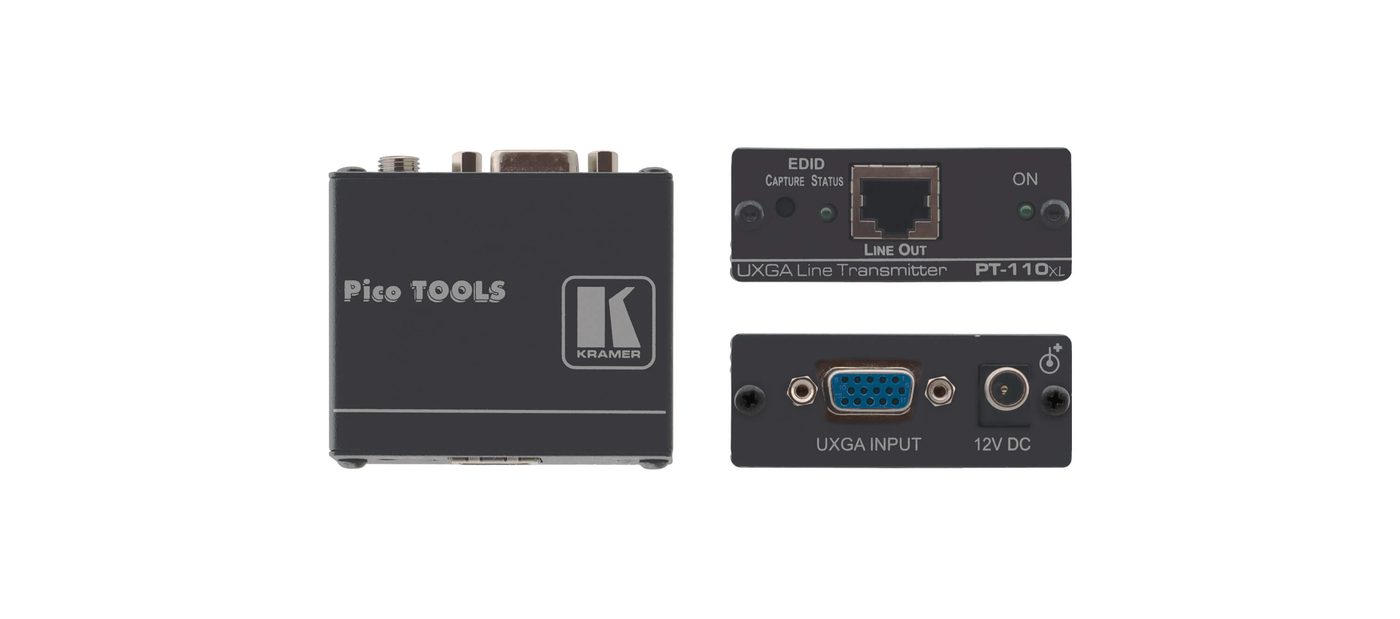

Kramer PT-110XL Computer Graphics Video over Twisted Pair Transmitter with EDID

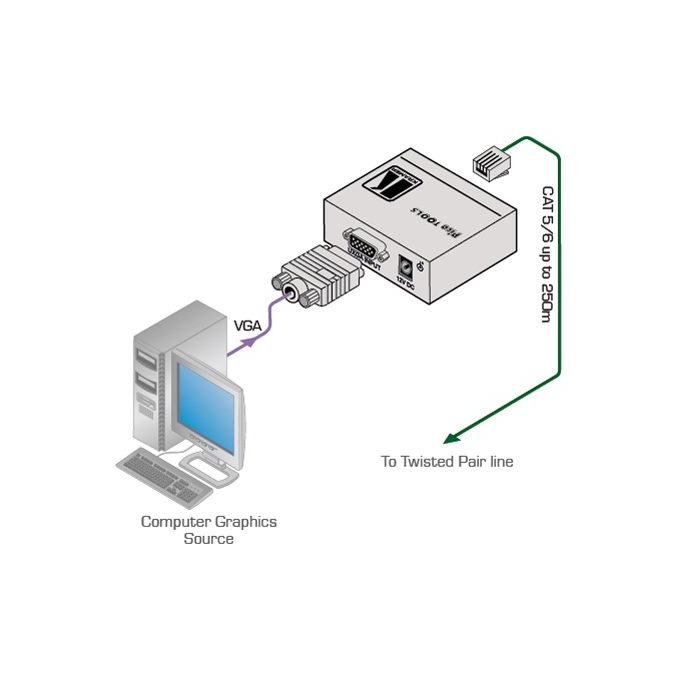

The Kramer PT-110xl is an extended-range transmitter that sends a VGA/UXGA computer graphics signal over a single CAT 5/6 cable to a PT-120xl, TP-122xl or TP-126xl receiver, up to 250 m (820 ft). It handles up to WUXGA and 1080p and is HDTV compatible.
It captures and stores the EDID from the display so the source outputs the right resolution. Kramer's Power Connect system powers both units from one supply when they are within 150 ft (50 m). Noise immunity is increased against spikes and interference, and S/N is better than 70 dB with the PT-120xl. It runs on 12 V DC and includes a power supply.
| Max. Resolution | WUXGA & 1080p |
|---|---|
| Range | Up to 250m (820ft) with Kramer twisted-pair XL receivers |
| Compatible Receivers | PT-120xl, TP-122xl, TP-126xl |
| Power | Power Connect System - single connection powers both ends within 150ft (50m) |
| EDID | Captures and stores the display EDID |
| Cable | CAT 5/6 twisted pair |
| Input | 1 VGA/UXGA on a 15-pin HD connector |
| Output | 1 twisted pair on an RJ-45 connector |
| S/N Ratio | Better than 70dB (with PT-120xl) |
