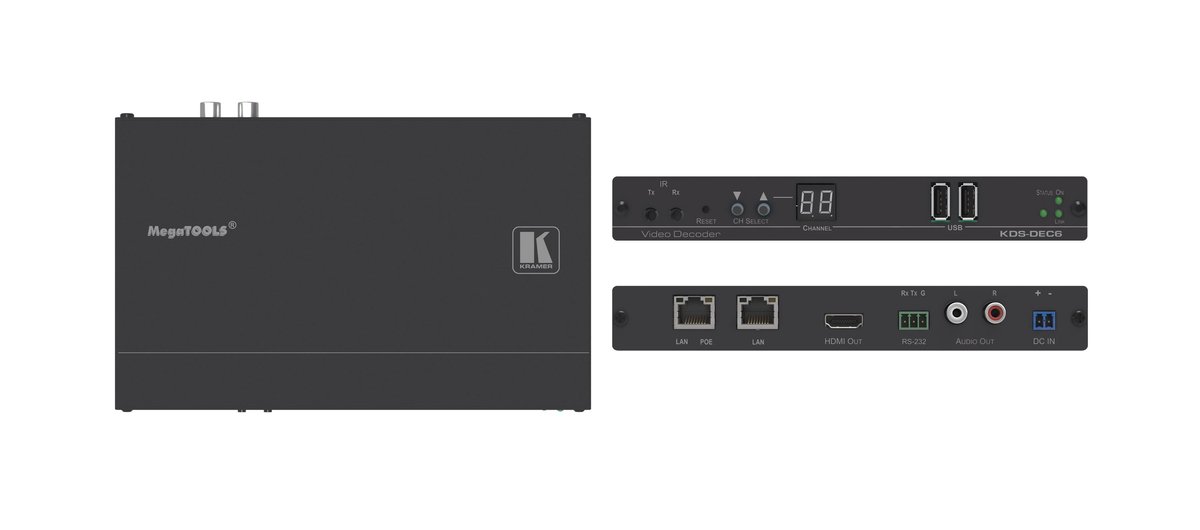

Kramer KDS-DEC6 4K60 4:2:0 HDCP 2.2 Video Decoder

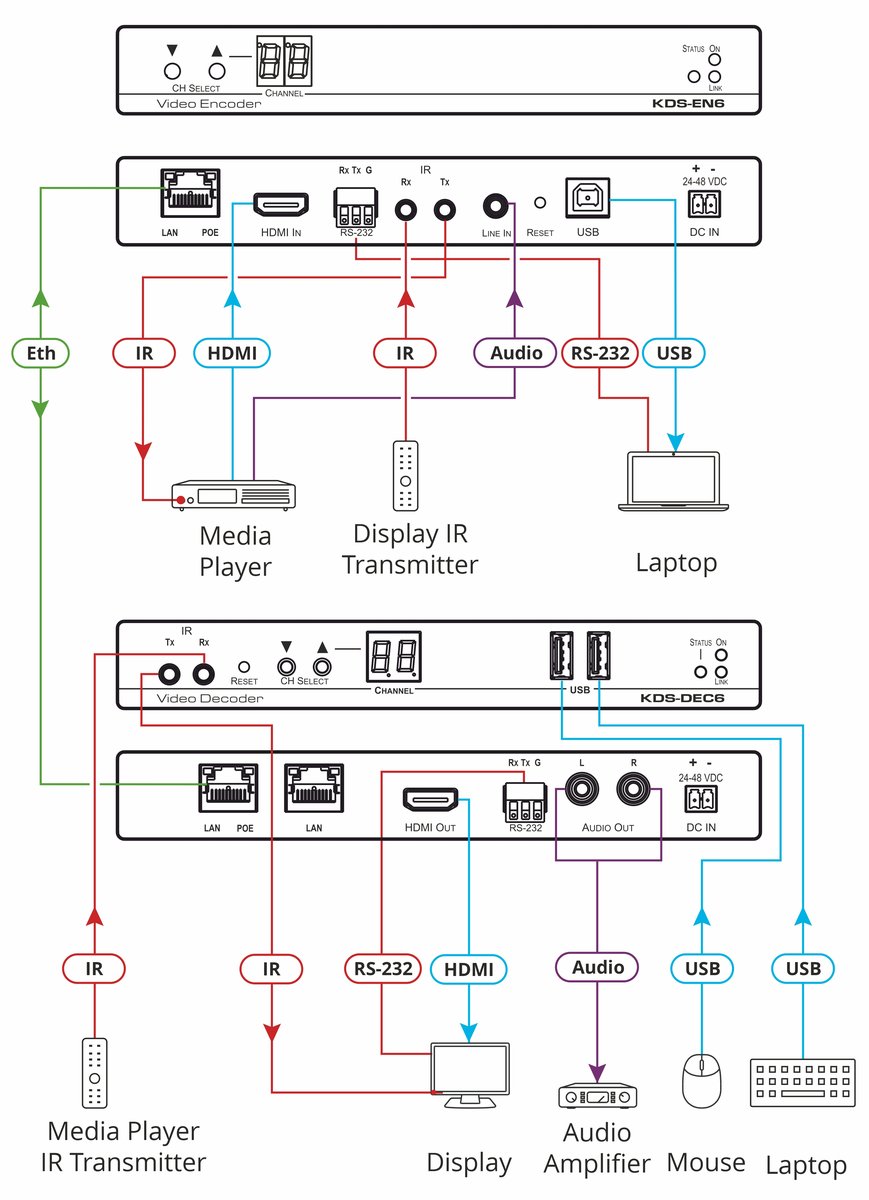

The Kramer KDS-DEC6 is the decoder half of Kramer's KDS-6 AV-over-IP system. It receives a JPEG 2000 stream over a standard 1G network and outputs 4K@60Hz 4:2:0 HDMI with HDCP 2.2, in unicast point-to-point or multicast to many screens. Alongside the video, it carries IR, RS-232 and USB over IP, so a display's control and a remote keyboard and mouse travel on the same network cable, and it can place the picture on a video wall of up to 16x16 screens.
Audio comes out on HDMI and on left and right RCA, with 7.1 PCM, Dolby TrueHD and DTS-HD Master Audio support. A second RJ-45 daisy-chains the network to the next device. It powers from PoE or an external supply (not included), and a front 7-segment display with up and down buttons picks the channel. Setup and control run through an on-screen menu, an embedded web UI or Kramer's open API.
| Inputs | 1 LAN+ |
|---|---|
| Outputs | 1 4K60 4:2:0; 1 RS-232; 1 IR Tx; 1 IR Rx; 1 Stereo (U); 2 USB-A; 1 LAN |
| Supports | HDMI |
| Supports | Ethernet - RJ-45 |
| Supports | 4K/60 UHD (4:2:0) |
| Supports | HDCP 2.2 Compatible |
| Streaming | Unicast and multicast via RTSP |
| Compression | JPEG 2000 |
| Max. Resolution | 4096x2160@60Hz, 3840x2160@60Hz |
| Bit Rates | 4K peak 850Mbps, 4K average 350Mbps, 1080p average 250Mbps |
| HDCP | 1.4 and 2.2 |
| Network | 10/100/1000, 1G multicast, IGMP snooping, Layer 2 |
| Video Wall | Up to 16x16 screens |
| Power | PoE or external power supply (not included) |
