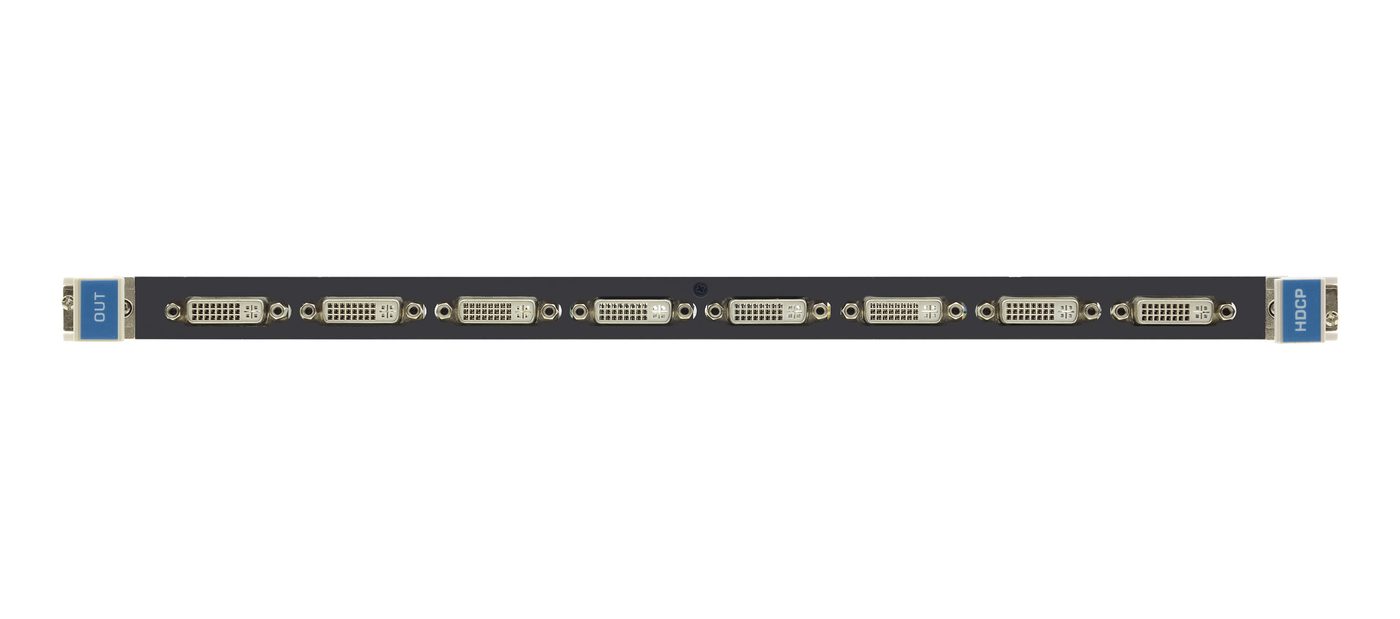

Kramer HDCP-OUT8-F64 8-Channel DVI (HDCP) Output Card

The Kramer HDCP-OUT8-F64 is a 8-Channel DVI (HDCP) output card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 8 DVI-D on DVI Molex 24-pin (F) connectors (outputs); 2.25Gbps (bandwidth per channel); 6.75Gbps (total bandwidth). Also: 23W (power consumption); Supported (3d pass through); 0 deg to +40 degC (32 deg to 104 degF) (operating temperature); -40 deg to +70 degC (-40 deg to 158 degF) (storage temperature); 10% to 90%, RHL non-condensing (humidity).

OUTPUTS	8 DVI-D on DVI Molex 24-pin (F) connectors
BANDWIDTH PER CHANNEL	2.25Gbps
TOTAL BANDWIDTH	6.75Gbps
Power Consumption	23W
3D PASS THROUGH	Supported
OPERATING TEMPERATURE	0 deg to +40 degC (32 deg to 104 degF)
STORAGE TEMPERATURE	-40 deg to +70 degC (-40 deg to 158 degF)
HUMIDITY	10% to 90%, RHL non-condensing
