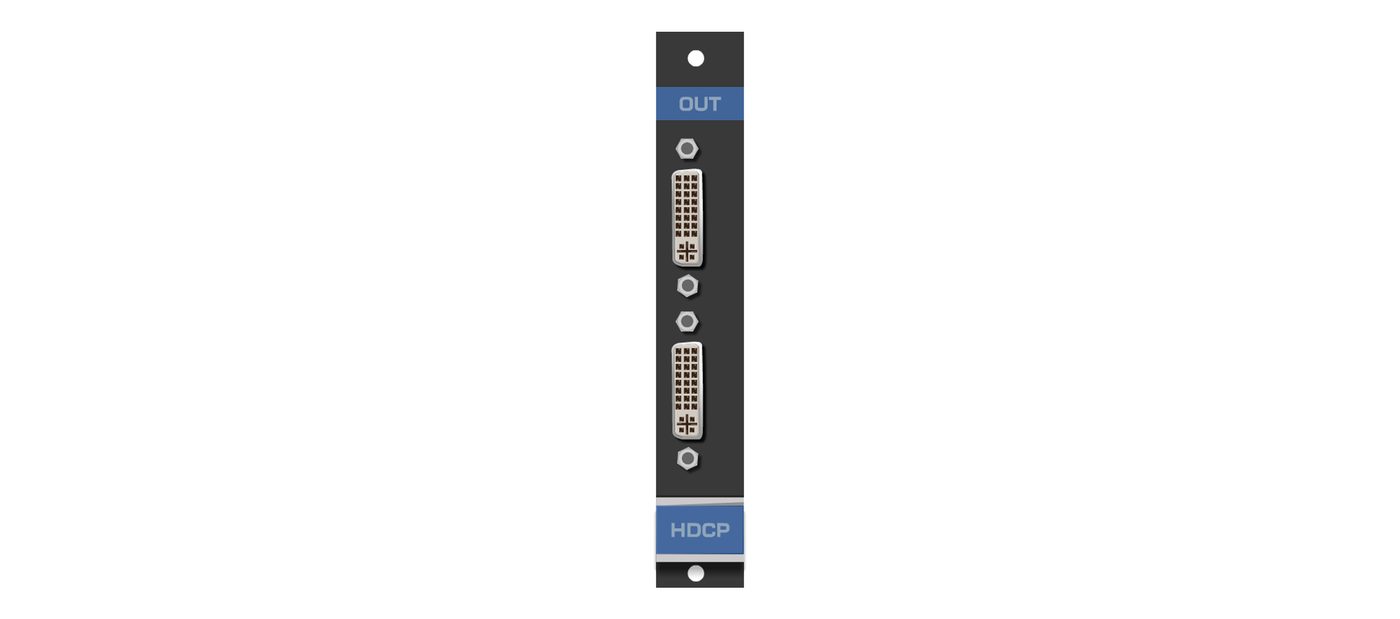

Kramer HDCP-OUT2-F16 2-Channel DVI (HDCP) Output Card
The Kramer HDCP-OUT2-F16 is a two-channel HDMI over DVI (HDCP) output card for the VS-1616 Series modular multi-format digital matrix switchers. It sends two routed HDMI/HDCP signals out of the chassis on DVI-D Molex 24-pin connectors. It is HDCP compliant, supports HDMI signals over its DVI connectors, and passes 3D, at up to 6.75 Gbps in total (2.25 Gbps per graphic channel).
The card draws 5 W, operates from 0 to 40 C, measures 19 x 13 x 2 cm and weighs about 0.2 kg. It is CE and FCC compliant, and pairs with the HDCP-IN2-F16 input card in the same frame.
| PORTS | 2 DVI-D on DVI Molex 24-pin (F) connectors |
|---|---|
| BANDWIDTH PER CHANNEL | 2.25Gbps |
| TOTAL BANDWIDTH | 6.75Gbps |
| 3D PASS THROUGH | Supported |
| POWER CONSUMPTION | 5W |
| OPERATING TEMPERATURE | 0 deg to +40 degC (32 deg to 104 degF) |
| STORAGE TEMPERATURE | -40 deg to +70 degC (-40 deg to 158 degF) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| Chassis | VS-1616 Series |
| Standards | HDCP, |
| Product Dimensions | 19.00cm x 13.00cm x 2.00cm |
