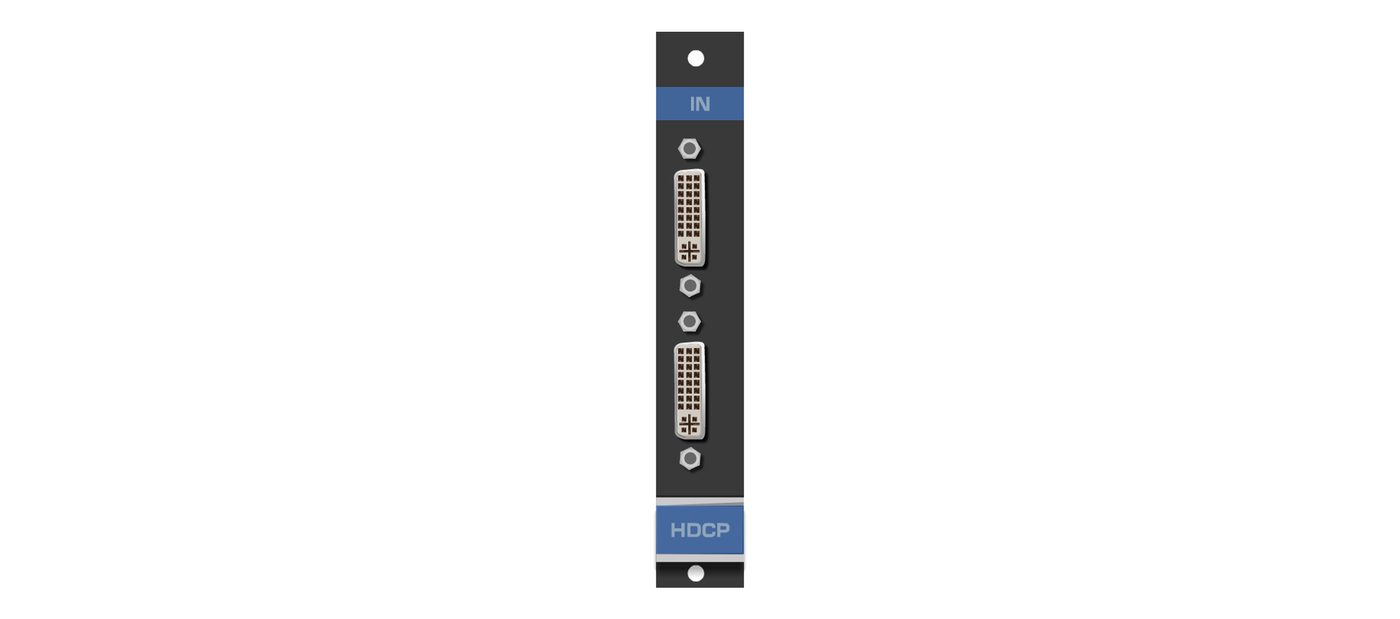

Kramer HDCP-IN2-F16 2-Channel DVI (HDCP) Input Card

The Kramer HDCP-IN2-F16 is a 2-Channel DVI (HDCP) input card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 2 DVI-D on DVI Molex 24-pin (F) connectors (ports); 2.25Gbps (bandwidth per channel); 6.75Gbps (total bandwidth). Also: Supported (3d pass through); 5W (power consumption); 0 deg to +40 degC (32 deg to 104 degF) (operating temperature); -40 deg to +70 degC (-40 deg to 158 degF) (storage temperature); 10% to 90%, RHL non-condensing (humidity).

PORTS	2 DVI-D on DVI Molex 24-pin (F) connectors
BANDWIDTH PER CHANNEL	2.25Gbps
TOTAL BANDWIDTH	6.75Gbps
3D PASS THROUGH	Supported
POWER CONSUMPTION	5W
OPERATING TEMPERATURE	0 deg to +40 degC (32 deg to 104 degF)
STORAGE TEMPERATURE	-40 deg to +70 degC (-40 deg to 158 degF)
HUMIDITY	10% to 90%, RHL non-condensing
