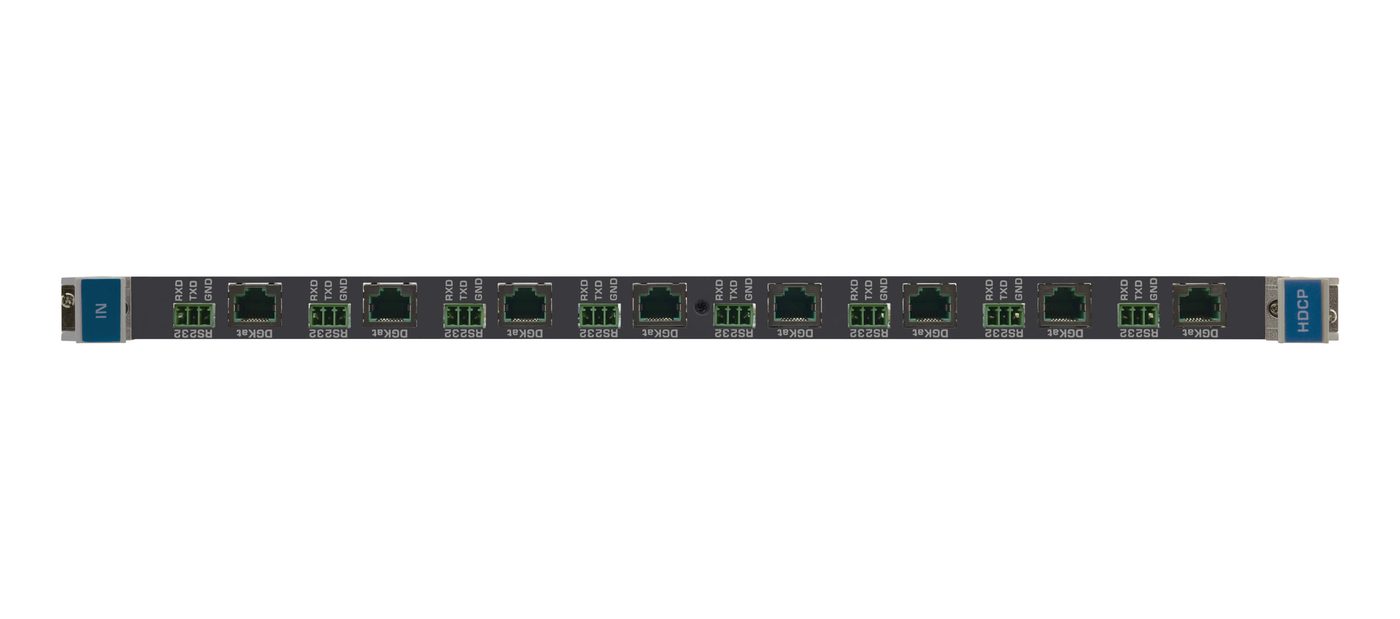

Kramer DGKat-IN8-F64 8-Input HDMI & RS-232 over DGKat Card

The Kramer DGKat-IN8-F64 is a 8-Input HDMI & RS-232 over dGKat card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 8 TP ports on RJ-45 connectors, 8 serial ports on 3-pin terminal blocks (inputs); Video - 1.65Gbps; Serial Data - 19200 (bandwidth per channel); Video - 4.95Gbps; Serial Data - 19200 (total bandwidth). Also: 90m (300ft) - 1080i@60Hz (maximum range); 45W (power consumption); Supported (3d pass through); HDCP 1.4, HDMI 1.3a (standards compliance); 0 deg to +40 degC (32 deg to 104 degF) (operating temperature).

INPUTS	8 TP ports on RJ-45 connectors, 8 serial ports on 3-pin terminal blocks
BANDWIDTH PER CHANNEL	Video - 1.65Gbps; Serial Data - 19200
TOTAL BANDWIDTH	Video - 4.95Gbps; Serial Data - 19200
MAXIMUM RANGE	90m (300ft) - 1080i@60Hz
Power Consumption	45W
3D PASS THROUGH	Supported
STANDARDS COMPLIANCE	HDCP 1.4, HDMI 1.3a
OPERATING TEMPERATURE	0 deg to +40 degC (32 deg to 104 degF)
